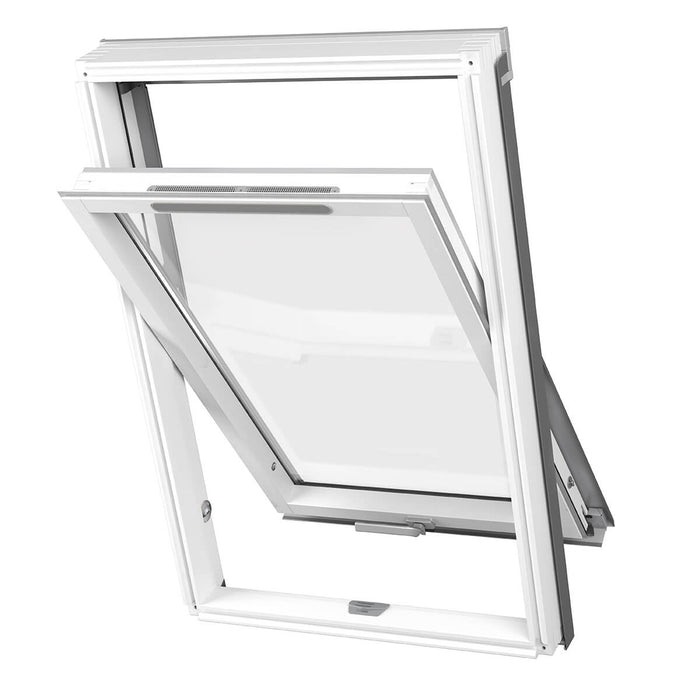

Dakea Secure White Centre Pivot Roof Window - KAQ B1010Q

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More
Dakea Secure White Centre Pivot Roof Window - KAQ B1010Q
Features & Benefits
APPLICABLE
- In public and residential buildings
- In heated, inhabited rooms
- In roof pitch range of 15°-90°
- Suitable on all common roofing's with proper flashing
FEATURES
- Centre pivot roof window
- Class P4A security glazing (according to EN 356 harmonized European standard)
- Toughened external pane
- Laminated internal pane with 4 layers of tear resistant foil
- RC2 burglary resistance classification according to EN 1627 harmonized European standard
- Glued pane to the sash to disallow the pane dismantling
- Reinforced hinges
- Two discreet locks for increased security
- Two passive ventilation positions via handle
- Ventilation valve
- Extra welded sliding gasket
- Two Low-E coatings
- Easy installation
- 10 + 10 year guarantee
MATERIAL
- Kiln-dried laminated pine wood
- Timber from FSC certified forests
- Fungicide protection
- Double layer water based lacquer
COVER PARTS
- Aluminium, lacquered, grey colour (RAL 7043)
HINGE
- Reinforced pivot hinge
Technical Parameters (Pane)
Construction | 33.4-16-4H |
Thickness of glazing (mm) | 26 |
Low E |
|
Gas | Argon |
Toughened | |
Laminated | |
Ug (W/m2 K) | 1.0 |
Total solar energy transmittance | 0.52 |
Technical Parameters (Window)
Uw (W/m2 K) | 1.3 |
Water tightness | E1350 |
Air permeability | Class 4 |
Resistance to wind load | C4* |
Sound reduction | 34 (-1,-4) dB |
Ventilation valve |
* M8A, P8A, P10A, S8A: no performance data
