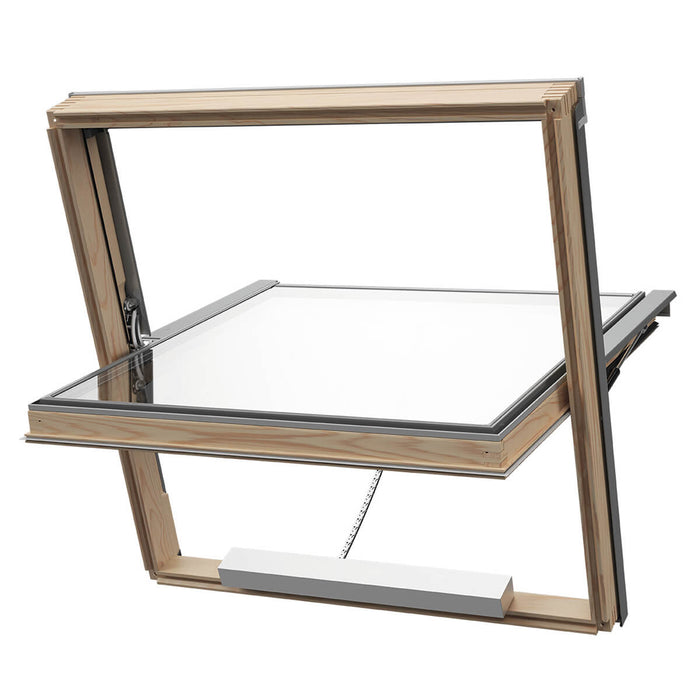

An image showing a Dakea SMOKE VENT ENERGY Roof Window - KAS B1600 S6A with a wood finish

Dakea Smoke Vent Energy Window for Sloped Roofs - KAS B1600

by Dakea
SKU DAK/KASB1600/M4A
Save 3% Save 2%
£1,010.00
£1,010.00 - £1,440.00
£1,010.00
£990.00
£990.00 - £1,410.00
£990.00
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Earn 0 points on this purchase.

Learn more

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More

Dakea Smoke Vent Energy Window for Sloped Roofs - KAS B1600

Dakea’s Smoke Vent is an automatic smoke ventilation window for sloping roofs. High quality – to the EN 12101-2 European standard – this smoke vent is ideal for enhancing the safety features of a building and protecting occupants in the event of a fire.

Features & Benefits

APPLICABLE

Window

  • In common access areas of pitched roof buildings, such as stairwells, offices, etc.
  • In roof pitch range of 15°-60°
  • Suitable on all common roofing with proper flashing

Wind Deflector

  • Warehouses, assembly plants
  • For construction projects in which an aerodynamic opening area is required.
  • Extra side element with foam for high profile roofing materials

FEATURES

  • Complete smoke-ventilation system.
  • Smoke ventilation roof winodw (KAS) tested and certified according to EN 12101-2
  • In case of fire opens to maximum position within 60 seconds
  • Centre pivot wooden roof window
  • Preinstalled opening motor
  • Gas strut assisted opening
  • Toughened outer glass
  • Laminated internal safety glass
  • Double gasket system between frame and sash
  • Double Low-e coating
  • Easy installation
  • 10+10 year guarantee
  • Optional wall switch available for comfort ventilation
  • Optional rain sensor available for comfort ventilation
  • Cannot be used for roof exit or escape purposes!

MATERIAL

Window

  • Kiln-dried laminated pine wood
  • Timber from FSC certified forests
  • Fungicide protection
  • Water based lacquer

Wind Deflector

  • Steel
  • Powder coated grey, RAL7043

COVER PARTS

  • Aluminium, lacquered, grey colour (RAL 7043)

HINGE

  • Pivot hinge

Technical Parameters (Pane)


Construction 33.2-10-3HS-10-4H
Thickness of glazing (mm) 33
Low E

Gas Argon
Toughened
Laminated
Ug ( W/m2K ) 0.81
Total solar energy transmittance 0.53

Technical Parameters (Window)

Uw ( W/m2K ) 1.1
Water tightness E1200
Air permeability Class 4
Resistance to wind load C4*
Sound reduction 36 (-1,-3) dB

* M8A, S8A, U8A: no performance data

Colour

Natural wood (KAS B1600)


Classification in Accordance with the Parameters of EN 12101-2 (KAS B1600)

Reliability (Re) Re 1000 + 10000
Snow load (SL) SL 1000**
Low Temperature (T) T (-15)
Wind load (WL) WL 3000***
Heat Exposure (B) B 300

** U8A size: SL 800, *** U8A size: WL 1500

Datasheets

KAS B1600 Technical Specification

Control System Accessories Technical Specification
