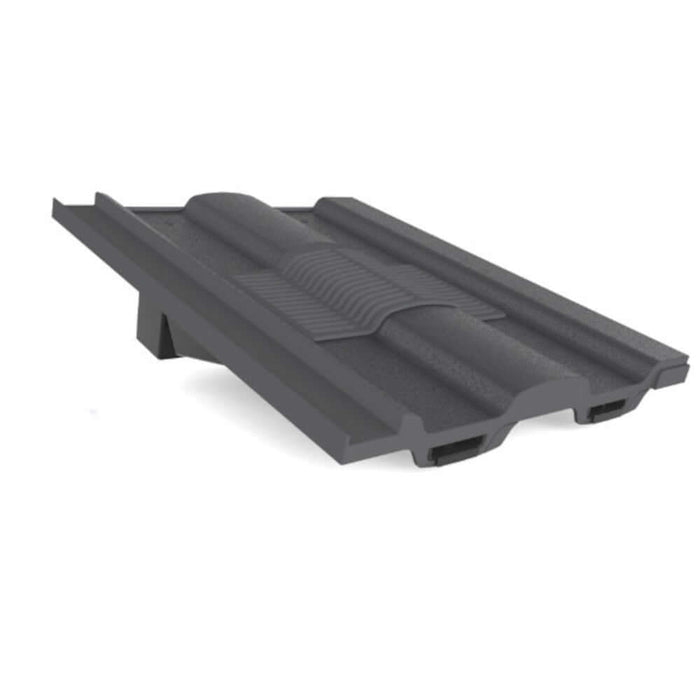

Manthorpe Castellated Tile Vent (GTV-CS)

Manthorpe Castellated Tile Vent (GTV-CS)

The Manthorpe Castellated Tile Vent is easy to install in place of a standard, square-top, concrete roof tile. The tile surface features an integral, louvred grille which feeds a large volume of air directly into the roof space. A carefully engineered chamber on the reverse of the vent diverts any incoming rainwater out through two internal channels onto the roof.

This item is compatible with the following manufacturers / tiles:

• Marley Ludlow Major.
• Sandtoft Lindum.
• Russell Cheviot.
• Lagan Square Top.
• Redland Renown (with vent modification).

This unobtrusive roof vent is simple to install and can be quickly adapted to operate as a mechanical extract or soil stack vent. Performance is impressive, with the unit delivering 10,000mm2 of fresh air directly to the roof space through a 48.25mm outlet. Rainwater ingress is effectively expelled through the tile’s polypropylene water channels. The low-profile, exterior grille keeps insects and debris out of the roof space. The vent is barely visible from the ground, making this an ideal ventilation option for a compact, modern build.

Features & Benefits:

• Provides effective, low-profile, inconspicuous ventilation.
• Simple installation and access without cutting rafters.
• Compatible with square-top, interlocking concrete tiles from most manufacturers.
• Handles low roof pitches down to 20 degrees.
• Long life expectancy.
• Manufacture: Injection moulded polypropylene rainwater and air outlets, uPVC top.
• Product Code: GTV-CS.
• Brand: Manthorpe.
• Size: 332mm x 418mm.
• Air Flow: 10,000mm2.
• Colour: Dark Brown, Slate Grey, Antique Red, and Terracotta.
• Weight: 1.06kg per tile.
• Standards: BS 5250, BS 5534, BS 490, BRE: prEN 15601, Building Regulations 2010 & NHBC Good Craftsmanship Guides.
• Recyclable.

Buyer's notes:

This Manthorpe Castellated Vent can be adapted for mechanical extraction or soil stack ventilation. Choose the option to add an adaptor and/or flexi-pipe.
