Dakea Better Energy Centre Pivot Roof Window
Online Only Item
This item is only available online and not instore. Please contact us if you require more information 01629 732988
Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More
20 Year Guarantee (10 + 10 Years)
Register online at www.dakea.net. It will increase your home value and give you an extra 10 years peace of mind.
FREE UNDERFELT FOIL COLLAR (RUC)
INSTALLED IN A PITCH OF BETWEEN 15 AND 90 DEGREES
THERMAL CONDUCTIVITY RATING: Uw 1.1 W/m²K

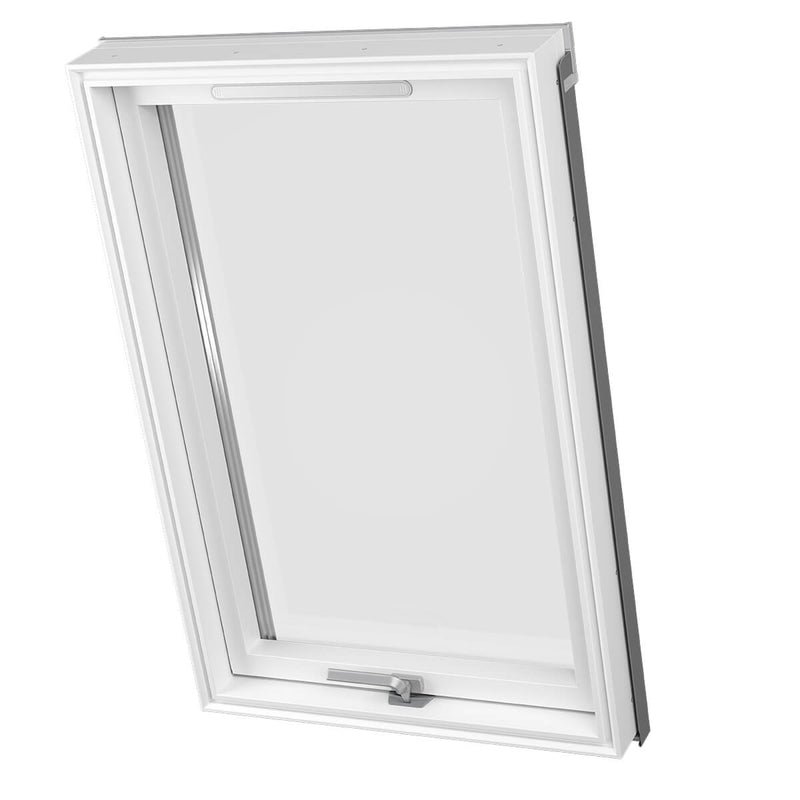

Dakea Better Energy Centre Pivot Roof Window
Better insulation and better moisture protection. The Better Energy PVC range features a three pane system to improve thermal efficiency. The PVC frame protects against damage from moisture. It’s an ideal roof window for kitchens and bathrooms.
Features & Benefits

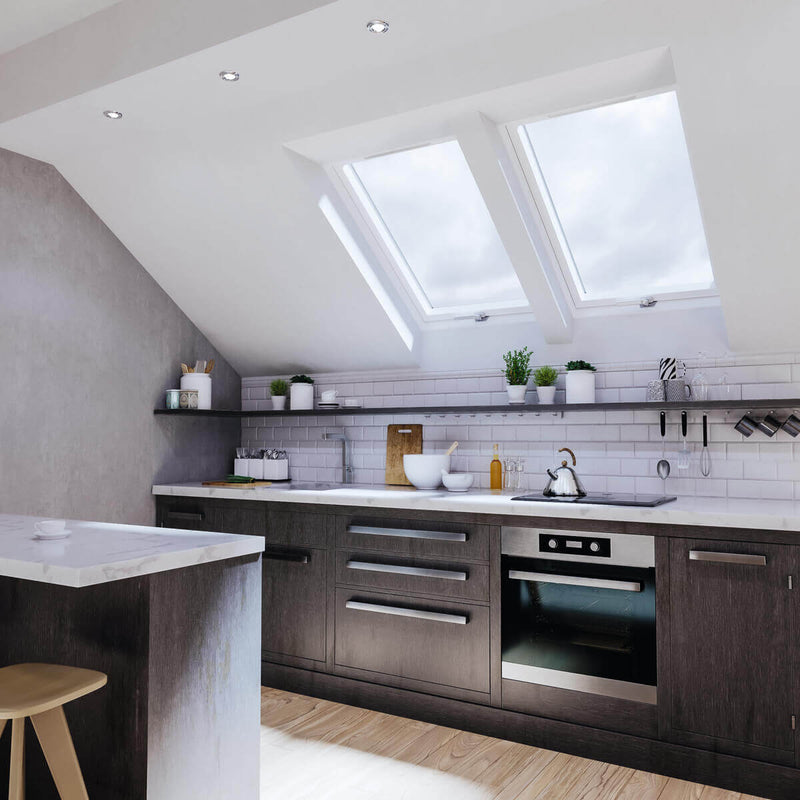

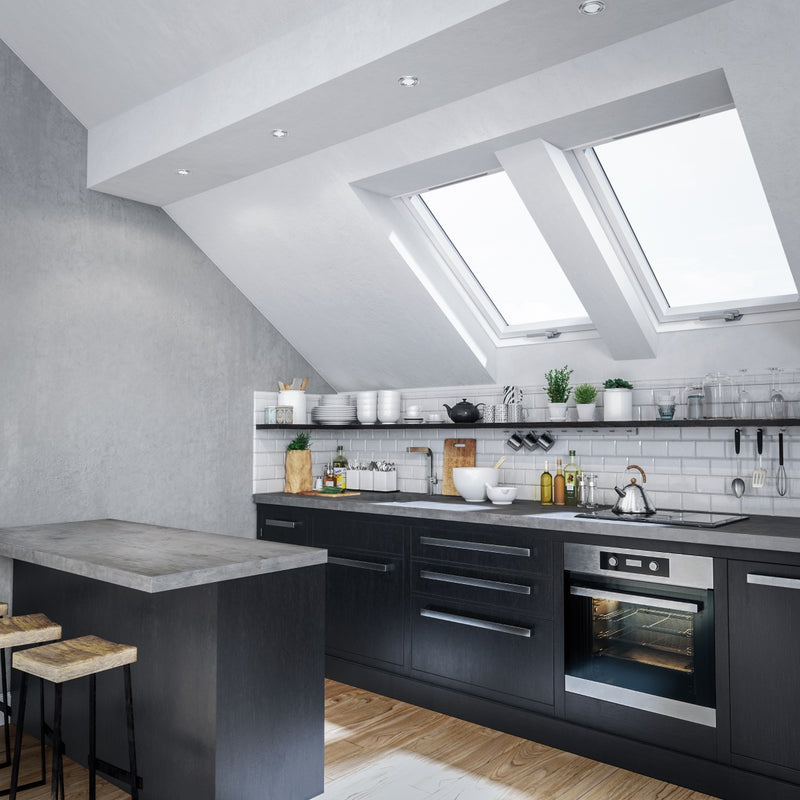

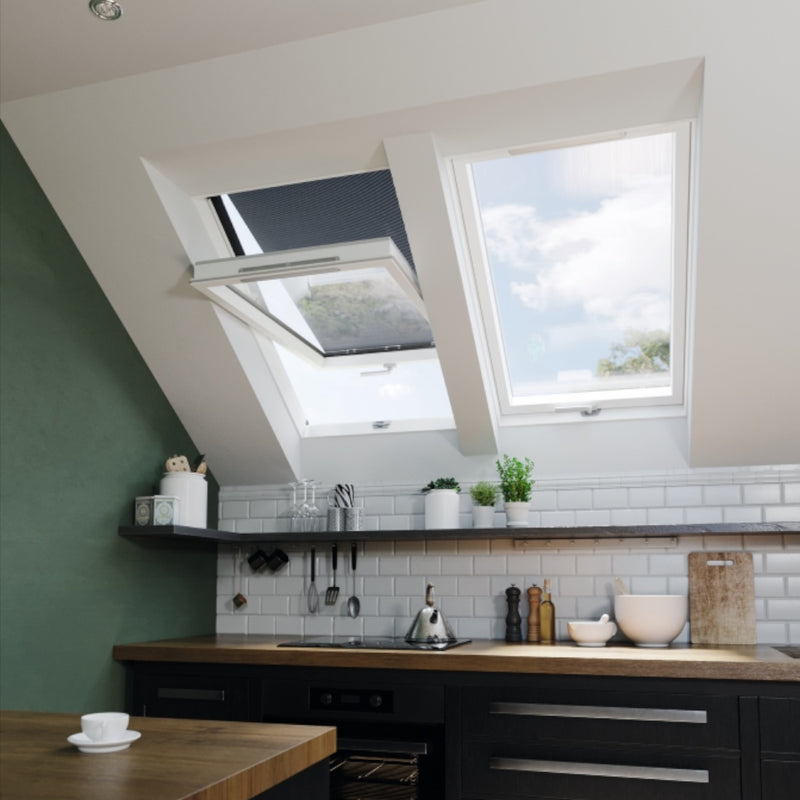

- Dakea Better Energy PVC is an ideal solution for rooms with high humidity, such as kitchens and bathrooms, as it has a high resistance to wet and dirt
- It is easy to clean and, compared to wooden roof windows, is much less exposed to mould. Unlike wooden surfaces, they do not require additional painting

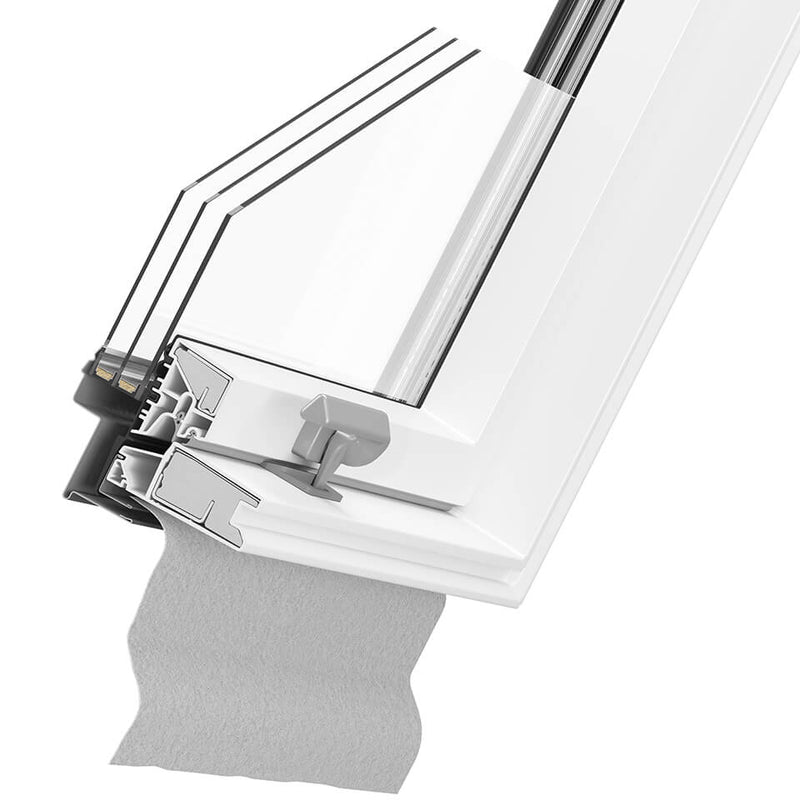

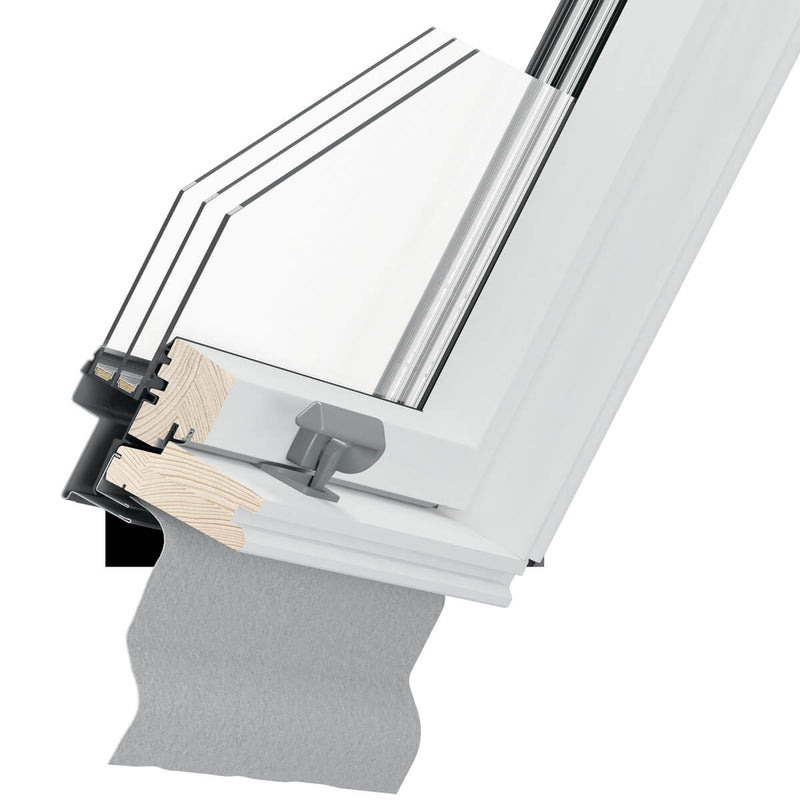

- Their two-chamber structure, filled with argon gas, provides better insulation, which means less heat loss in winter and a limited amount of heat getting inside in summer
- The three-pane windows have better U-value, both the glass itself and the window frame, which can reduce heating costs and thus reduce environmental pollution
- Energy efficiency: Uw = 1.1 W/m2K, triple-glazing / double-chamber package

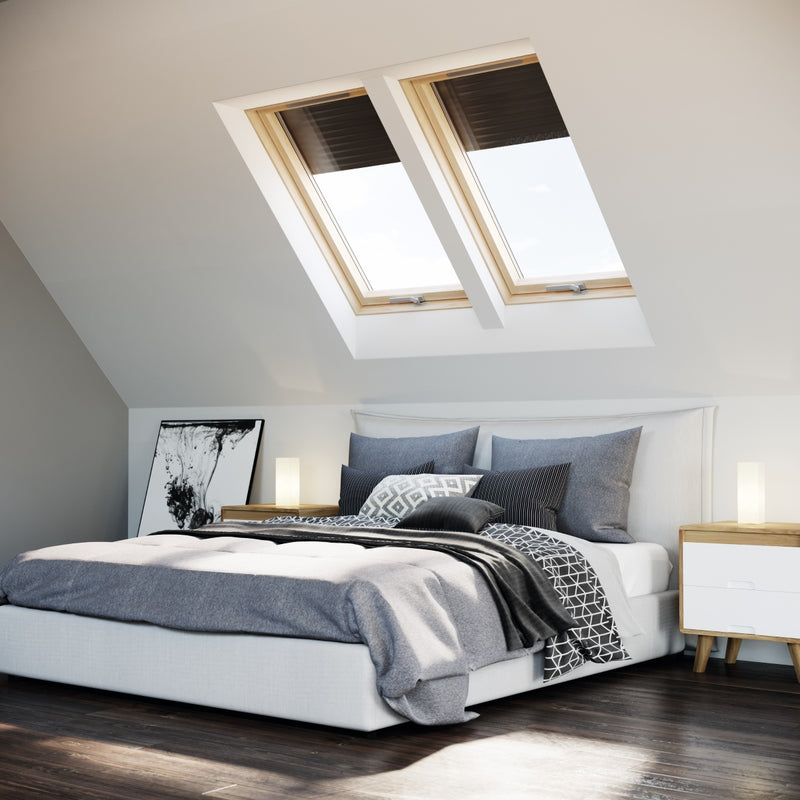

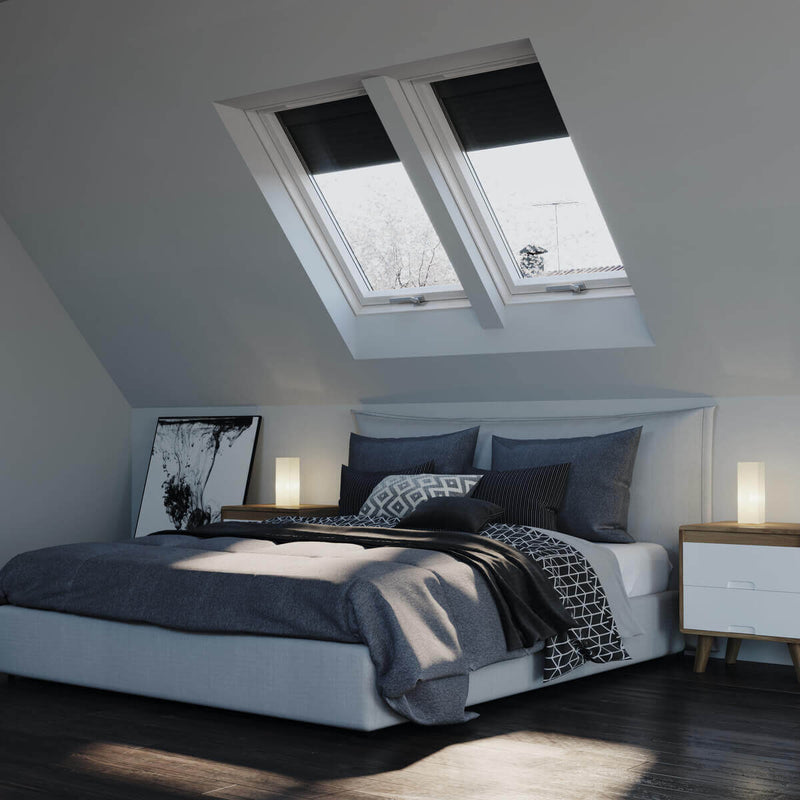

- We recommend Dakea Better Energy windows for rooms where better thermal comfort is required, e.g. living rooms and bedrooms, etc.
- Remember: Dakea Better Energy windows come with a free Dakea Quick Install (RUC) vapor barrier collar. The Quick Install flashing reduces installation time and ensures that the structure is properly sealed
- Dakea Better Energy roof windows can be installed in all roofing materials between a slope of 15 to 90 degrees. Original Dakea flashing is required to properly install windows.
Technical Parameters (Pane)
| Variant | 15 |
| Construction | 4 - 12 - 3HS - 12 - 3H |
| Thickness of Glazing (mm) | 34 |
| Low E | ✔️✔️ |
| Gas | Argon |
| Toughened | ✔️ |
| Laminated | |
| Ug (W/m²K) | 0.77 |
| Total Solar Energy Transmittance | 0.55 |
Technical Parameters (Window)
| Uw (W/m²K) | 1.1 |
| Water Tightness | E1350 |
| Air Permeability | Class 4 |
| Resistance to wind load | Class C4 |
| Sound Reduction (dB) | 33 (-1, -3) |

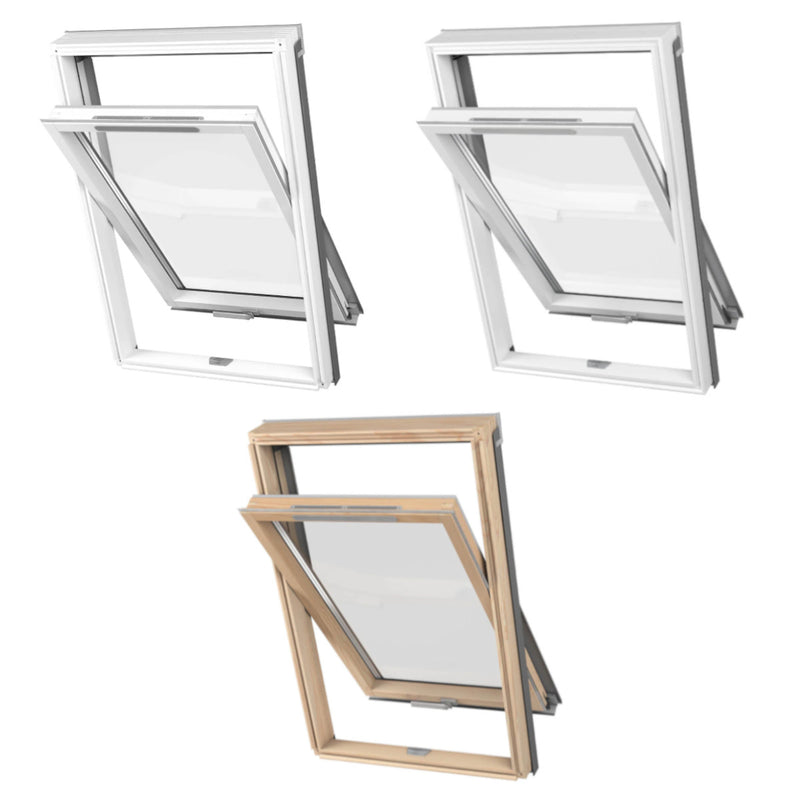

Colours

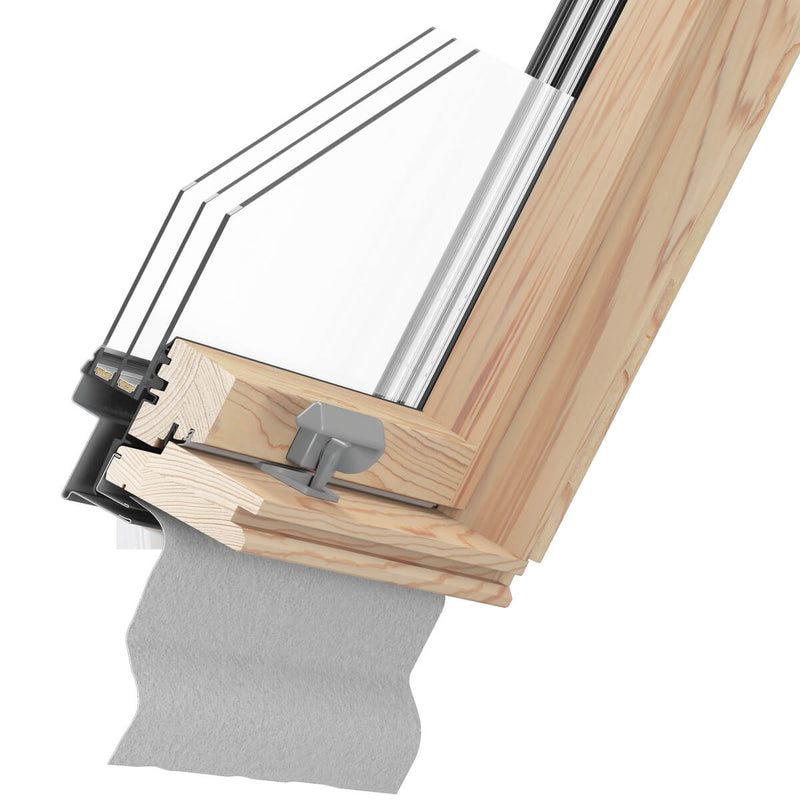

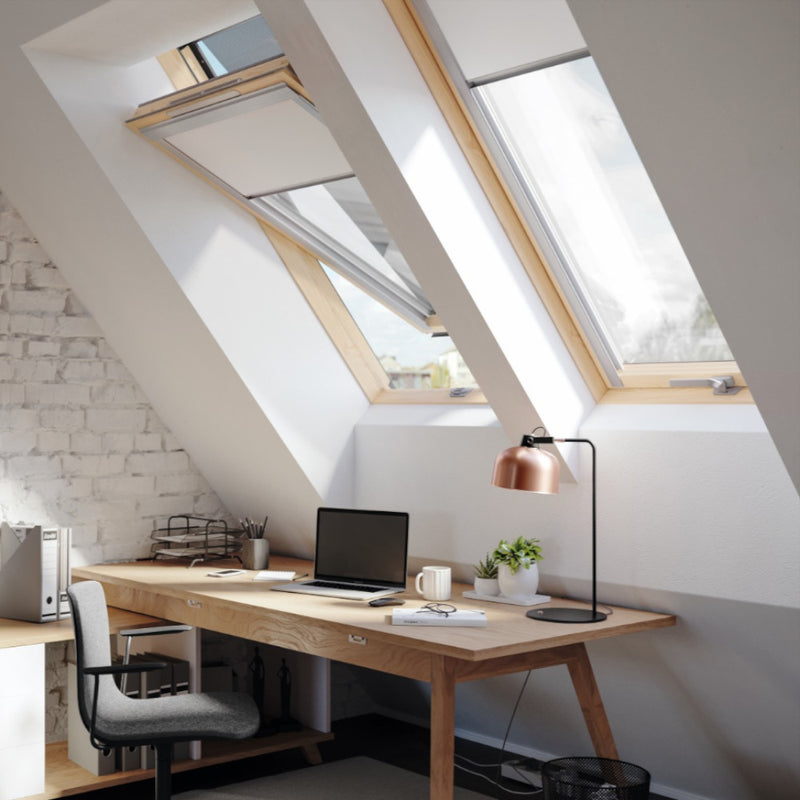

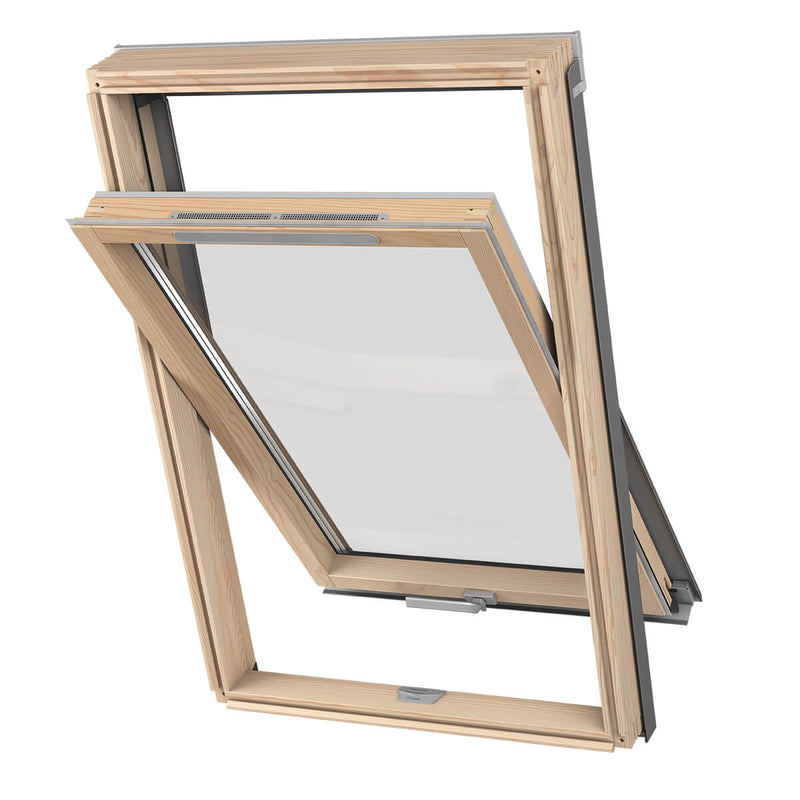

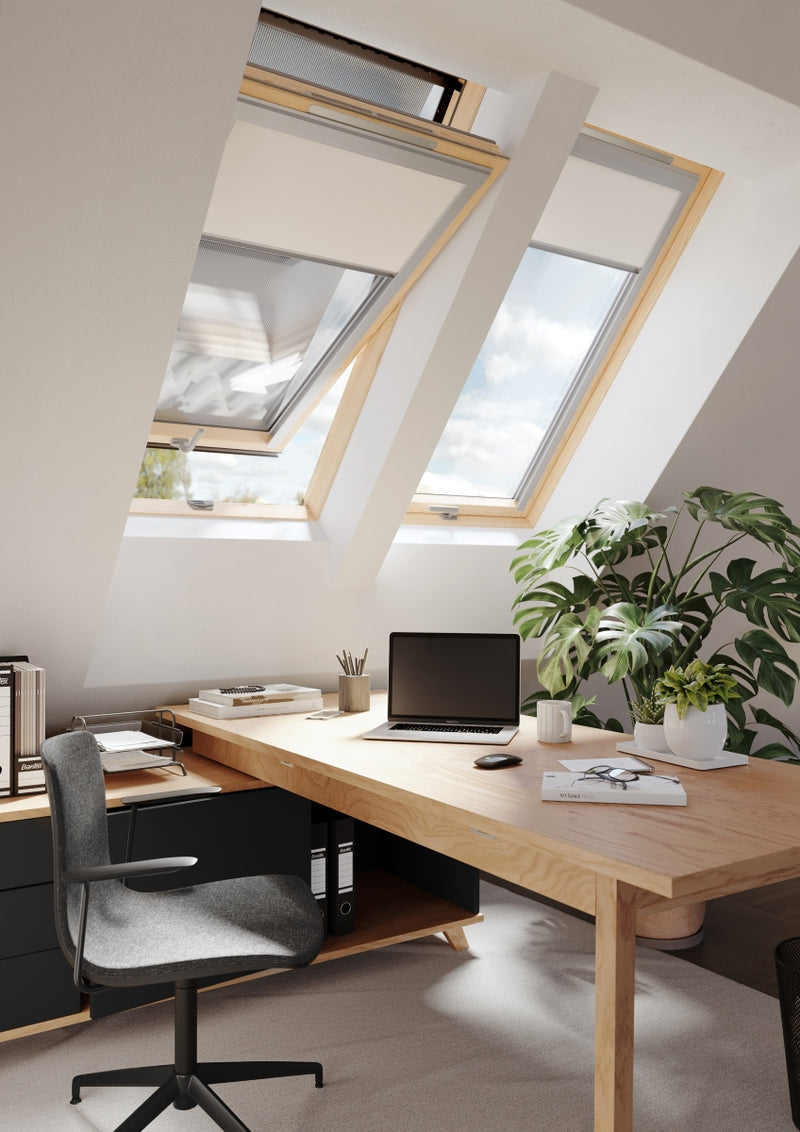

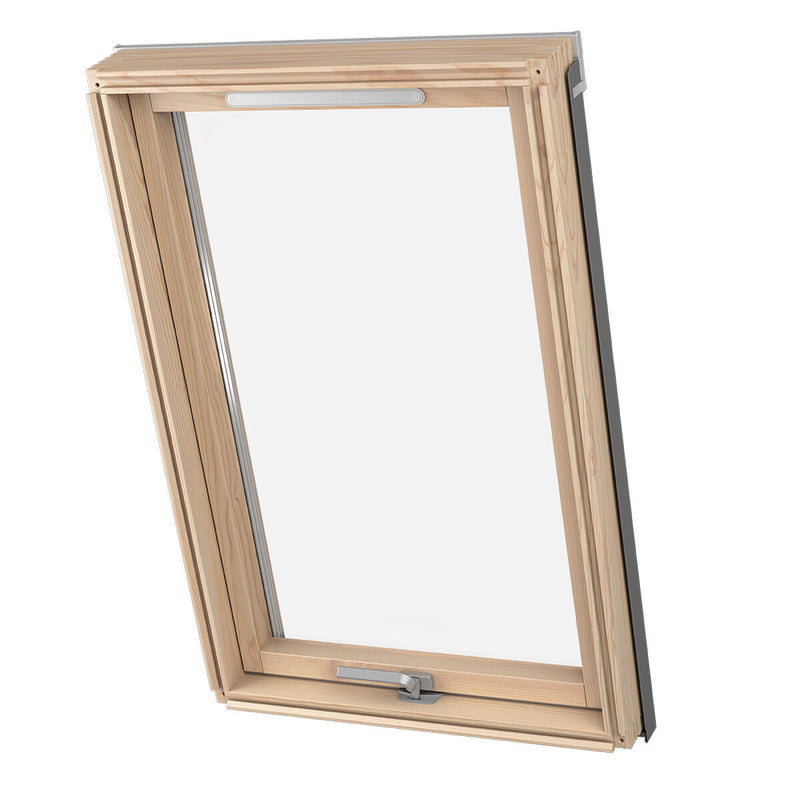

Pine - KAV B1500

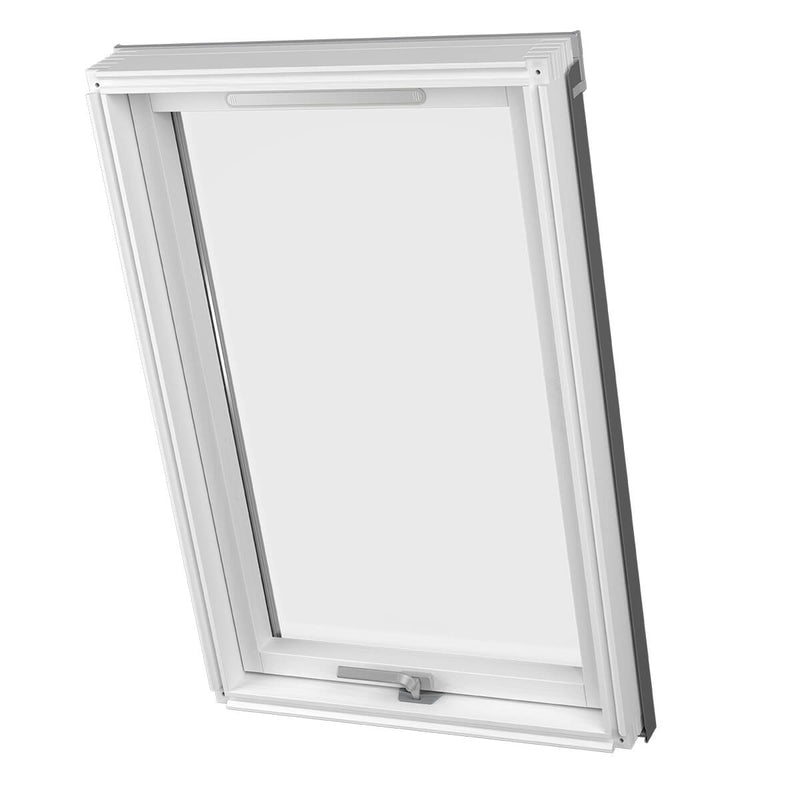

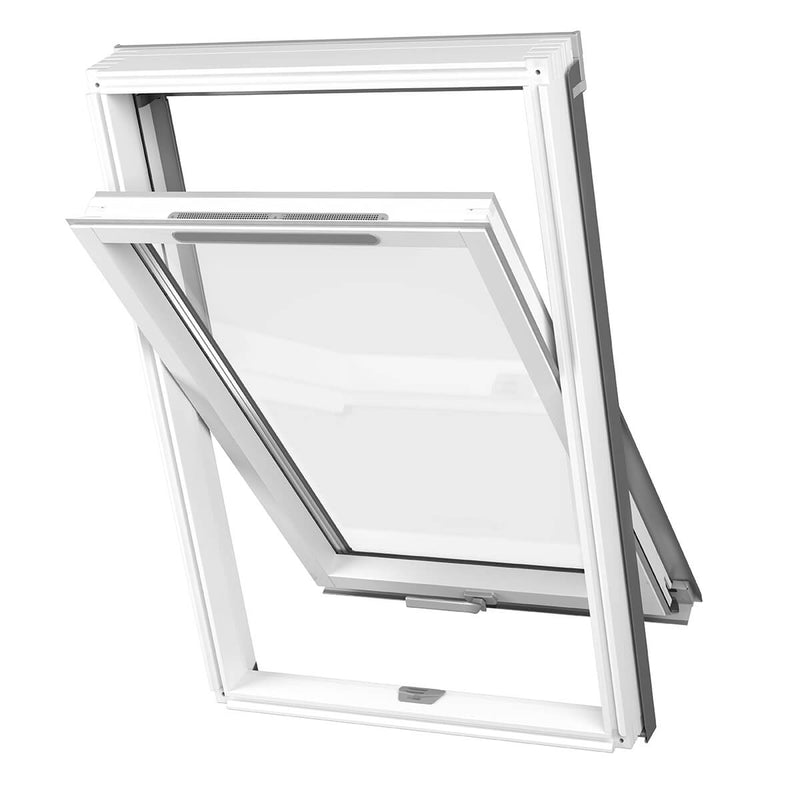

White - KAV B1510

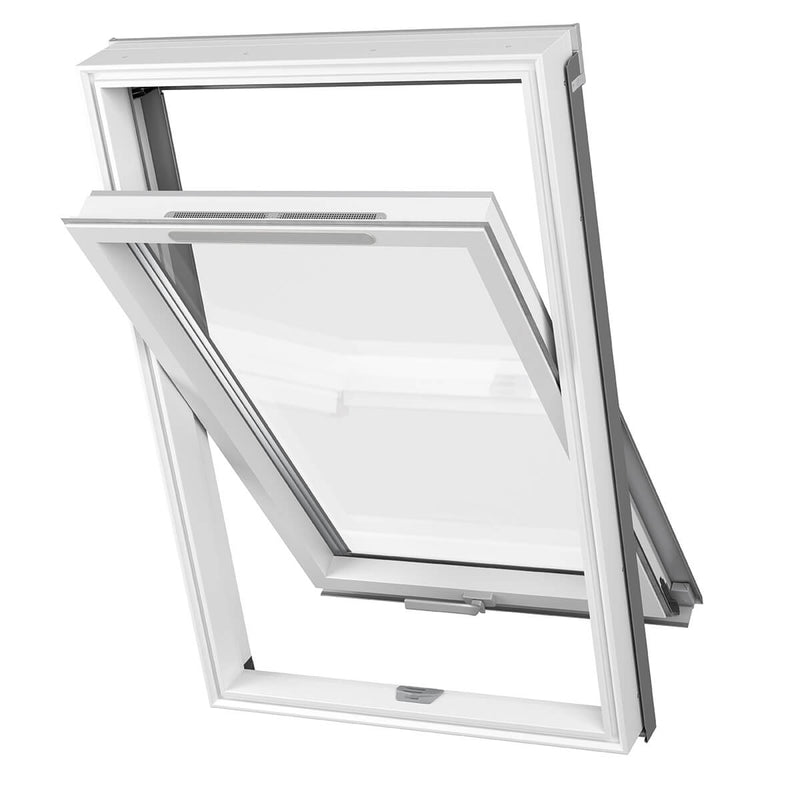

PVC - KPV B1500
Datasheets
KAV B1500/B1510 Technical Specification
KPV B1500 Technical Specification
