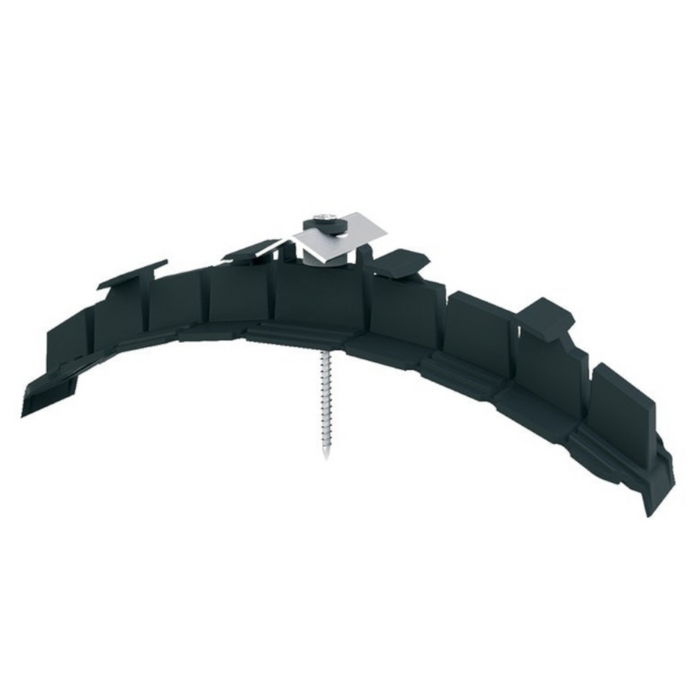

An image of a black Manthorpe Dry Ridge Union Bracket.

An image of a ridge with the Manthorpe Dry Ridge roll on it and Union Brackets being used.

Manthorpe Dry Ridge Union Bracket

Name: Manthorpe Dry Ridge Union Bracket
Brand: Manthorpe
SKU: RIDG.MANRIDUNI
Price: 2.76 GBP
Availability: InStock
Rating: 5.0 (1 reviews)

by Manthorpe

SKU RIDG.MANRIDUNI

£2.76 - £2.76

£2.76

£2.76 - £2.76

£2.76

Availability:

Available, ready to be shipped

Earn 0 points on this purchase.

Learn more

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More

Manthorpe has been designing and developing innovative building solutions for the UK construction industry for 40 years.

Manthorpe Dry Ridge Union Bracket

The Ridge Union sits in the gaps between each of the ridge or hip tiles, holding them in place. The union's body slides onto the end of the tile and is flexible so that it bends to the shape of the tile. The next tile slots into the other side of the union and this continues along the full length of the ridge or hip. Once the tiles are all correctly rested in place, the unions are secured by driving the screw assembly; complete with clamp plate and sealing washers, through the hole in the top and into the horizontal batten below.

The screws should be tightened down so that the clamp plate presses down on the tile securing it in position. The unions are available separately or as part of Manthorpe’s Dry Ridge System which can be purchased with all the components required to cover a run of approximately 3 or 6 metres.

Features & Benefits

Unions can flex to suit both round and angled ridge/hip tiles
Designed to suit concrete and clay tiles up to 20mm thick
The 4 inch screw provides a secure fixing into the ridge batten
The stainless steel clamp plate ensures the tiles are securely pinned in place
Neoprene washer forms a watertight seal around the screw hole
Foam spacer washer ensures tight fit onto the tile
Size: 235 x 55mm
Quantity: 1
Tile Thickness Range: Up to 20mm
Max Developed Length: 258mm
Roof Pitch Range: 15° to 45°
Material: Polypropylene
Manufacturing Process: Injection Moulded
Single Person Installation: Yes

Buyer Notes

Product Information Sheet

Roll Out Ridge System Fitting Instructions

Roll Out Hip System Fitting Instructions

}

Why Choose Manthorpe?

Our comprehensive range of quality building products is designed to meet your every need, from groundwork to roofline, from new build to refurb.

With extensive experience in the plastics industry, we have the expertise to manufacture virtually all our building products in-house and continue to invest heavily in new technology, cutting edge machinery and production processes.

Our products are proudly British made, providing our customers with full confidence in their high quality and robustness, and removing any supply chain concerns. Our close relationships with independent and national merchants ensure that our building products are available to purchase from a wide range of outlets throughout the UK.

At Manthorpe Building Products, they don’t just manufacture — they design, innovate, and deliver solutions that make building better. For over 40 years, they’ve been helping housebuilders and contractors tackle everyday challenges with smart, sustainable products that work.

From roofing essentials to through-wall and underfloor systems, cavity trays and closers, biodiversity products, radiator pipe guides and seals, loft doors, access panels, and drainage solutions — they’ve got the details covered so homes perform at their best.

British made for over 200 years

At the heart of our business is a shared culture built on collaboration, respect, and continuous improvement. We’re proud to foster a diverse and inclusive workforce where every individual is empowered to contribute, take initiative, and drive positive change. Always operating with health, safety, and wellbeing in mind — creating an environment where people feel supported and protected. Our values are reflected in the way we work together, with accountability, and always seeking smarter solutions - strong foundations for long-term partnerships and sustainable growth.

Independently Tested to BS 8612

Following the increased use of dry fix systems courtesy of these updates to BS 5534, a brand-new standard BS 8612 was introduced in February of 2018 to better control the design and material construction of dry fix systems. Manthorpe’s range of dry fix products have been independently tested to conform with the requirements of BS 8612, performance data for the tests conducted on these products is available upon request.

By far the simplest, quickest, and most cost-effective way of complying with the new standard is to join the switch to dry fix methods of roofing. Manthorpe's dry fix systems provide a high performance, easy to fix and maintenance free solution which can not only speed up the job on site, but also offer long term financial benefits.
