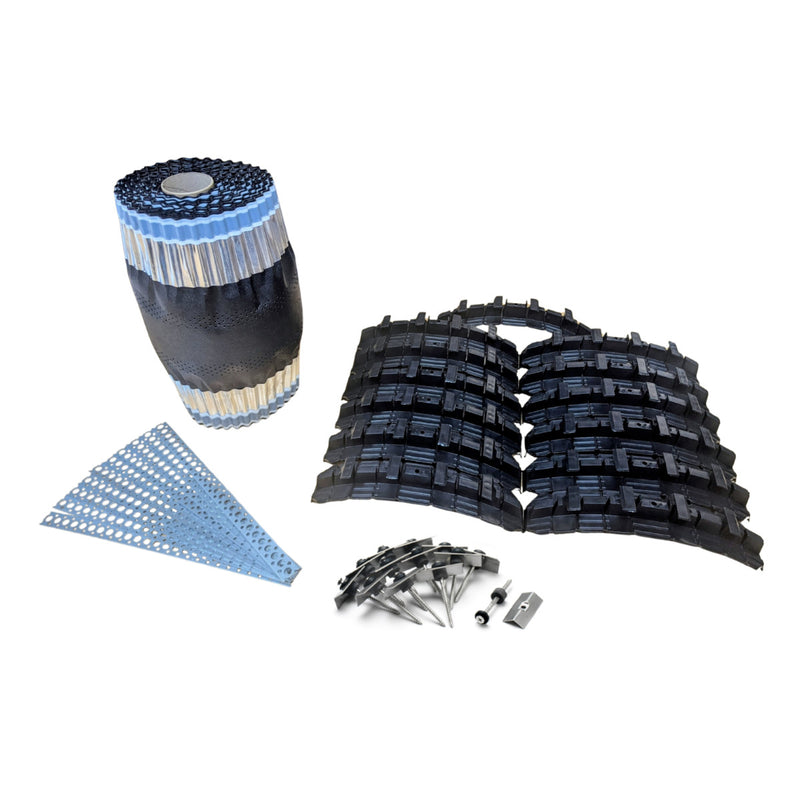

An image of a Roll Out Dry Ridge System Kit that includes the Manthorpe ridge roll, Batten brackets, ridge unions and fixing screws.

An image of a ridge with the Manthorpe Dry Ridge roll on it and Union Brackets being used.

An image of how a Roll Out Dry Ridge System kit is used on the ridge of a roof.

Manthorpe Dry Ridge Kit: 6m - GDRR-BL

Name: Manthorpe Dry Ridge Kit: 6m - GDRR-BL
Brand: Manthorpe
SKU: MANDRYRIDGKIT
Price: 38.4 GBP
Availability: InStock

by Manthorpe

SKU MANDRYRIDGKIT

£38.40 - £38.40

£38.40

£38.40 - £38.40

£38.40

Availability:

Available, ready to be shipped

Earn 0 points on this purchase.

Learn more

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More

Manthorpe has been designing and developing innovative building solutions for the UK construction industry for 40 years.

Manthorpe Dry Ridge Kit: 6m - GDRR-BL

The Manthorpe Roll-Out Dry Ridge is a mechanically fitted system which securely fixes the ridge tiles onto a roof, protecting them from wind up-lift and rain penetration. The system provides 5,000mm²/m ventilation to the roof void through the vent roll, the equivalent to a continuous 5mm gap. There is no need for mortar, making the job of fixing the ridge quick, easy and clean, as well as making it possible during frosts and other adverse weather conditions.

The system is compatible with most makes of concrete round and angled ridge tiles and most slate, flat concrete and profiled tiles. It can be fitted to the ridge of any duo pitch roof which has a pitch between 15 and 45 degrees. A single box of Manthorpe Dry Ridge provides all of the components required for a ridge run approximately 6 metres in length (excluding the ridge tiles).

Features & Benefits

Fully compliant to the requirements of BS 8612
Mechanically secures the ridge tiles to the structure of the roof
Provides 5,000mm²/M of ventilation into the roof space
Compatible with most makes of concrete half-round and angled ridge tiles
The system is compatible with most slate, concrete flat and profiled roof tiles
One box supplies enough components for a 6m ridge length
Quick and easy to fix with no special tool requirements

Buyer Notes

System Overview Product Information Sheet

Fitting Instructions

Vent Roll Product Information Sheet

Batten Support Bracket Product Information Sheet

Ridge Union Product Information Sheet

}

Why Choose Manthorpe?

Our comprehensive range of quality building products is designed to meet your every need, from groundwork to roofline, from new build to refurb.

With extensive experience in the plastics industry, we have the expertise to manufacture virtually all our building products in-house and continue to invest heavily in new technology, cutting edge machinery and production processes.

Our products are proudly British made, providing our customers with full confidence in their high quality and robustness, and removing any supply chain concerns. Our close relationships with independent and national merchants ensure that our building products are available to purchase from a wide range of outlets throughout the UK.

At Manthorpe Building Products, they don’t just manufacture — they design, innovate, and deliver solutions that make building better. For over 40 years, they’ve been helping housebuilders and contractors tackle everyday challenges with smart, sustainable products that work.

From roofing essentials to through-wall and underfloor systems, cavity trays and closers, biodiversity products, radiator pipe guides and seals, loft doors, access panels, and drainage solutions — they’ve got the details covered so homes perform at their best.

British made for over 200 years

At the heart of our business is a shared culture built on collaboration, respect, and continuous improvement. We’re proud to foster a diverse and inclusive workforce where every individual is empowered to contribute, take initiative, and drive positive change. Always operating with health, safety, and wellbeing in mind — creating an environment where people feel supported and protected. Our values are reflected in the way we work together, with accountability, and always seeking smarter solutions - strong foundations for long-term partnerships and sustainable growth.

Independently Tested to BS 8612

Following the increased use of dry fix systems courtesy of these updates to BS 5534, a brand-new standard BS 8612 was introduced in February of 2018 to better control the design and material construction of dry fix systems. Manthorpe’s range of dry fix products have been independently tested to conform with the requirements of BS 8612, performance data for the tests conducted on these products is available upon request.

By far the simplest, quickest, and most cost-effective way of complying with the new standard is to join the switch to dry fix methods of roofing. Manthorpe's dry fix systems provide a high performance, easy to fix and maintenance free solution which can not only speed up the job on site, but also offer long term financial benefits.
