Britmet Angle Ridge: 1250mm

Britmet Angle Ridge: 1250mm

This angle ridge is an accessory for the lightweight granulated metal tile range from Britmet. Designed specifically for our range of granulated metal lightweight tiles, the angle ridge is a fully dry-fix component, meaning no cement or mortar is needed to install it.

The Britmet Angle Ridge also features a granulated finish, which allows for a huge reduction in noise transfer when compared to smoother tiles, resulting in far less noise during rainfall or hail. With no maintenance required, this accessory will continue to perform fantastically long after installation.

Features & Benefits

• Part of a complete system: Compatible with slate 2000, ultratile, profile 49, villatile, plaintile

• Gorgeous, granulated finish: Designed to blend in with surrounding buildings and reduce noise from rainfall

• No maintenance required: No fixing and repairing once installed

• Highly versatile: Useable on both 0.9mm and 0.45mm tiles

• Cover length: 1.15m

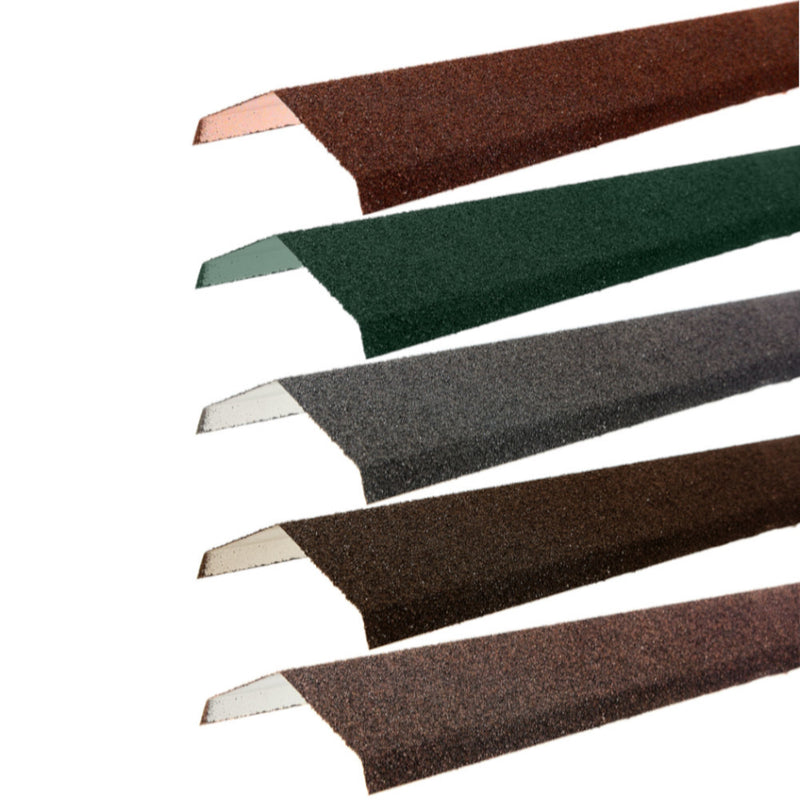

• Available in various colours -

  • Bramble Brown
  • Rustic Brown
  • Rustic Terracotta
  • Tartan Green
  • Titanium Grey

Technical Data

• Min Pitch: 10°

• Sidelap: 100 mm

• Fixings: 6

• Manufacturer: Britmet

• Cover Length: 1150mm

• Overall Length: 1250mm

• Height: 60mm

• Width: 230mm

• Weight: 1.7kg

• Steel Base: 0.40mm Galvanised Steel

• Base Coat: Acrylic

• Top Coat: Stone granules sealed with an acrylic glaze
