Manthorpe Single Pantile Tile Vent (GTV-SP)

Manthorpe Single Pantile Tile Vent (GTV-SP)

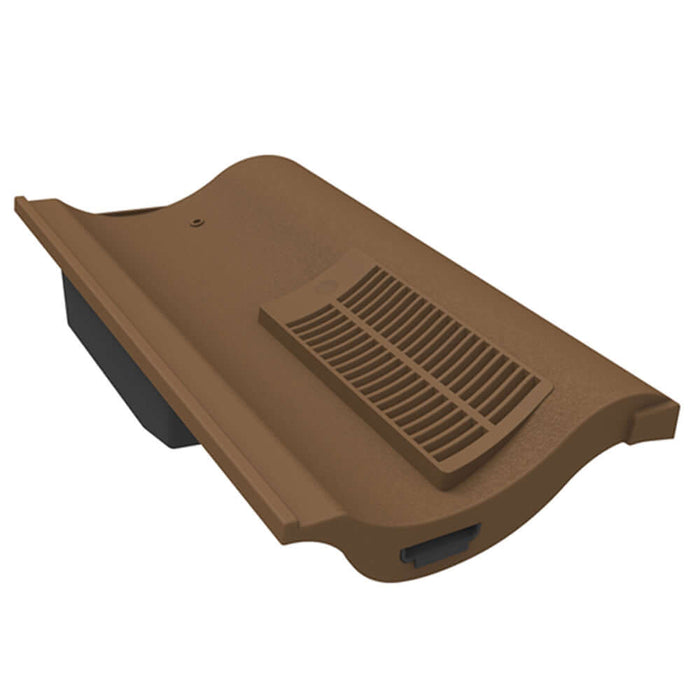

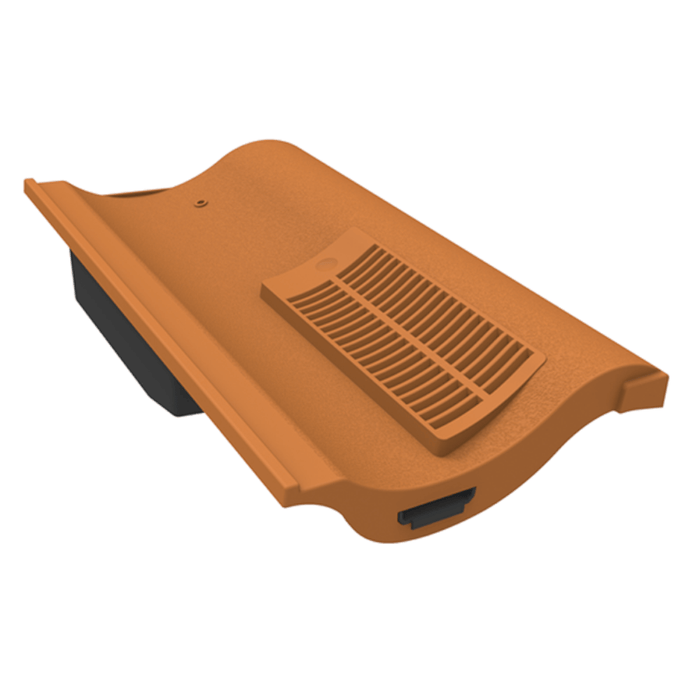

The small format single pantile ventilator is designed to provide a quick and simple solution to the problems of roof space ventilation and mechanical extraction/soil stack termination through a roof covered with a concrete single pantile.

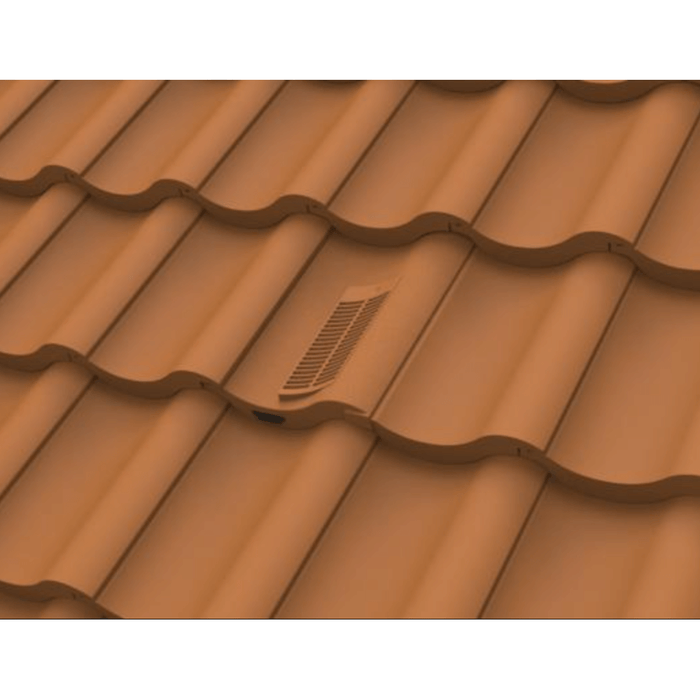

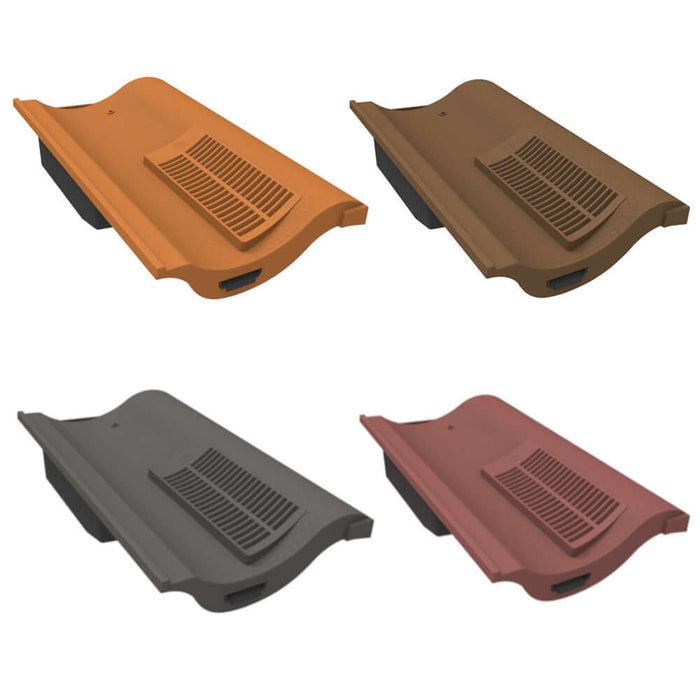

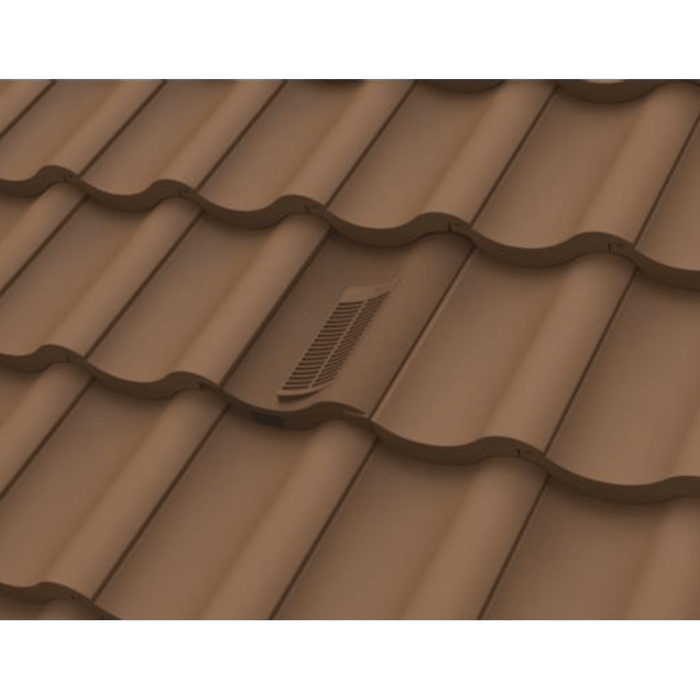

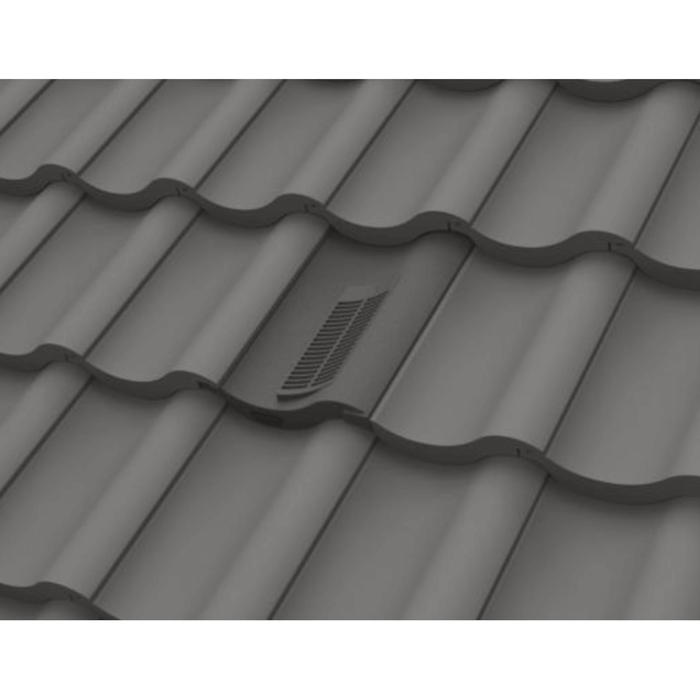

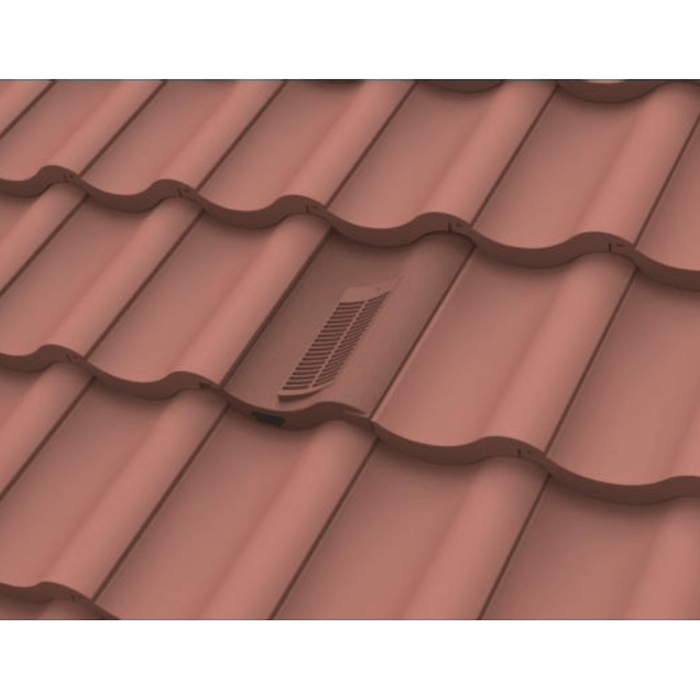

The in-line profile helps to maintain an unbroken appearance to the roofline at a high or low level. Designed to suit the leading tile makes, it is available in a range of colours with a moulded textured finish. The tortured path through the internal weathering geometry is designed to maintain a constant airflow gap of 5,000 mm² whilst channelling any water ingress out of the vent and onto the roof covering below, with the 4mm louvered grille in place to prevent the entry of debris and large nesting insects.

How often do I need to place them?

This handy guide below covers the recommended spacing between vents based on airflow (mm/m²)

Made of an injection moulded polypropylene with a uPVC top these tile vents meet all the necessary standards for roofing and ventilation (BS 5534:2014, BS 5250:2011 & BS 490:2004) and are suitable for use down to 20° roof pitches without the risk of water ingress.

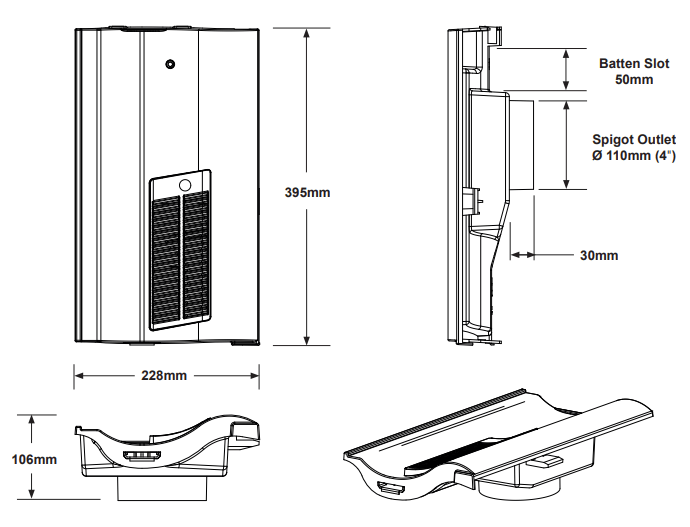

The Manthorpe Single Pantile vent has a built-in adaptor and connects directly to a Manthorpe Flexi-pipe and takes the space of 1 single pantile without the need to cut through the roofing battens.

Downloadable Content:

Manthorpe Single Pantile Information Sheet

Manthorpe Single Pantile Fitting Sheet
