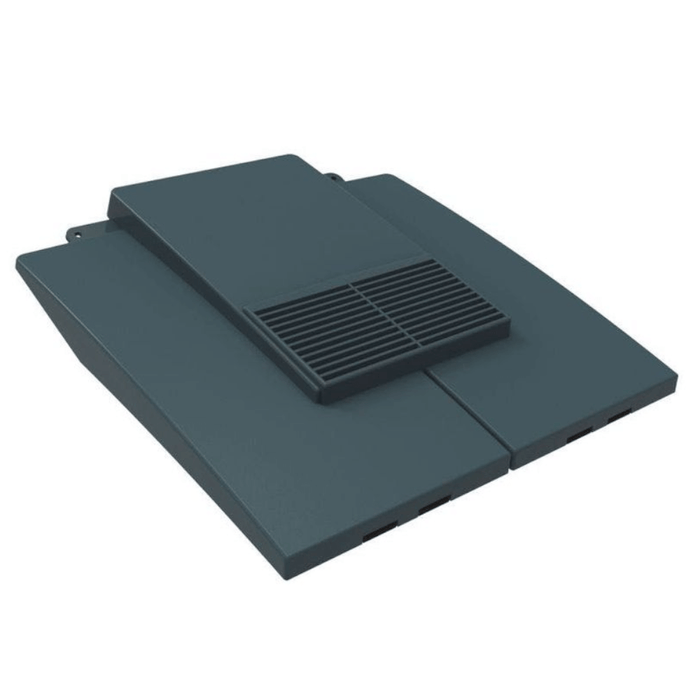

An image of Manthorpe Plain Tile Vent in Slate Grey.

An image of Plain Tile Vent in Slate Grey on a roof to show the finish.

An image of Manthorpe Plain Tile Vent in Terracotta.

An image of Manthorpe Plain Tile Vent in Terracotta on a roof to show the finish.

An image of the dimensions of a Manthorpe InLine Plain Tile Vent.

An image of the different types of Manthorpe Tile Vents and their compatibility with different tiles of tiles.

Manthorpe Plain Tile Vent - GTV-PT

Name: Manthorpe Plain Tile Vent - GTV-PT
Brand: Manthorpe
SKU: MANTVENT-PT-SG
Price: 34.13 GBP
Availability: InStock

by Manthorpe

SKU

£34.13 - £50.99

£34.13

£34.13 - £50.99

£34.13

Availability:

Available, ready to be shipped

Availability:

Available, ready to be shipped

Availability:

Available, ready to be shipped

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Availability:

Low stock

Quantity

Earn 0 points on this purchase.

Learn more

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More

Manthorpe has been designing and developing innovative building solutions for the UK construction industry for 40 years.

Manthorpe Plain Tile Vent - GTV-PT

This Manthorpe Non-Profile Tile Vent is compatible with the following manufacturers / tiles:

Concrete and Traditional Clay plain Tiles

The Manthorpe Plain Tile Vent slots perfectly into the space normally occupied by three concrete or clay, plain, smooth roof tiles. After installation, the low-profile vent is neat and inconspicuous from ground level. This adaptable roof vent can be used for mechanical extract, soil stack termination, or simple roof space ventilation.

Spanning two courses, each of these roof vents provides a louvered airflow gap of 7,000mm2. A discreet, surface-mounted grille stops wasps, birds, and debris from entering the roof space. Any rainwater that enters the grille is immediately flushed from the system via carefully angled channels on the underside of the vent. A 48mm base outlet is easily accessible from the roof space. The base outlet is designed to slot between the battens, making installation quick and simple.

With simple fitting and a discreet, attractive appearance, Manthorpe Plain Tile Vents are particularly well suited to compact, modern buildings and are compatible for use with most major clay and concrete tiles manufacturers. Available in 4 different colours to suit most projects.

By adding one of Manthorpe’s adaptors and connects directly to a Manthorpe Flexi-pipe these roof vents are easily altered for use in mechanical extract or soil stack ventilation systems.

How often do I need to place them?

This handy guide below covers the recommended spacing between vents based on airflow (mm/m²)

Free Flowing Airflow	Tile Vent Spacings
	Millimetres	Meters
5000mm/m²	1400	1.4
10000mm/m²	700	0.7
25000mm/m²	280	0.28

Made of an injection moulded polypropylene with a uPVC top these tile vents meet all the necessary standards for roofing and ventilation (BS 5534:2014, BS 5250:2011 & BS 490:2004) and is suitable for use down to 35° roof pitch.

Buyer Notes

Product Information Sheet

Product Information System Overview

System Fitting Instructions

}

Why Choose Manthorpe?

Our comprehensive range of quality building products is designed to meet your every need, from groundwork to roofline, from new build to refurb.

With extensive experience in the plastics industry, we have the expertise to manufacture virtually all our building products in-house and continue to invest heavily in new technology, cutting edge machinery and production processes.

Our products are proudly British made, providing our customers with full confidence in their high quality and robustness, and removing any supply chain concerns. Our close relationships with independent and national merchants ensure that our building products are available to purchase from a wide range of outlets throughout the UK.

At Manthorpe Building Products, they don’t just manufacture — they design, innovate, and deliver solutions that make building better. For over 40 years, they’ve been helping housebuilders and contractors tackle everyday challenges with smart, sustainable products that work.

From roofing essentials to through-wall and underfloor systems, cavity trays and closers, biodiversity products, radiator pipe guides and seals, loft doors, access panels, and drainage solutions — they’ve got the details covered so homes perform at their best.

British made for over 200 years

At the heart of our business is a shared culture built on collaboration, respect, and continuous improvement. We’re proud to foster a diverse and inclusive workforce where every individual is empowered to contribute, take initiative, and drive positive change. Always operating with health, safety, and wellbeing in mind — creating an environment where people feel supported and protected. Our values are reflected in the way we work together, with accountability, and always seeking smarter solutions - strong foundations for long-term partnerships and sustainable growth.

Independently Tested to BS 8612

Following the increased use of dry fix systems courtesy of these updates to BS 5534, a brand-new standard BS 8612 was introduced in February of 2018 to better control the design and material construction of dry fix systems. Manthorpe’s range of dry fix products have been independently tested to conform with the requirements of BS 8612, performance data for the tests conducted on these products is available upon request.

By far the simplest, quickest, and most cost-effective way of complying with the new standard is to join the switch to dry fix methods of roofing. Manthorpe's dry fix systems provide a high performance, easy to fix and maintenance free solution which can not only speed up the job on site, but also offer long term financial benefits.
