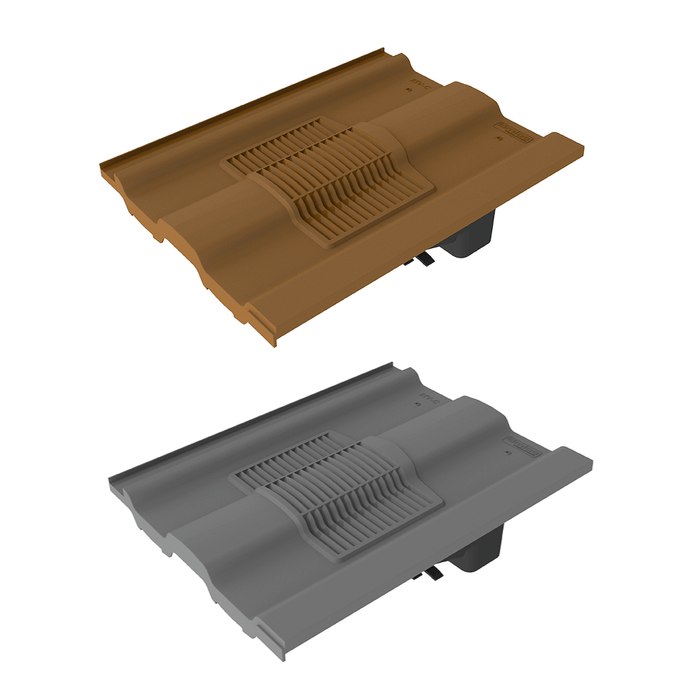

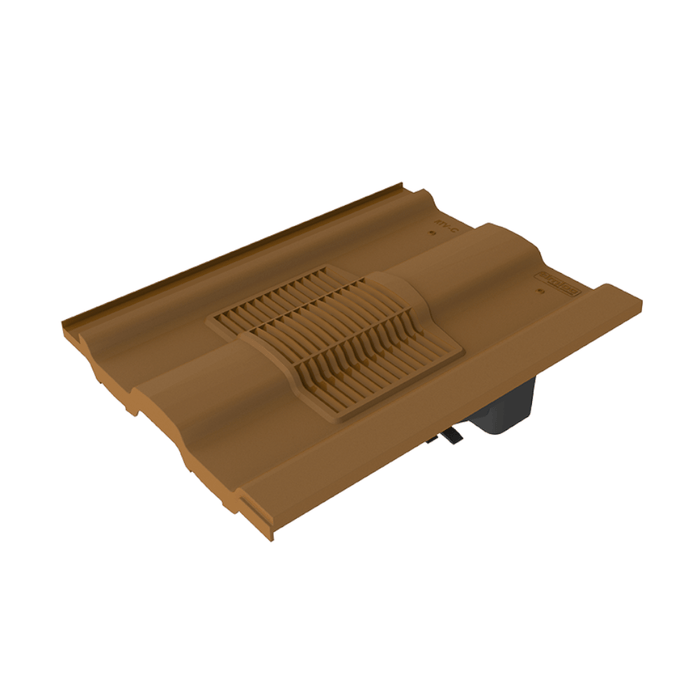

Timloc Castellated Tile Vent

Timloc Castellated Tile Vent

Castellated Profiled Roof Tile Vent Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Suitable for

• On roofs with Castellated profile roof tiles

• Enables ventilation directly into a roof space

• Can also be connected to a ducted ventilation system inside the building

Features & Benefits

• Suitable for roofs with a minimum pitch of 20°

• Free ventilation area of 10,000mm2

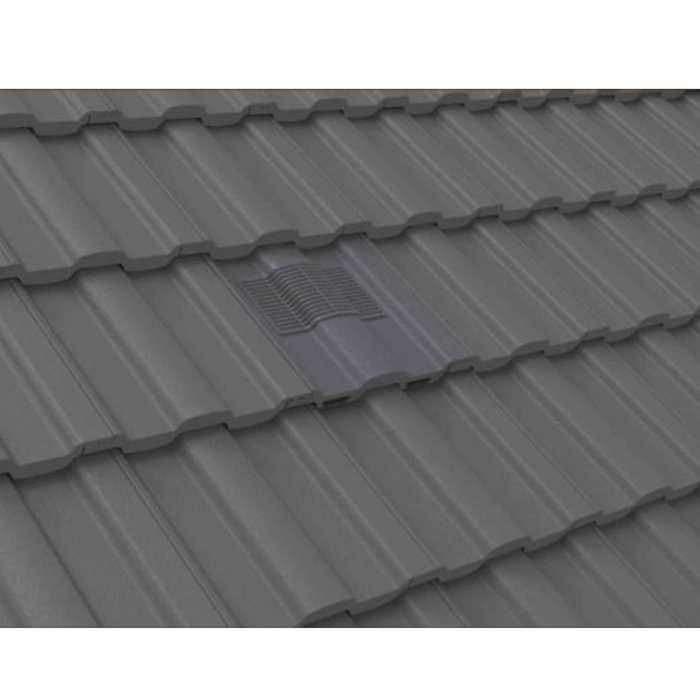

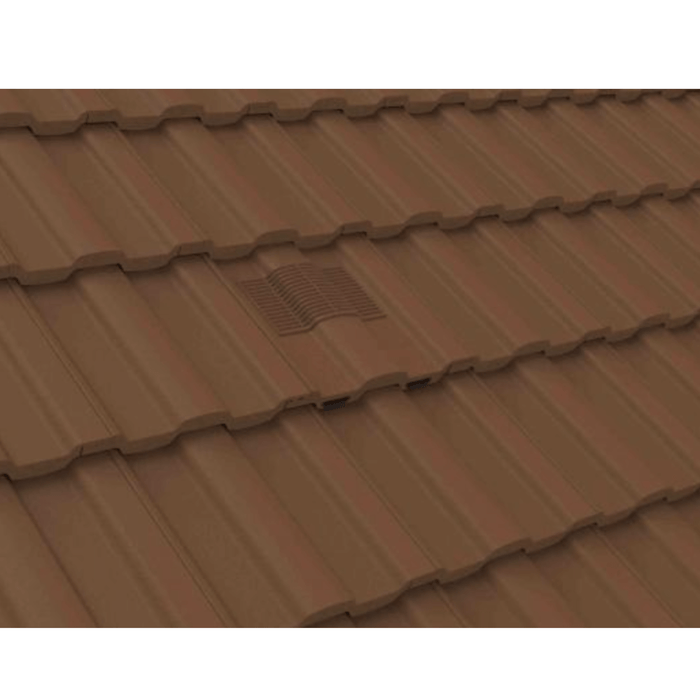

• Sized to replace one Castellated tile to provide a continuous visual appearance

• along the roof when viewed at all levels

• UV stabilised top for continuous exposure to sunlight Lightweight and easy to handle

• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening.

• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris

• Integrated clips to ensure a secure fit to surrounding roof tiles

Relevant Standards

BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding product specifications (+A1:2017)
BS 5250: 2021 Management of moisture in buildings Code of practice BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018)
Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
Complies with all relevant sections of the Building Regulations 2010
Satisfies all relevant NHBC requirements

Datasheet:

Castellated Tile Vent
