Timloc Double Roman Tile Vent

by Timloc
SKU TL-DRTV-GREY
Original price £20.22 - Original price £20.22
Original price
£20.22
£20.22 - £20.22
Current price £20.22
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Request a quote

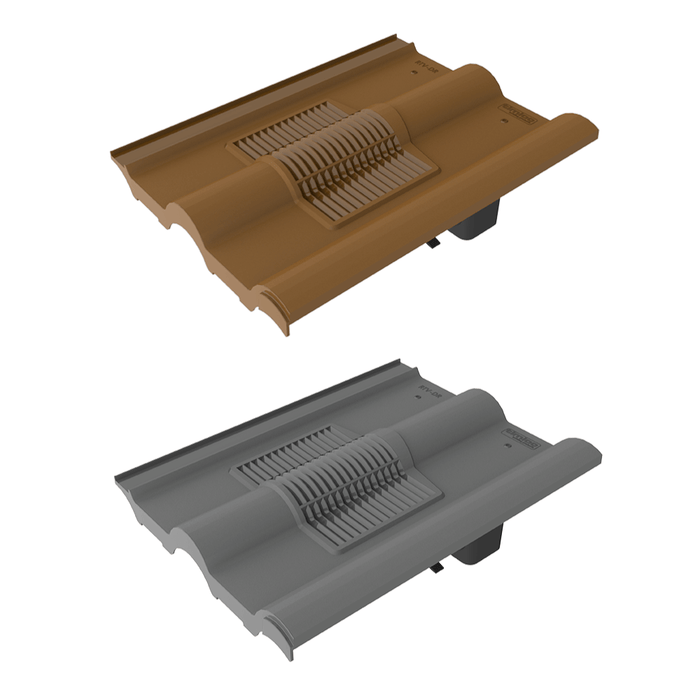

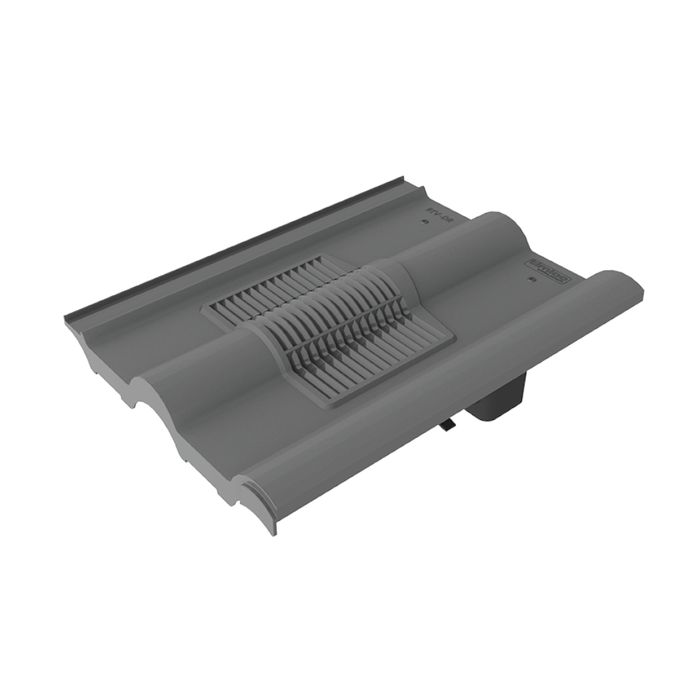

Timloc Double Roman Tile Vent

Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Uses

  • On roofs with Double Roman profile roof tiles
  • Enables ventilation directly into a roof space
  • Can also be connected to a ducted ventilation system inside the building

Features & Benefits:

  • Suitable for roofs with a minimum pitch of 20 °
  • Free ventilation area of 10,000mm2

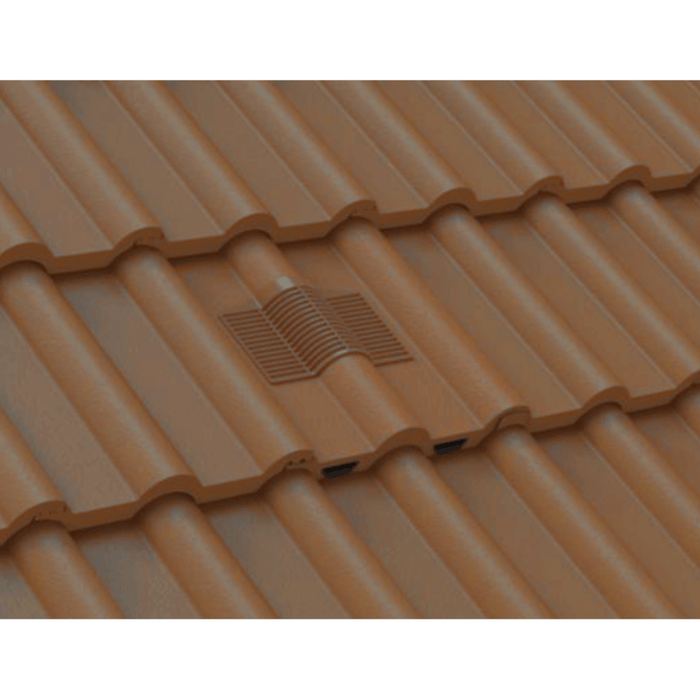

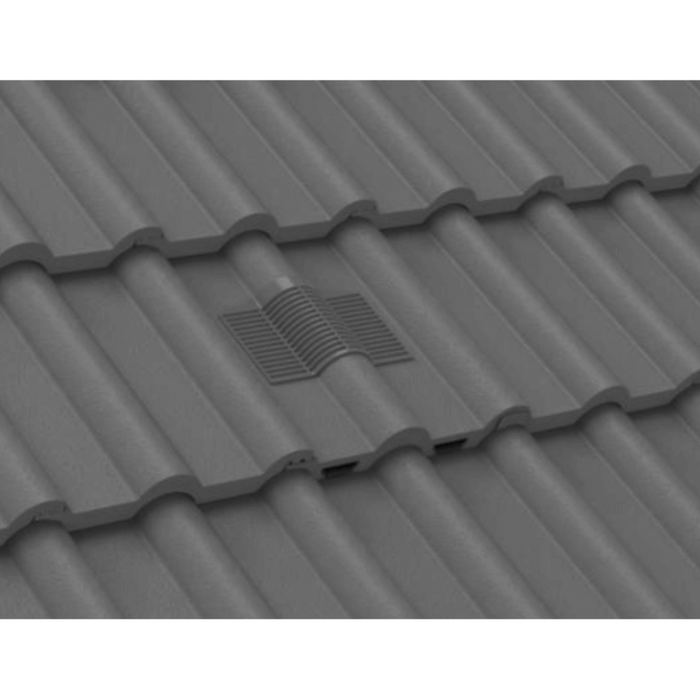

  • Sized to replace one Double Roman tile to provide a continuous visual appearance along the roof when viewed at all levels
  • Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
  • 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris Integrated clips to ensure a secure fit to surrounding roof tiles
  • UV stabilised top for continuous exposure to sunlight Lightweight and easy to handle

Relevant Standards

  • BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding product specifications (+A1:2017)
  • BS 5250: 2021 Management of moisture in buildings Code of practice
  • BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018) Manufactured to
  • BS EN ISO 9001:2015 and BS EN ISO 14001:2015 Complies with all relevant sections of the Building Regulations 2010
  • Satisfies all relevant NHBC requirements

Compatibility

Double Roman large format tiles from all major manufacturers including:
Marley Double Roman
Redland 50 Double Roman
Russell Double Roman
Sandtoft Double Roman
Logan Double Roll
}
