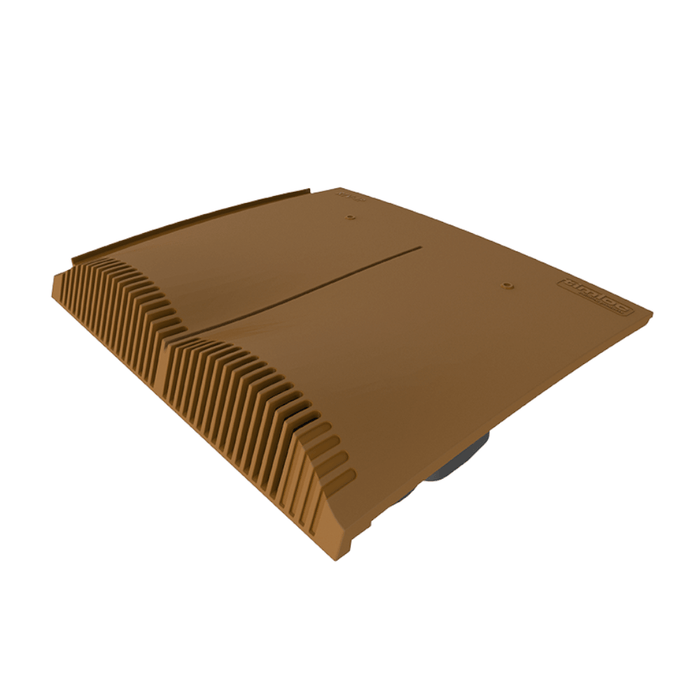

Timloc Interlocking Plain Tile Vent RTV-IP

Timloc Interlocking Plain Tile Vent Brown or Grey

Interlocking Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system Uses: On roofs with Interlocking Plain profile roof tiles Enables ventilation directly into a roof space Can also be connected to a ducted ventilation system inside the building.

Features & Benefits

• Suitable for roofs with a minimum pitch of 22.5 °

• Free ventilation area of 6,000mm2 Sized to replace one

• Interlocking Plain tile to provide a continuous visual appearance along the roof when viewed at all levels

• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris

• UV stabilised top for continuous exposure to sunlight Lightweight and easy to handle
• Colours - Grey or Brown

Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding product specifications (+A1:2017)

• BS 5250: 2021 Management of moisture in buildings Code of practice

• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice (+A2:2018)

• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015

• Complies with all relevant sections of the Building Regulations 2010

• Satisfies all relevant NHBC requirements

Compatibility

• Interlocking Plain tiles from all major manufacturers including:

• Marley Ashmore

• Redland Duoplain

• Forticrete Gemini

Material & Colour:

• Top UV stabilised coloured injection moulded Polypropylene with textured finish

• Available in Terracotta, Brown, Grey and Red Base – Black injection moulded Polypropylene

Accessories

• The 110mm Flexipipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe The plain adapter (RTV-ADP) can be used to attach the roof tile vent to 110mm ductwork

• Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI) RTV-ADP and RTV-KIT1 available as one kit (RTV-KIT3). See 110mm Flexi-Pipe Kits

Datasheet:

Interlocking Plain Tile Vent
