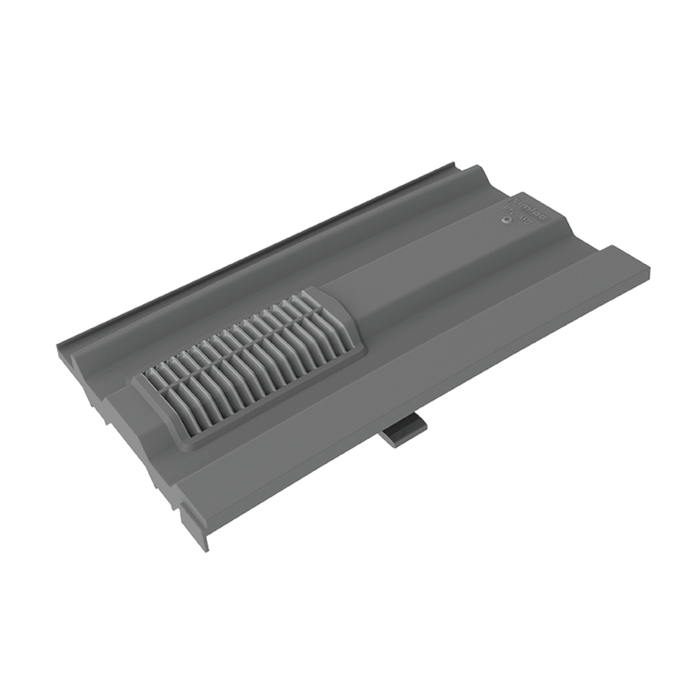

Timloc Mini Castellated Tile Vent RTV-MC

Timloc Mini Castellated Tile Vent, Brown or Grey

Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system Uses: On roofs with Mini Castellated roof tiles Enables ventilation directly into a roof space Can also be connected to a ducted ventilation system inside the building

Features & Benefits

• Suitable for roofs with a minimum pitch of 17.5 °

• Free ventilation area of 5,000mm2

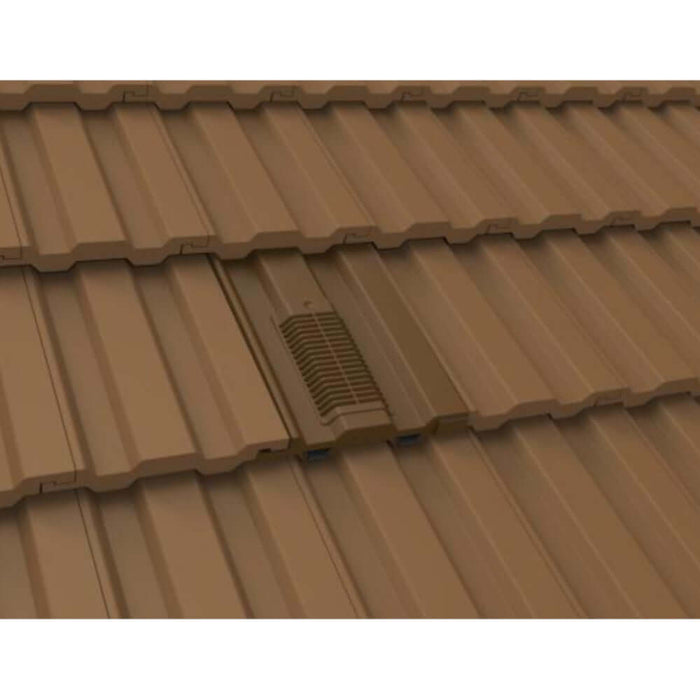

• Sized to replace one Mini Castellated tile to provide a continuous visual appearance along the roof when viewed at all levels Provides a 110mm duct connection as standard

• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening

• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris

• Integrated clips to ensure a secure fit to surrounding roof tiles

• UV stabilised top for continuous exposure to sunlight

• Lightweight and easy to handle

Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding  - product specifications (+A1:2017)

• BS 5250: 2021 Management of moisture in buildings Code of practice

• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018)

• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015

• Complies with all relevant sections of the Building Regulations 2010

• Satisfies all relevant NHBC requirements

Compatibility

• Mini Castellated small format tiles from all major manufacturers including:

• Marley Ludlow Plus

• Redland 49

• Sandtoft Standard Pattern

• Forticrete V2


Material & Colour

• Top UV stabilised coloured injection moulded Polypropylene with textured finish

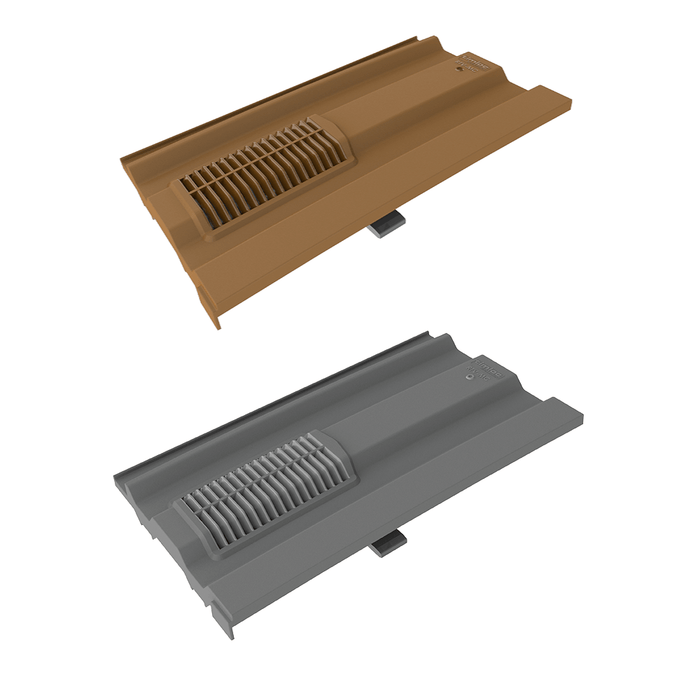

• Available in Brown or Grey Base - Black injection moulded Polypropylene

Accessories

The 110mm Flexipipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe
Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI)

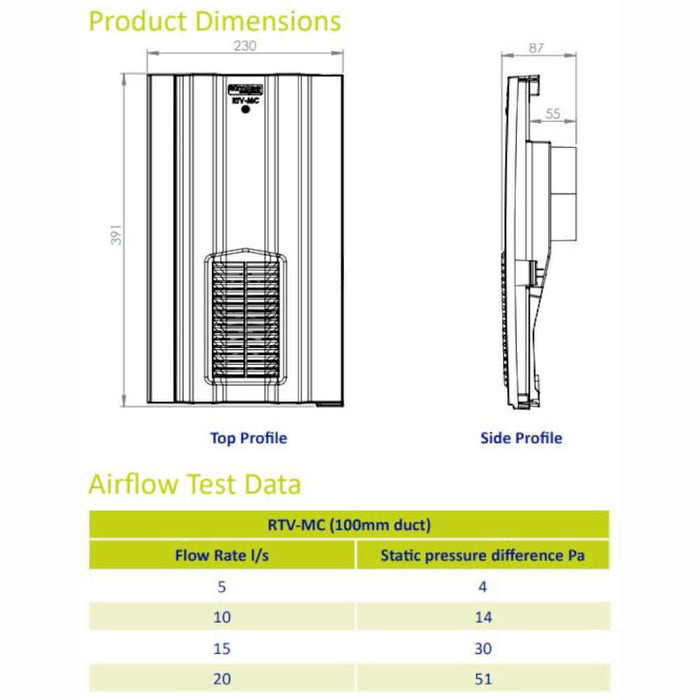

Datasheet

Mini Castellated Tile Vent
