Dakea Better Energy Centre Pivot Roof Window
2-3 Working Day Delivery
20 Year Guarantee (10 + 10 Years)
Register online at www.dakea.net. It will increase your home value and give you an extra 10 years peace of mind.
FREE UNDERFELT FOIL COLLAR (RUC)
INSTALLED IN A PITCH OF BETWEEN 15 AND 90 DEGREES
THERMAL CONDUCTIVITY RATING: Uw 1.1 W/m²K
Better insulation and better moisture protection. The Better Energy PVC range features a three pane system to improve thermal efficiency. The PVC frame protects against damage from moisture. It’s an ideal roof window for kitchens and bathrooms.
Features & Benefits:
- Dakea Better Energy PVC is an ideal solution for rooms with high humidity, such as kitchens and bathrooms, as it has a high resistance to wet and dirt
- It is easy to clean and, compared to wooden roof windows, is much less exposed to mould. Unlike wooden surfaces, they do not require additional painting
- Their two-chamber structure, filled with argon gas, provides better insulation, which means less heat loss in winter and a limited amount of heat getting inside in summer
- The three-pane windows have better U-value, both the glass itself and the window frame, which can reduce heating costs and thus reduce environmental pollution
- Energy efficiency: Uw = 1.1 W/m2K, triple-glazing / double-chamber package
- We recommend Dakea Better Energy windows for rooms where better thermal comfort is required, e.g. living rooms and bedrooms, etc.
- Remember: Dakea Better Energy windows come with a free Dakea Quick Install (RUC) vapor barrier collar. The Quick Install flashing reduces installation time and ensures that the structure is properly sealed
- Dakea Better Energy roof windows can be installed in all roofing materials between a slope of 15 to 90 degrees. Original Dakea flashing is required to properly install windows.
Technical Parameters (Pane):
Variant | 15 |
Construction | 4 - 12 - 3HS - 12 - 3H |
Thickness of Glazing (mm) | 34 |
Low E | ✔️✔️ |
Gas | Argon |
Toughened | ✔️ |
Laminated | |
Ug (W/m²K) | 0.77 |
Total Solar Energy Transmittance | 0.55 |
Technical Parameters (Window):
Uw (W/m²K) | 1.1 |
Water Tightness | E1350 |
Air Permeability | Class 4 |
Resistance to wind load | Class C4 |
Sound Reduction (dB) | 33 (-1, -3) |
Colours:
White - KAV B1510
PVC - KPV B1500

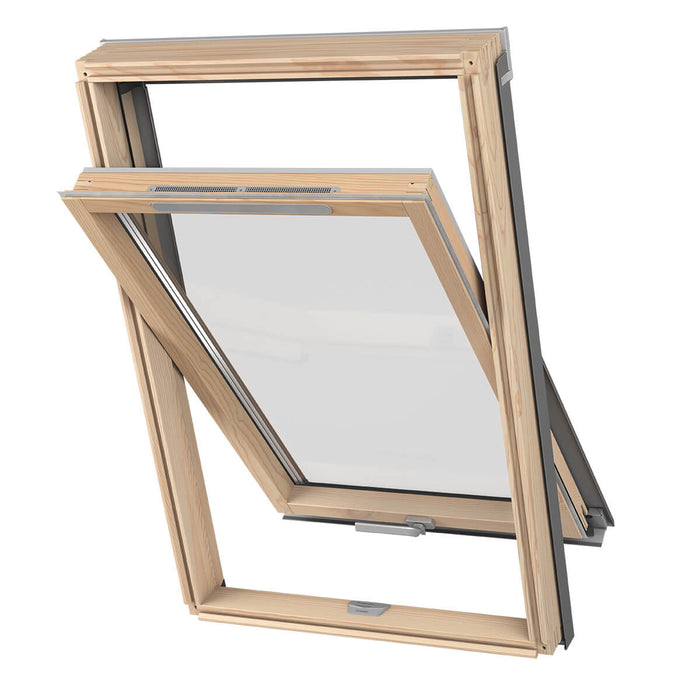

Pine - KAV B1500 - Please contact us for pricing
Datasheets:
KAV B1500/B1510 Technical Specification
KPV B1500 Technical Specification
