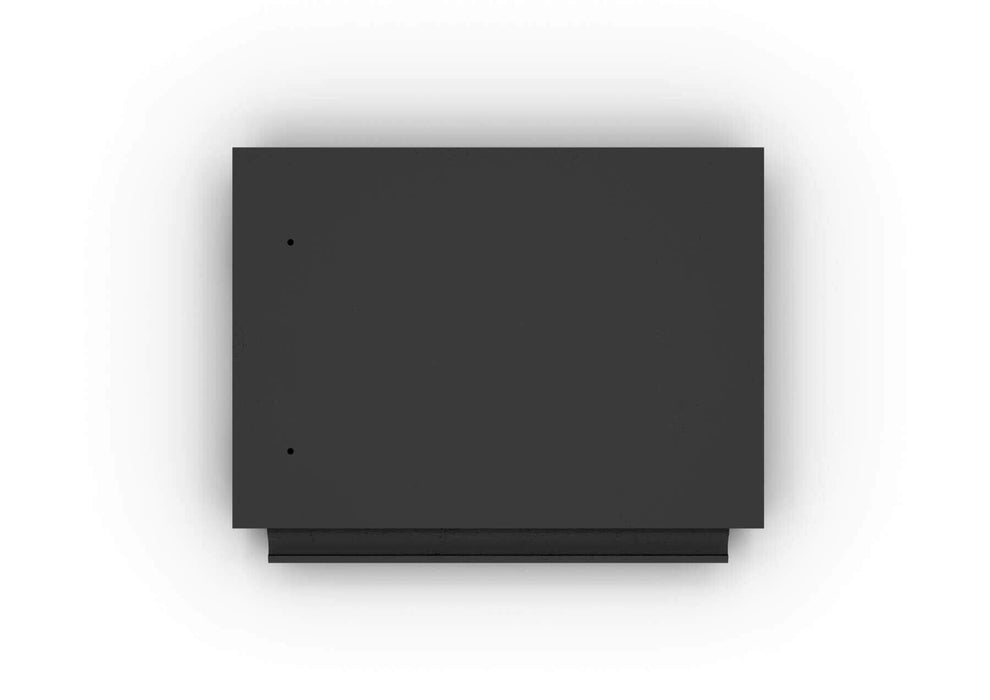

FP McCann Thin Leading Edge Tile
*** PLEASE SEE BUYER NOTES ***
A thinner leading edge interlocking concrete roof tile which gives a slate appearance when laid half broken bonded.
Details
- Size – 420 x 334mm
- Weight – 4.7kg
- Thickness – 19.5mm
- Tiles Per Pallet – 228
- Tiles Per Band – 38
- Weight of Pallet – 1086kg
Technical Information
- Minimum Headlap – 75mm
- Maximum Gauge – 345mm
- Minimum Pitch – 22.5° (75mm Headlap) 17.5° (100mm Headlap)
- Cover Width – 305mm
- Nail Size – 40mm x 3.35mm Slate Nails
- Batten Size – 50 x 25mm for rafters not exceeding 600mm
- Covering Capacity – 75mm headlap – 9.7 Tiles /m² (Tiles /m²) 100mm headlap – 10.5 Tiles /m²
Buyer Notes
Please note that ordering 5% more tiles is recommended to allow for breakages especially if a job is on a tight timescale. Some tiles and slates can be broken in transit and can be refunded.
