Timloc Plain Tile Vent Adaptor

Timloc Plain Tile Vent Adaptor

This Plain Roof Tile Vent Adapter is a duct adapter compatible with the Timloc Plain and Interlocking Plain Inline Roof Tile Vents (RTV-P / RTV-IP). It helps provide a precise fit to a 110mm duct or soil vent pipe without reducing the free vent area of the system.

Simply click the adapter into position to secure it to the base of the tile vent. Once fitted, the duct can be secured to the adapter with adjustable screw claps, zip ties or glued/screwed. The adapter is also manufactured to high standards, including management of moisture in buildings Code of Practice.

Features & Benefits

• Compatible with Timloc Plain Inline Roof Tile Vents RTV-P / RTV-IP without reducing the free vent area of the system

• Simply click into position to secure the adapter to base of the tile vent

• Provides a precise fit to 110mm duct or Soil Vent Pipe Duct can be secured to the adapter with adjustable screw clamps, zip ties or glued/screwed

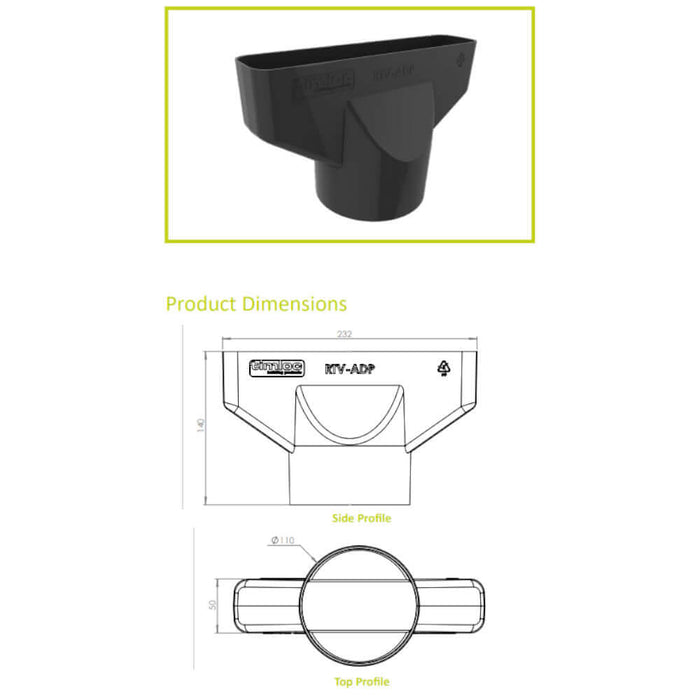

Technical data

• Brand - Timloc

• Range - Roofline

• Product Type - Plain Roof Tile Vent Adaptor

• Material - Polypropylene

• Colour - Black

• Diameter - 110mm

• Height - 50mm

• Depth - 140mm

• Width - 232mm

• Weight - 0.13kg

Relevant Standards

• BSI: BS 5250:2021 Management of moisture in buildings Code of practice
• Manufactured to BS EN ISO 9001 and BS EN ISO 14001 Complies with all relevant
• Building Regulations 2010 Satisfies all NHBC requirements

Material

Injection moulded Polypropylene Available in Black only

Buyer Notes

Plain Tile Vent Adapter
