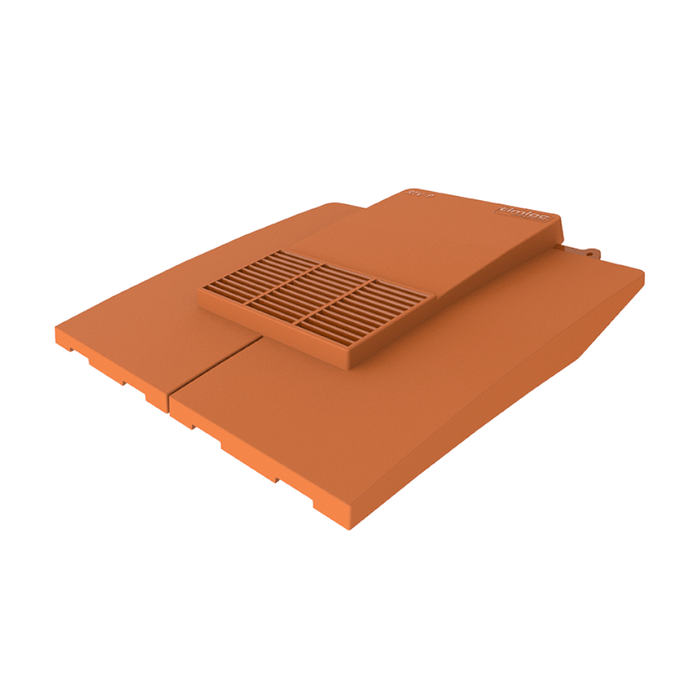

Timloc Plain Tile Vent

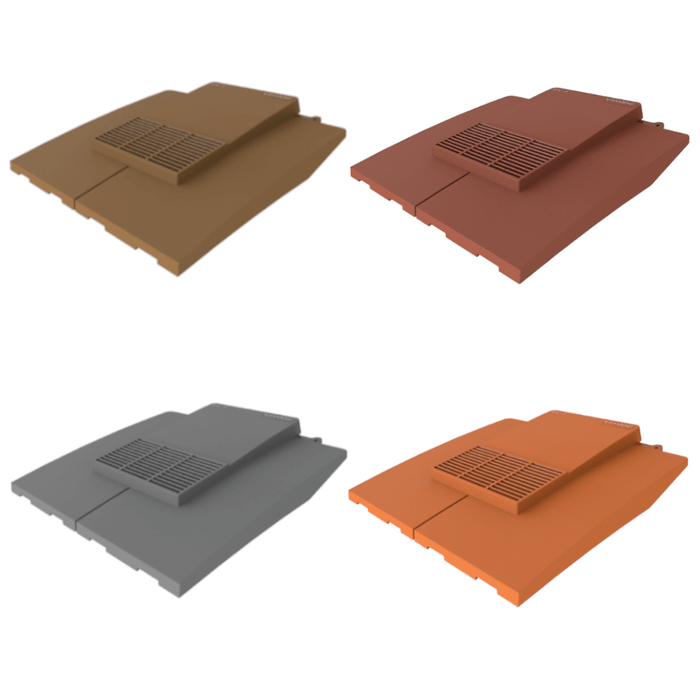

Timloc Plain Tile Vent, Brown, Grey, Red, Terracotta

Plain roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system Uses: On roofs with Plain roof tiles Enables ventilation directly into a roof space Can also be connected to a ducted ventilation system inside the building

Features & Benefits

• Suitable for roofs with a minimum pitch of 35 °

• Free ventilation area of 7,000mm2

• Sized to replace three plain tiles to provide a continuous visual appearance along the roof when viewed at all levels -Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris

• UV stabilised top for continuous exposure to sunlight

• Lightweight and easy to handle
• Dimensions: 420mm x 330mm

Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding - product specifications (+A1:2017)

• BS 5250: 2021 Management of moisture in buildings Code of practice

• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018)

• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015

• Complies with all relevant sections of the Building Regulations 2010

• Satisfies all relevant NHBC requirements

Compatibility

• Plain tiles from all major manufacturers including:

• Redland Rosemary

• Marley Plain

• Russell Traditional Plain

• Sandtoft Humber Plain

Material & Colour

• Top UV stabilised coloured injection moulded Polypropylene with textured finish

• Available in Terracotta, Brown, Grey, Red and Black Base Black injection moulded Polypropylene

Accessories

• The 110mm Flexi-Pipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe
• The plain adapter (RTV-ADP) can be used to attach the roof tile vent to 110mm ductwork

• Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI)
