Timloc Standard Tile Vent Adaptor RTV-ADS
Earn 0 points on this purchase.
Timloc Standard Tile Vent Adaptor

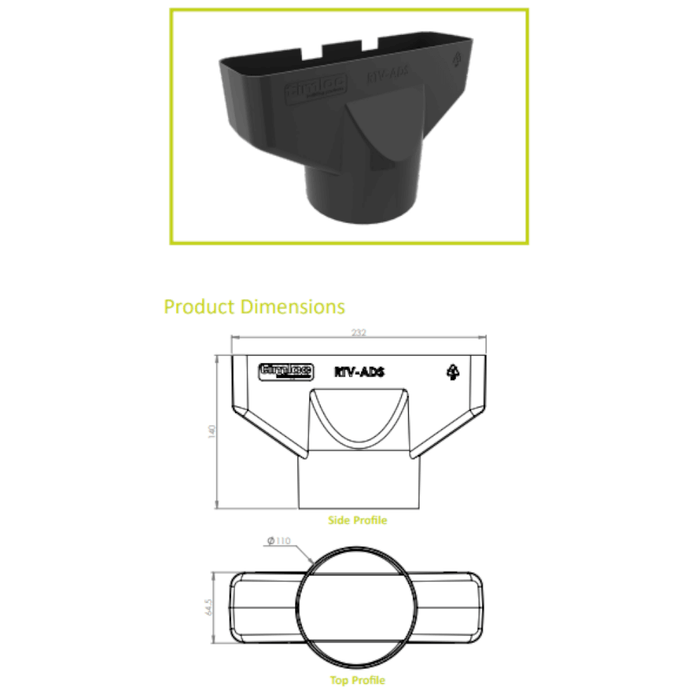

Suitable for Timloc Large Format Inline Roof Tile Vents, this Standard Roof Tile Vent Adapter is for precision fitting the vent to a 110mm duct or soil vent pipe.
Compatible with all Timloc Large Format Inline Roof Tile Vents, the adapter is fitted by simply clicking the product into position to secure it to the base of the tile vent. When fitted, the adapter reduces the maximum free vent area of the system from 10,000mm² to 8,600mm². For quality assurance, the adapter is compliant with BS 5250: 2021 management of moisture in buildings, Code of Practice.
Features Benefits
- Compatible with all Timloc Large Format Inline Roof Tile Vents RTV-C / RTV-DP / RTV-DR / RTV-TE / RTV-FE / RTV-NP
- The adapter reduce the maximum free vent are of the system from 10,000mm2 to 8,600mm2
- Simply click into position to secure the adapter to base of the tile vent
- Provides a precise fit to 110mm duct or Soil Vent Pipe Duct can be secured to the adapter with adjustable screw clamps, zip ties or glued/screwed
Relevant Standards
- BS 5250: 2021 Management of moisture in buildings Code of practice
- Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
- Complies with all relevant Building Regulations 2010 Satisfies all NHBC requirements
Material
Injection moulded Polypropylene Available in Black only
Buyer Notes
