Timloc Thin Leading Edge Tile Vent

Timloc Thin Leading Edge Tile Vent - Black

Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system

Uses

• On roofs with Thin Leading Edge profile roof tiles
• Enables ventilation directly into a roof space
• Can also be connected to a ducted ventilation system inside the building

Features and Benefits

• Suitable for roofs with a minimum pitch of 20°
• Free ventilation area of 10,000mm2

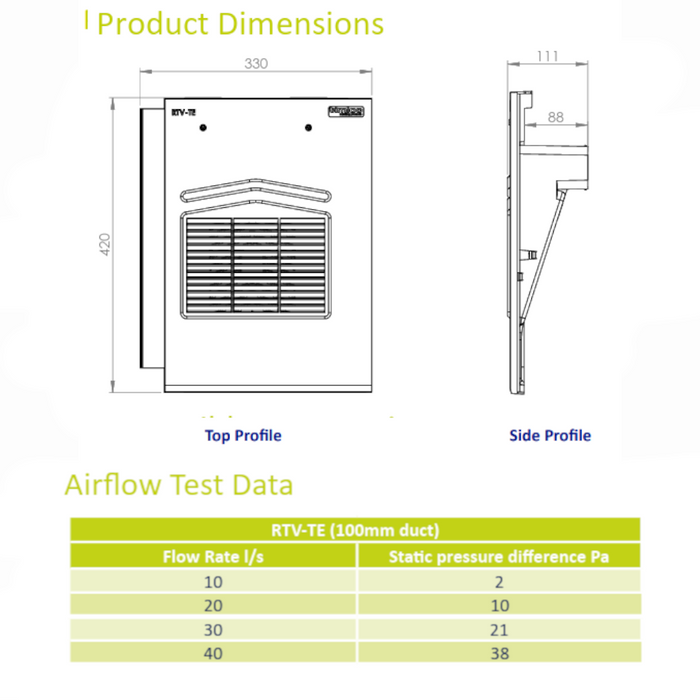

• Sized to replace one Thin Leading Edge tile to provide a continuous visual appearance along the roof when viewed at all levels
• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris
• Integrated clips to ensure a secure fit to surrounding roof tiles
• UV stabilised top for continuous exposure to sunlight
• Lightweight and easy to handle

Relevant Standards

• Independently tested by BRE for deluge and wind driven rain to PD CEN/ TR15601:2012
• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding - product specifications (+A1:2017)
• BS 5250: 2021 Management of moisture in buildings – Code of practice
• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice (+A2:2018)
• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
• Complies with all relevant sections of the Building Regulations 2010
• Satisfies all relevant NHBC requirements

Compatibility

• TLE large format tiles from all major manufacturers including:
• Marley Edgemere
• Redland Richmond
• Sandtoft TLE
• Russell Galloway

Material and Colour Choice

• Top - UV stabilised coloured injection moulded Polypropylene with textured finish
• Available Black
• Base – Black injection moulded Polypropylene

Accessories

• The 110mm Flexi-Pipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe
• Standard adapter (RTV-ADS) to attach the roof tile vent to 110mm ductwork
• Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI)

Datasheet

Thin Leading Edge Tile Vent
