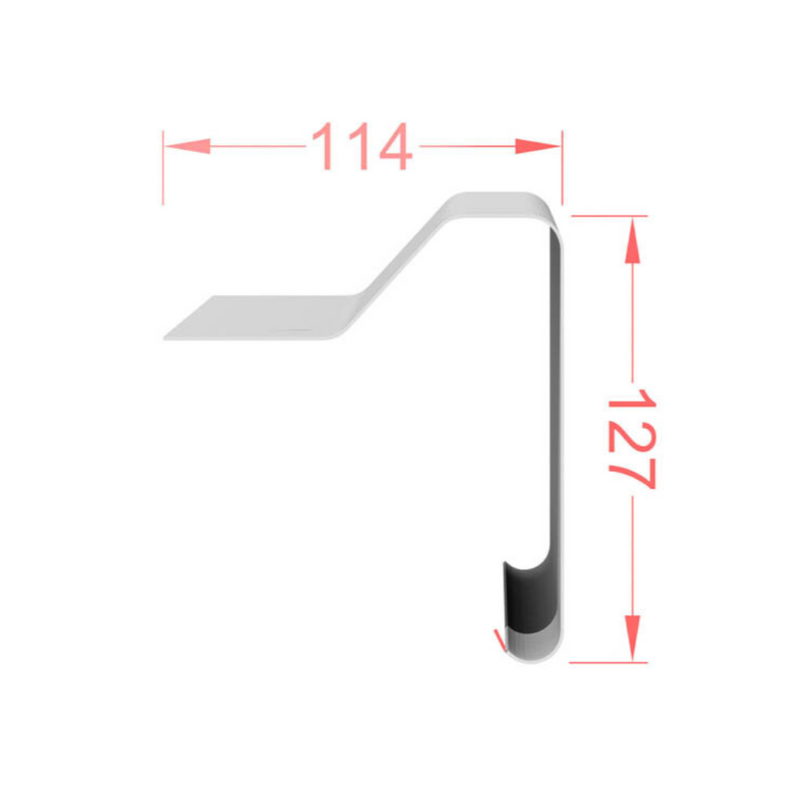

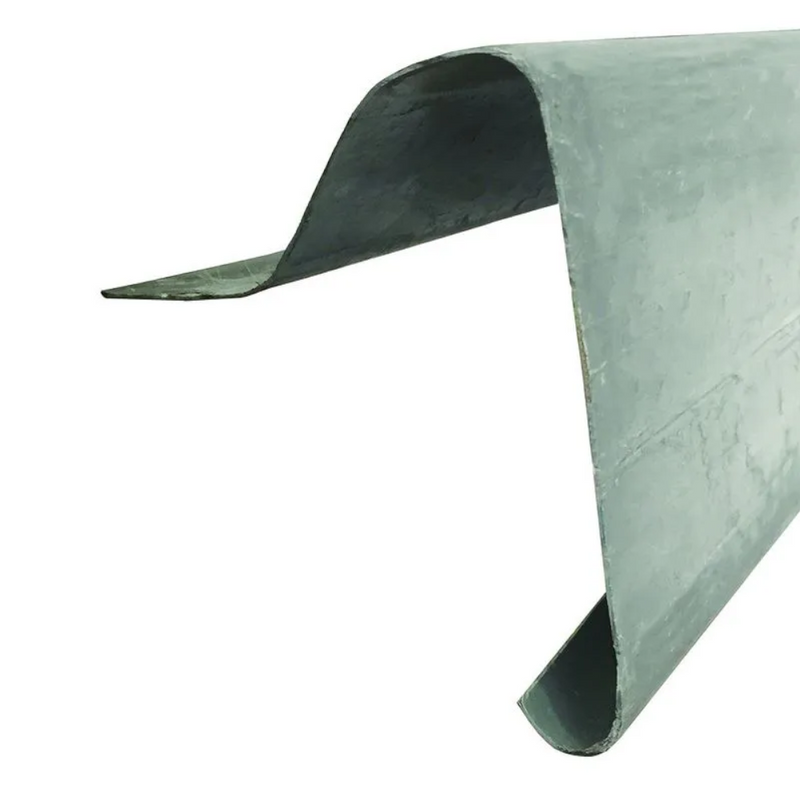

Cromar Standard Raised Edge Trim: 114mm x 127mm x3m

Cromar Standard Raised Edge Trim: 114mm x 127mm x3m

Standard raised edge trim, fitted to the roof edge to prevent water run off.

The Cromar Standard Raised Edge Trim is designed to be used on the non-drainage side of a flat roof to direct the flow of water off the substrate. Made for using on flat roofs as a component of the Pro GRP Glassfibre Roofing System.

Features & Benefits

• Fibreglass Raised Edge Trim (B260) - 3m Length
• Girth (the visible part of the trim) - 125mm.
• Depth (the fixing arm back onto the roof) - 130mm.
• These trims are fitted to the roof where water run off is not required.
• Compatible with C1 external and C4 internal universal corners
• Easy to use
• Suitable for use with Cromar PROGRP and Flexiglass Systems

Fitting Instructions

A single batten is fixed level with the top edge of the deck. Apply 30mm beads of trim adhesive to the batten every 300mm, rub the trim into place and nail through the top of the trim into the decking. Do not nail through the front of the trim.

If a ladder is likely to be leant against a B type trim for regular access to the roof, the trim will need to be reinforced to avoid deformation. The trim can either be doubled up by slotting a section of extra trim within the section where the ladder will be used or it can be reinforced with an extra layer of GRP laminate and then tissue to maintain a smooth finish. Alternatively, a wooden batten can be shaped and fitted into the ridge of the trim to ensure that it remains rigid.
