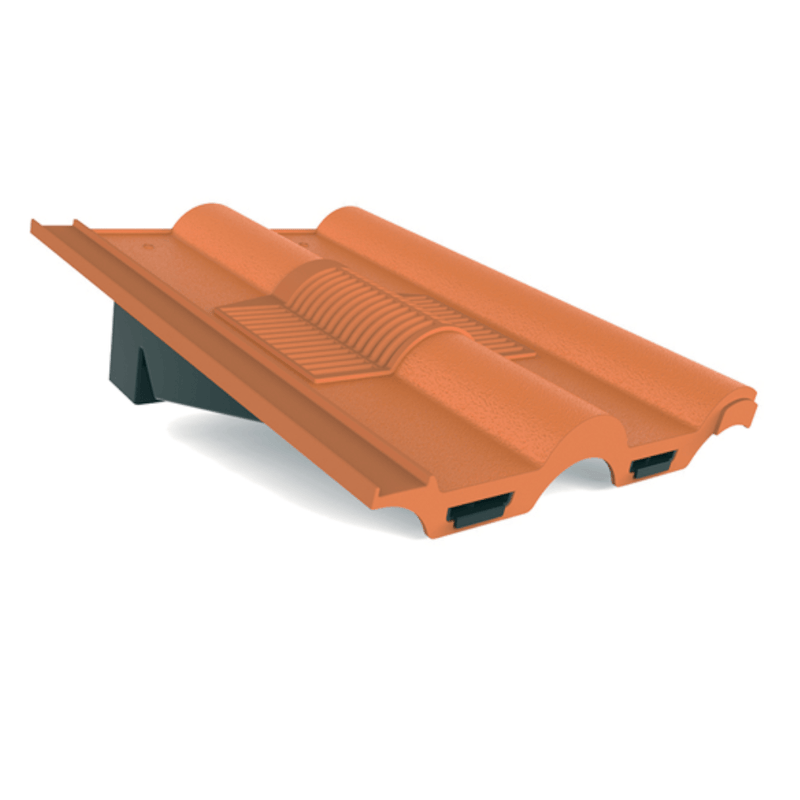

Manthorpe Double Roman Tile Vent (GTV-DR)

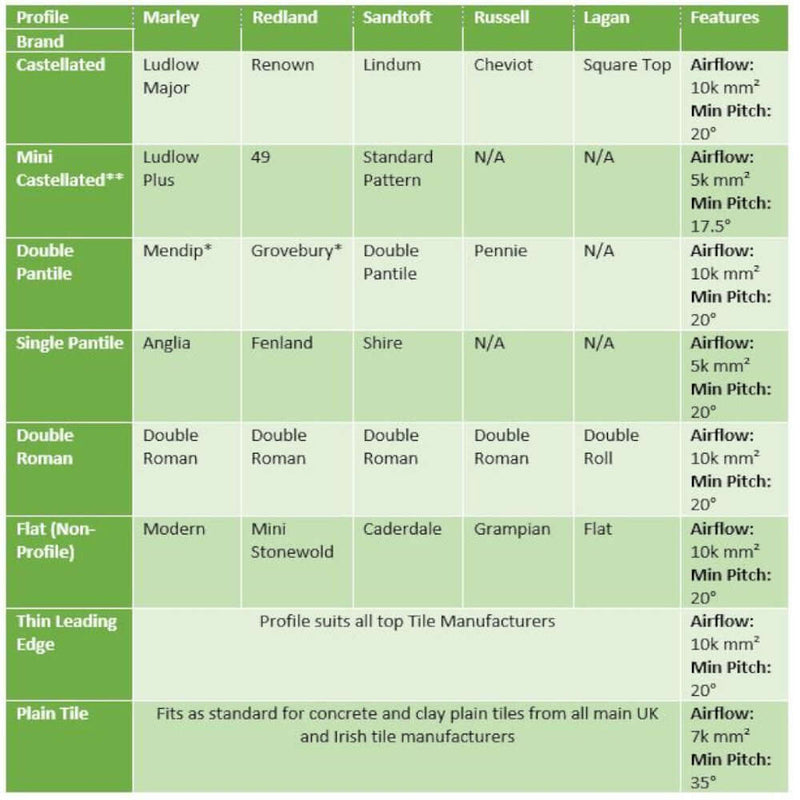

This Manthorpe Double Roman Tile Vent is compatible with the following manufacturers / tiles:
- Redland Double Roman.
- Marley Double Roman.
- Sandtoft Double Roman.
- Russell Double Roman.
- Lagan Double Roll.
From our latest range of roofing supplies, this Manthorpe Double Roman Tile Vent offers an incredibly neat and efficient, profiled roof vent solution to match a wide range of double roman roof tiles. These vent tiles are easy to install into the roof space. The roof vent is carefully designed to provide high-volume airflow, while channelling any incoming rainwater straight back out onto the roof.
The external grille is manufactured from uPVC, with 4mm slats to keep out insects and debris. The grille’s low-profile design is discreet, and barely visible from ground level. The grille feeds air into a polypropylene chamber which is specially angled to expel incoming rainwater back out onto the roof. The tiles feature two inbuilt channels to efficiently dispose of incoming water. A 48.25mm outlet on the rear of the tile delivers 10,000mm2 of free-flowing air into the roof space.
This in-line, Manthorpe roof vent is a simple, attractive solution that can be easily adapted for mechanical extraction or soil stack termination. As part of our comprehensive range of roofing supplies we stock Manthorpe Double Roman Tile Vents in four classic colours. This compact vent is compatible with double roman tile profiles from five leading manufacturers.
Features & Benefits:

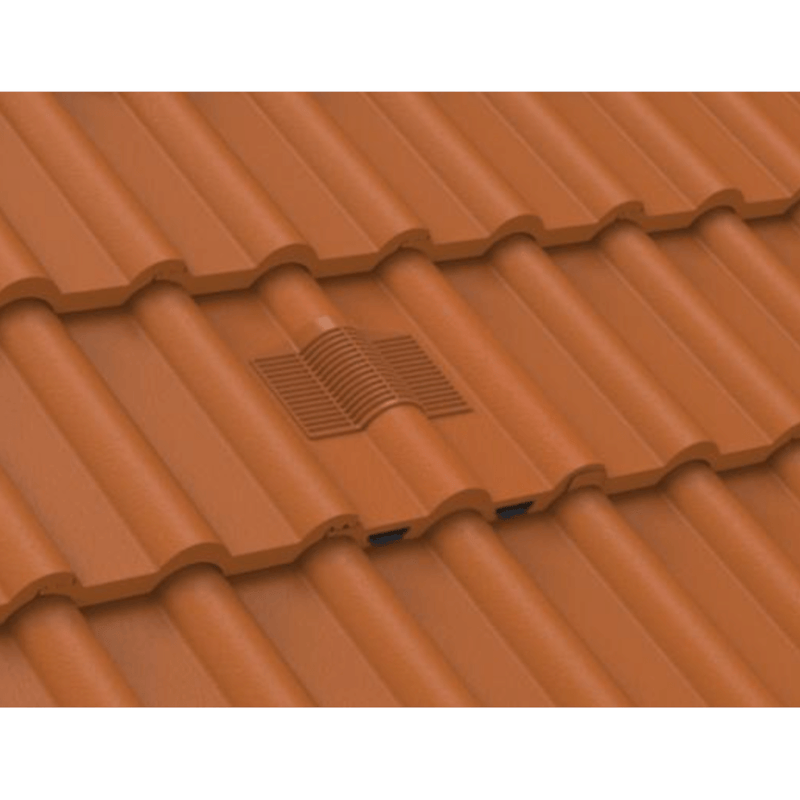

- Discreet, low profile, almost invisible from ground level.
- Easy to fit without cutting the rafters.
- Compatible with double roman tile profiles from most manufacturers.
- Suitable for roof pitches down to 20 degrees.
- Long life expectancy.
- Manufacture: uPVC top, injection moulded polypropylene air and wastewater outlets.
- Product Code: GTV-DR.
- Brand: Manthorpe.

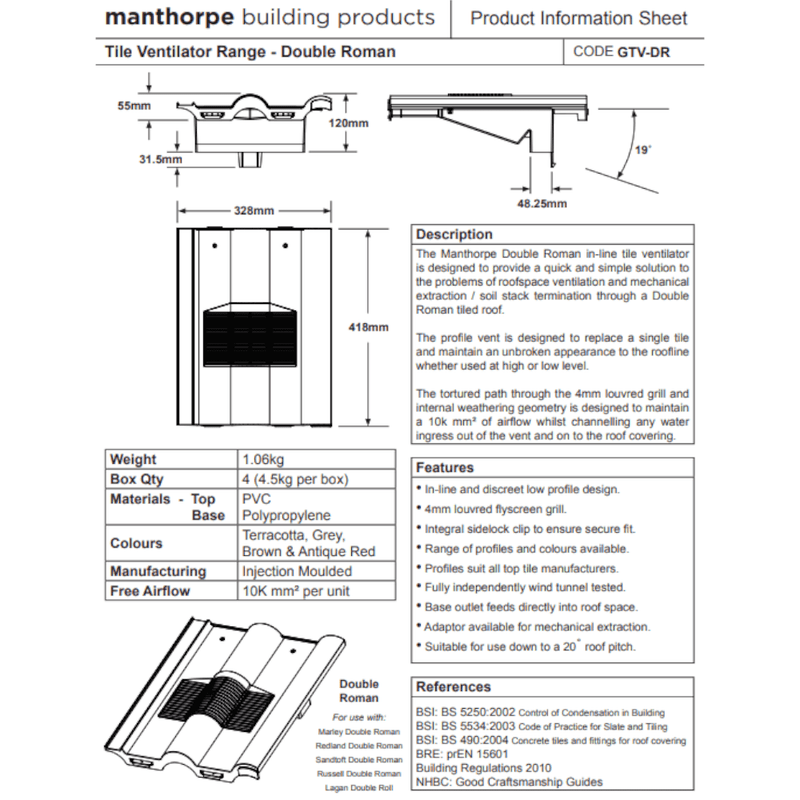

- Size: 328mm x 418mm.
- Air Flow: 10,000mm2.

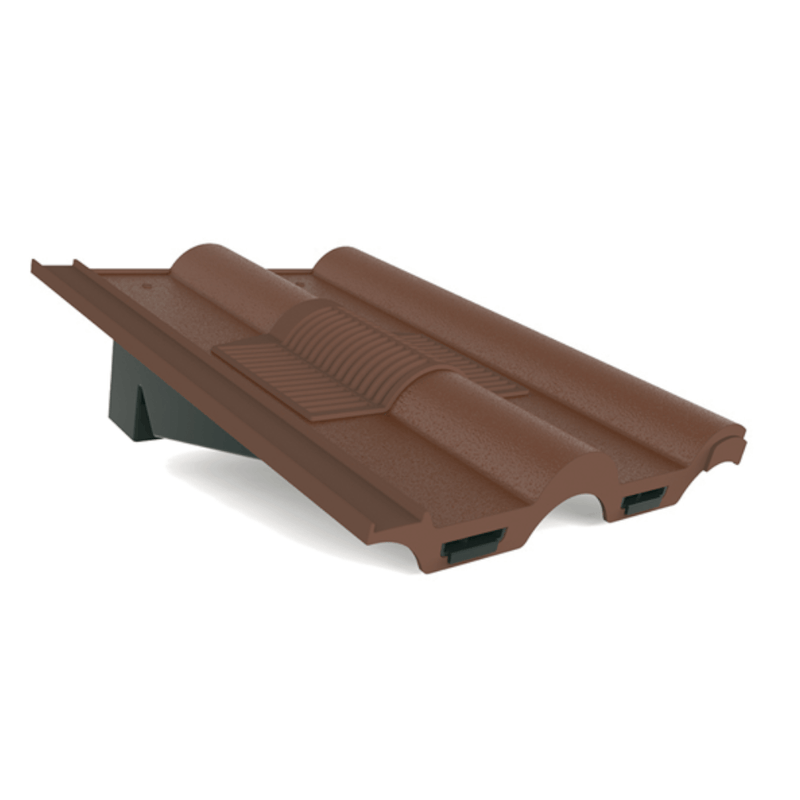

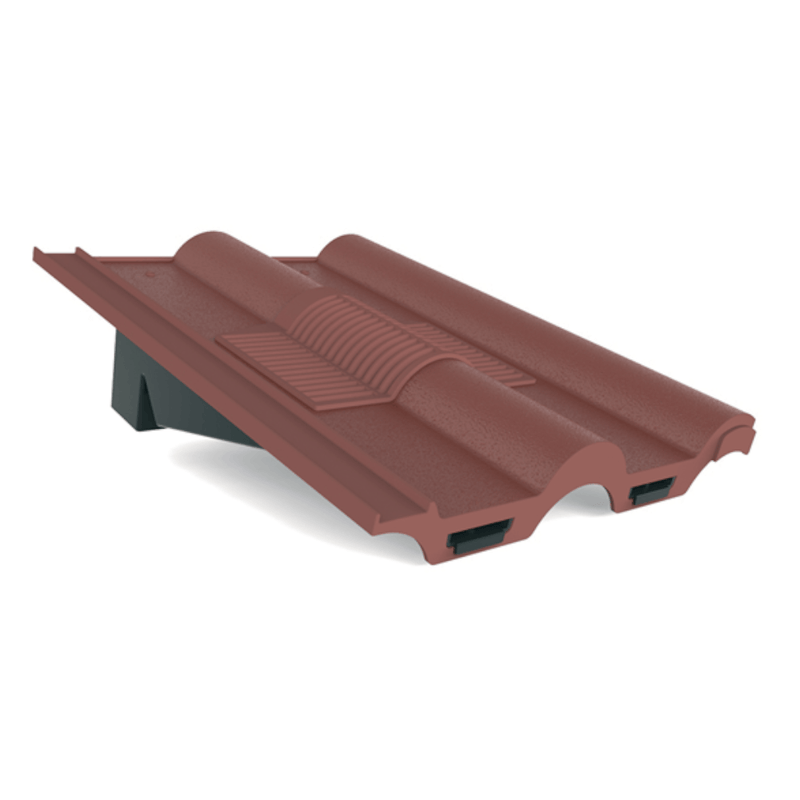

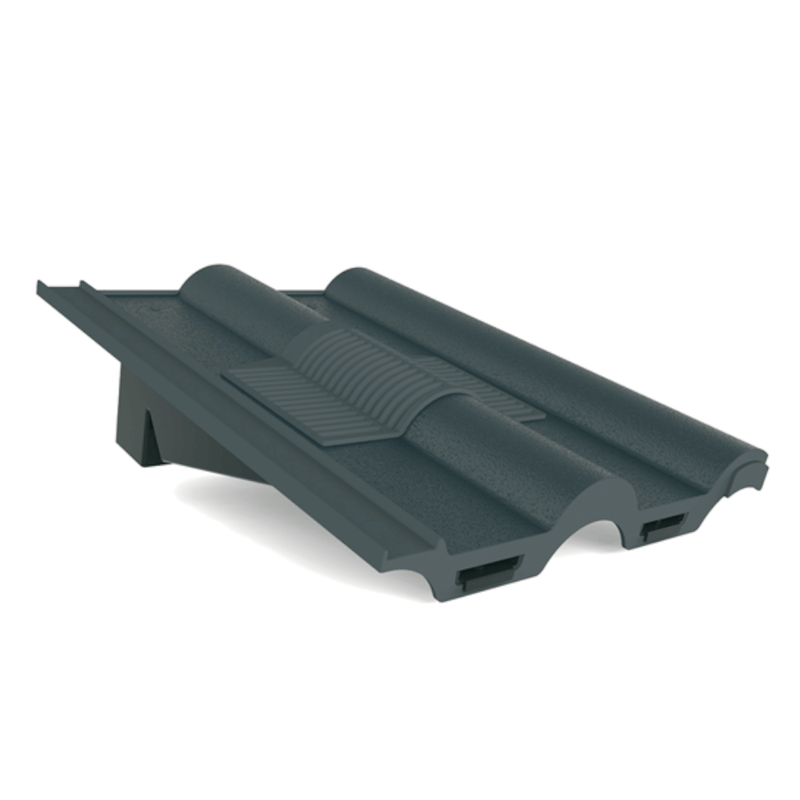

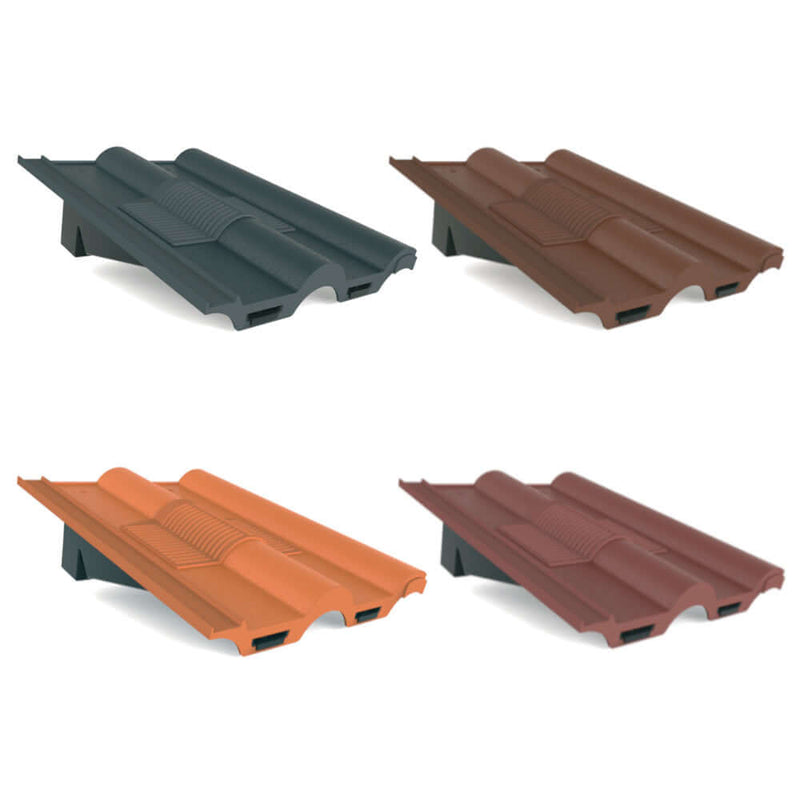

- Colous: Dark Brown, Slate Grey, Antique Red, and Terracotta.
- Weight: 1.06kg per tile.
- Standards: BS 5250, BS 5534, BS 490, BRE: prEN 15601, Building Regulations 2010, NHBC: Good Craftsmanship Guides.
- Recyclable.
Buyer's notes:

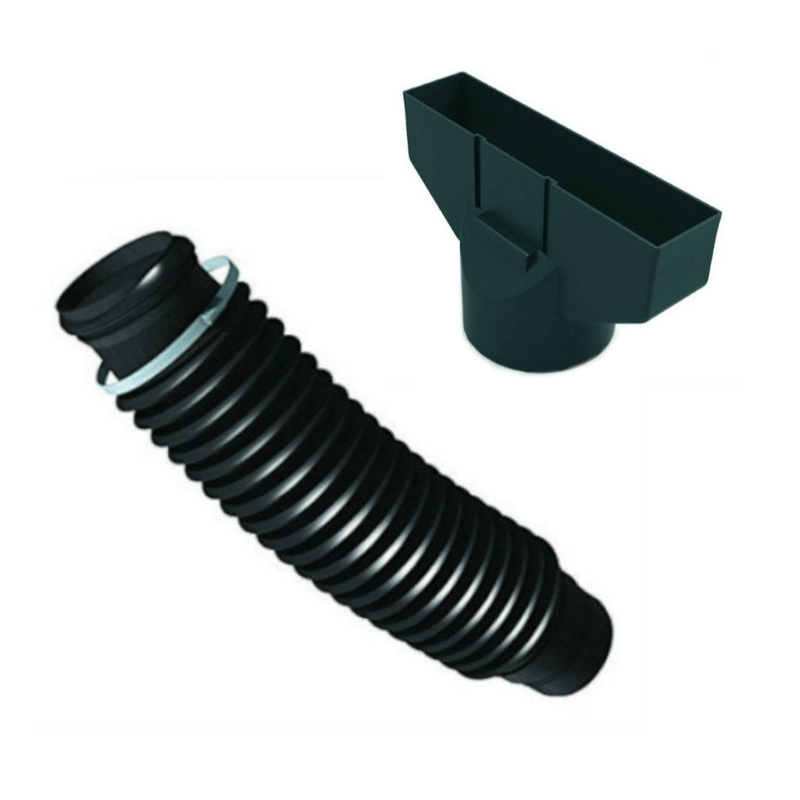

This Manthorpe Double Roman can be adapted for soil stack termination or mechanical extraction or please choose the option to add an adaptor and/or flexi-pipe.
