Manthorpe Hip Support Tray: 1.1m

Pay in 3 interest-free payments on purchases from £30 - £2,000 with PayPal. Learn More

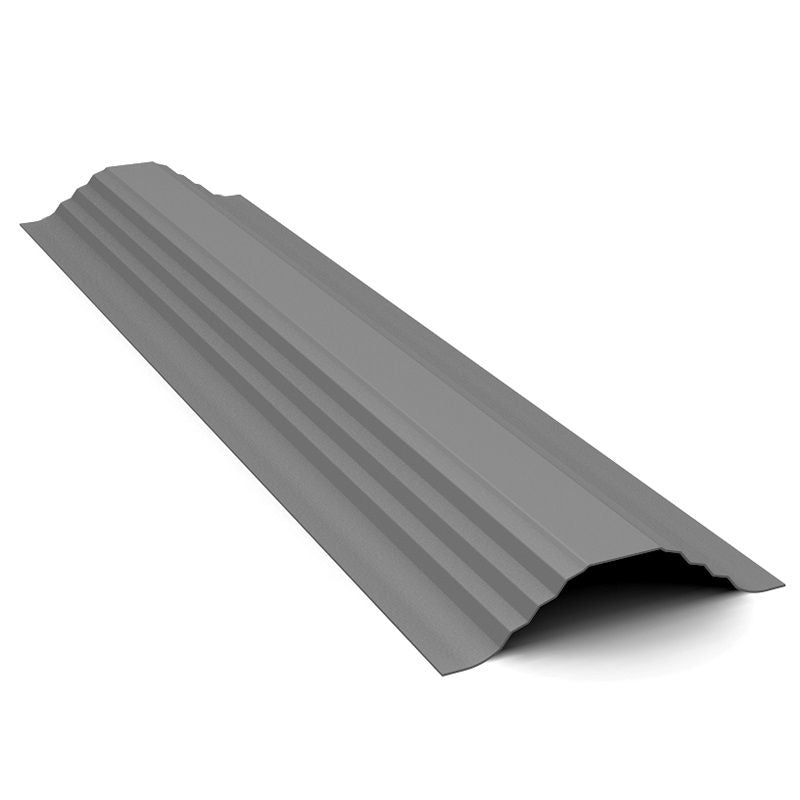

Manthorpe Hip Support Tray: 1.1m
A crucial part of the Manthorpe Dry Hip System, this pack includes ten Manthorpe 1100mm Hip Support Trays. The trays are positioned above the Vent Roll, serving as level, straight platforms to support tiles along the roof hip. This is especially important when dealing with profiled or deep flat tiles.
Easily adaptable, these trays can be cut with a sharp utility knife to the desired length or shaped to angles at the eaves of the hip and the ridge-hip junction. Trays should extend over the hip trays beneath them by 100mm and can be secured to the previously installed hip battens with the appropriate stainless steel nails.
Features & Benefits
- A crucial part of the Manthorpe Dry Hip System

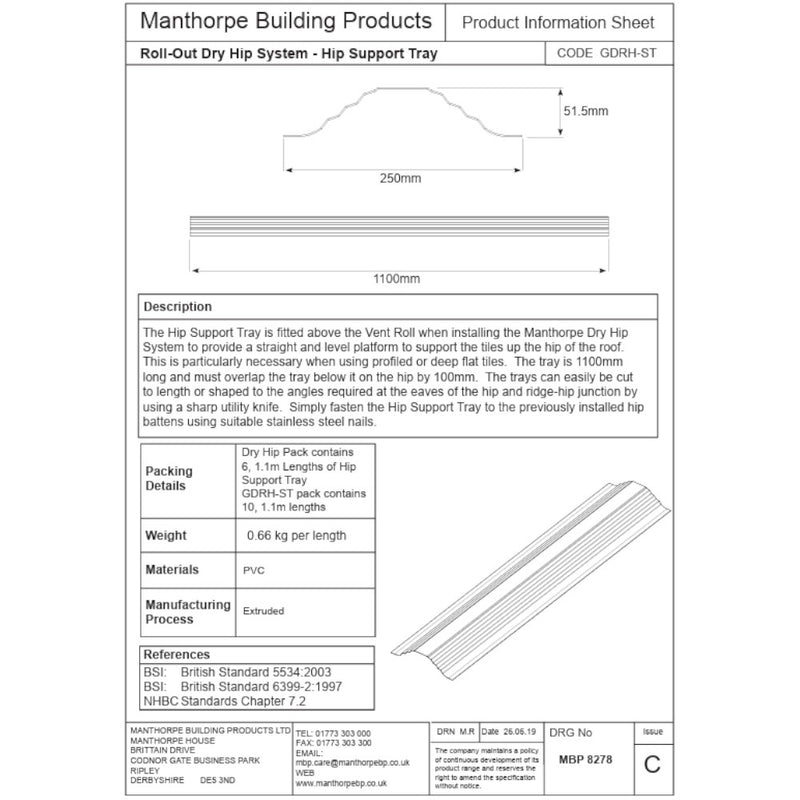

- Includes a Manthorpe 1100mm x 250mm x 52mm Hip Support Trays

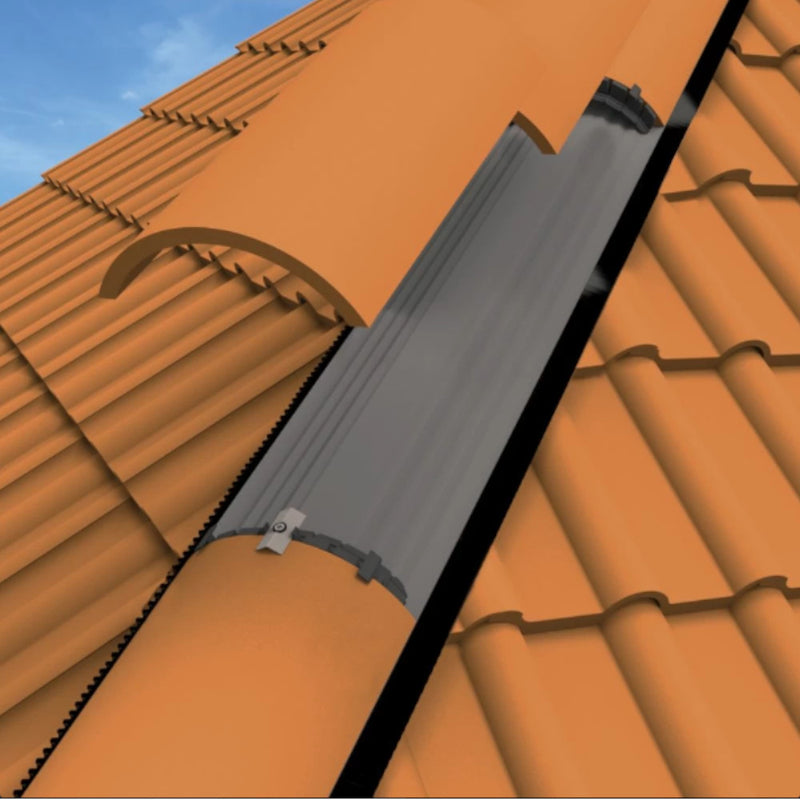

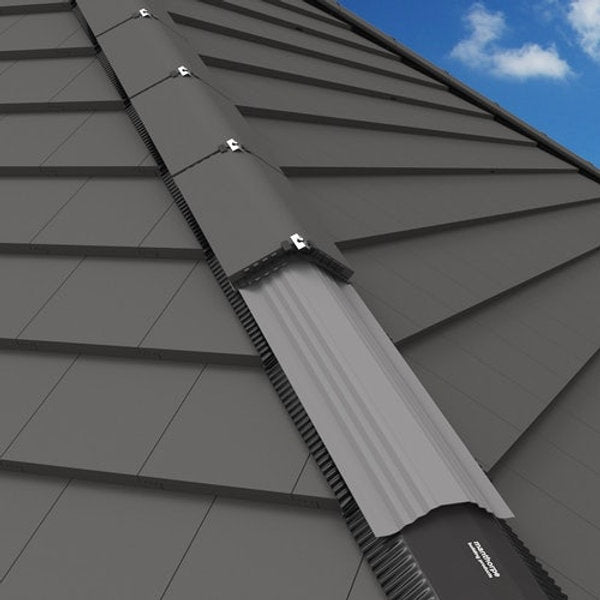

- Positioned above the Vent Roll, serving as level platforms to support tiles along the roof hip
- Easily cut with a sharp utility knife to the desired length or shaped to angles
