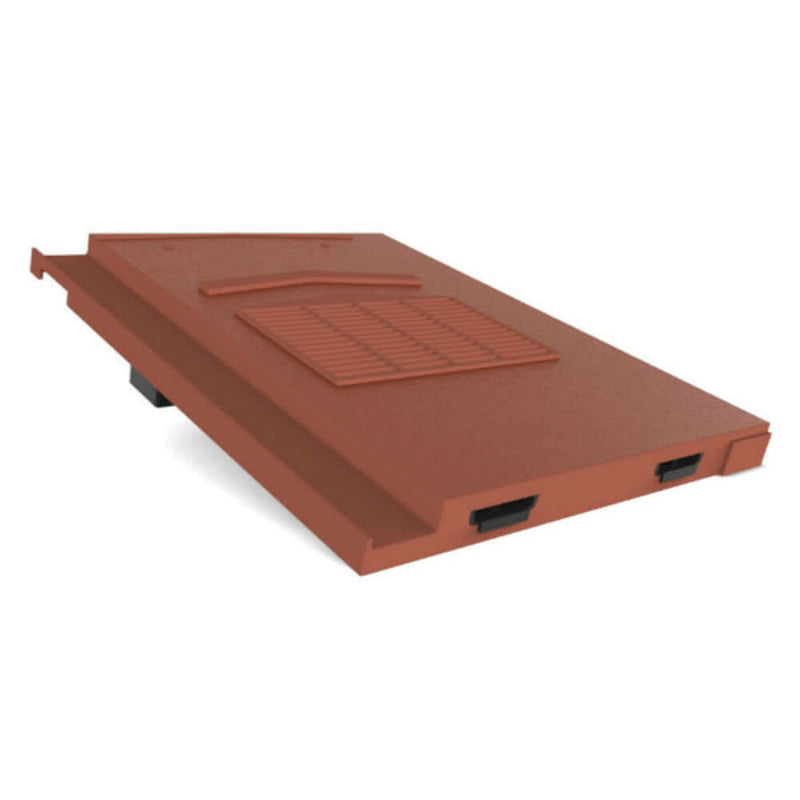

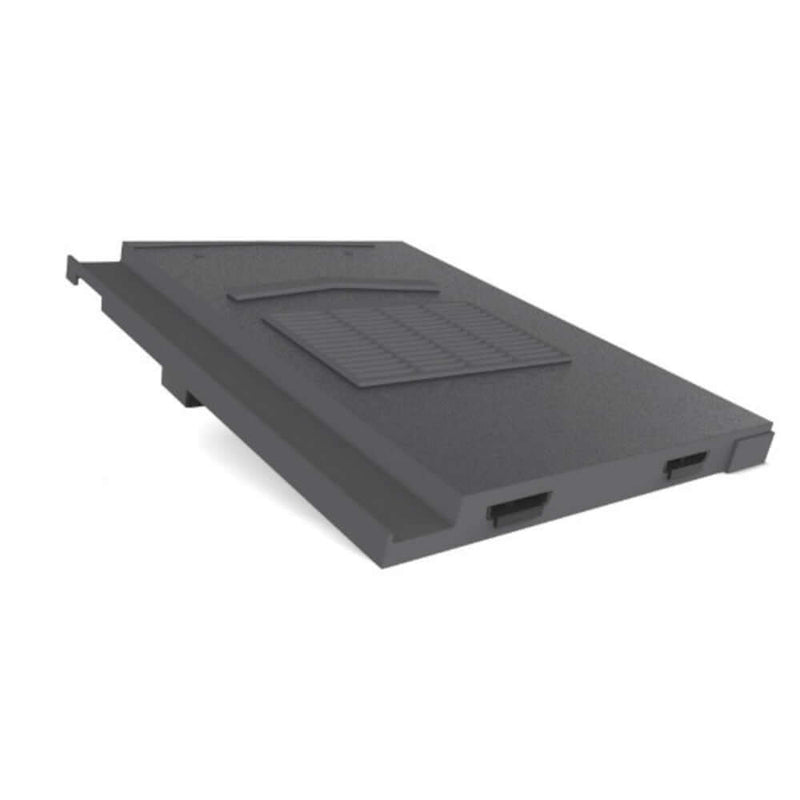

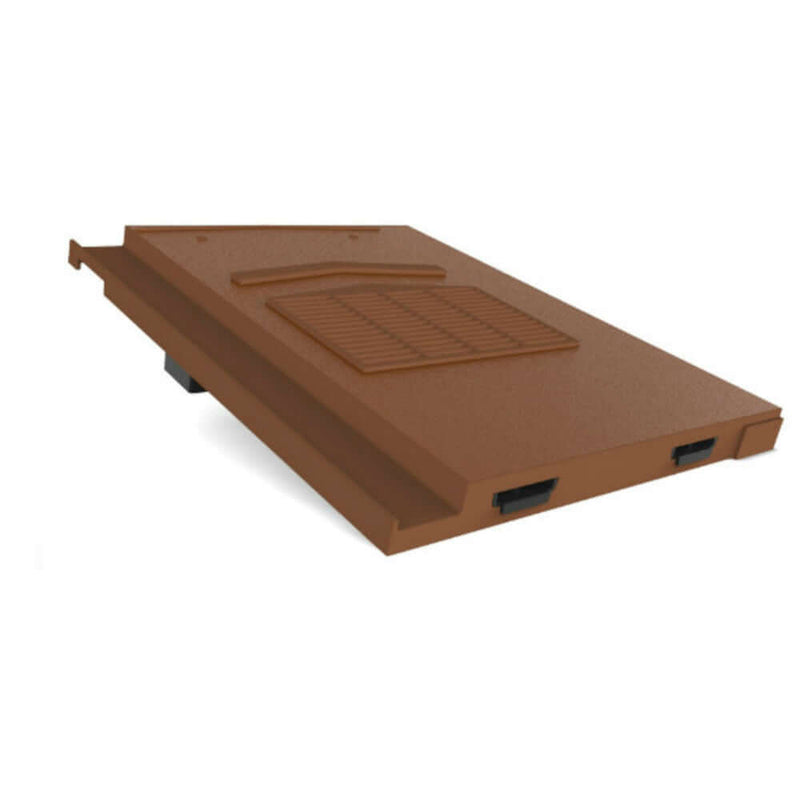

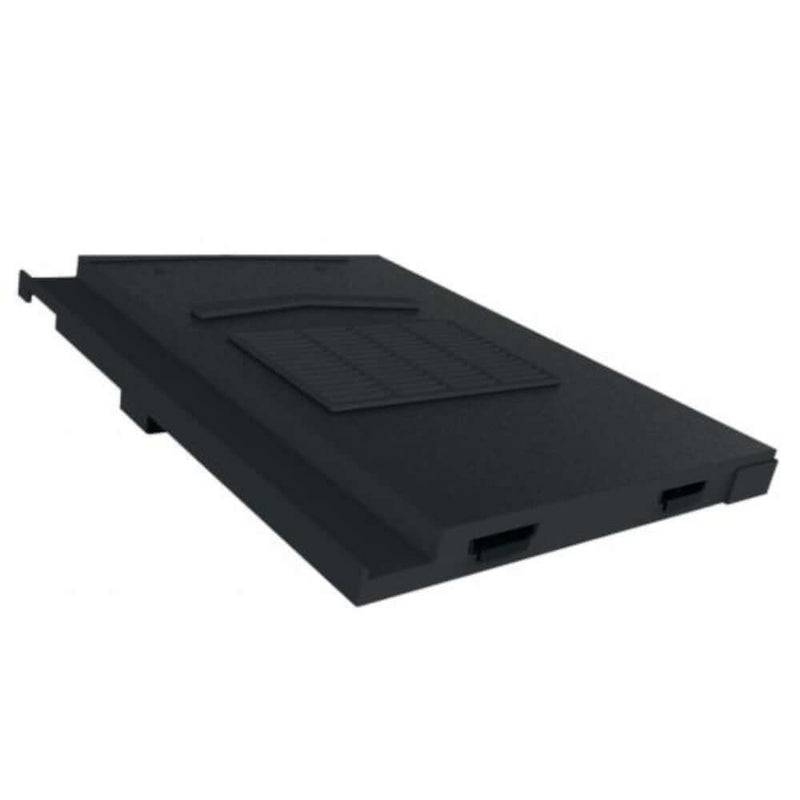

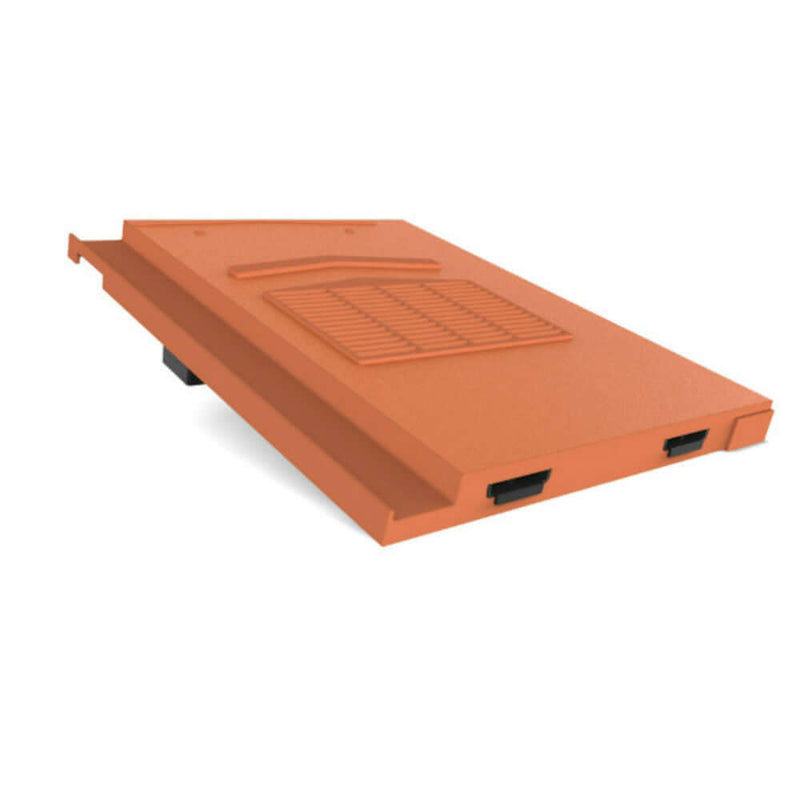

Manthorpe Non-Profile Tile Vent (GTV-NP)

SKU MANTVENT-NP-ANTR/LWA
Original price £34.95 - Original price £34.95
Original price
£34.95
£34.95 - £34.95
Current price £34.95
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Low stock
Availability:
Low stock
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped

This Manthorpe Non-Profile Tile Vent is compatible with the following manufacturers / tiles:

  • Redland Mini Stonewold.
  • Marley Modern.
  • Sandtoft Caderdale.
  • Russell Grampian.
  • Lagan Flat.

From our range of compact roof vents, this Manthorpe Non-Profile Vent can be used as a simple, ventilated replacement for a flat, concrete or clay roof tile. Out of the box, this easy to fit roof vent feeds a large volume of air directly into the roof space. A specially angled chamber on the reverse of the vent channels any rainwater ingress straight out onto the roof.

The face of the roof vent features a special lip to divert rainwater from the grille. The grille itself is particularly discreet, being almost unnoticeable from ground level. Horizontal uPVC slats are spaced at 4mm, to keep insects, birds, and debris out of the roof. Any rainwater that enters the grille is immediately diverted through twin, polypropylene channels onto the roof below the tile. An ample, 48.25mm outlet is provided on the underside to ventilate the roof space with 10,000mm2 of fresh air.

Manthorpe’s Non - Profile Vent is a particularly attractive ventilation solution on a modern build. These in-line roof vents are easily adapted to handle soil stack ventilation or mechanical extraction. These vents are suitable for pitched roofs as low as 20 degrees, and are fully compatible with standard, flat profile, concrete, and clay tiles from most of the main UK manufacturers.

Ashbrook Roofing also stock a full range of fixings and other roofing supplies to match this superb range of Manthorpe roof vents.

Features & Benefits:

  • Low profile, discreet, ventilated replacement for a standard, concrete tile.
  • Simple, secure installation without cutting the rafters.
  • Compatible with flat, interlocking tiles from most manufacturers.
  • Suitable for low roof pitches down to 20 degrees.
  • Long life expectancy.
  • Manufacture: Injection moulded polypropylene air and water outlets, uPVC top.
  • Product Code: GTV-NP.
  • Brand: Manthorpe.

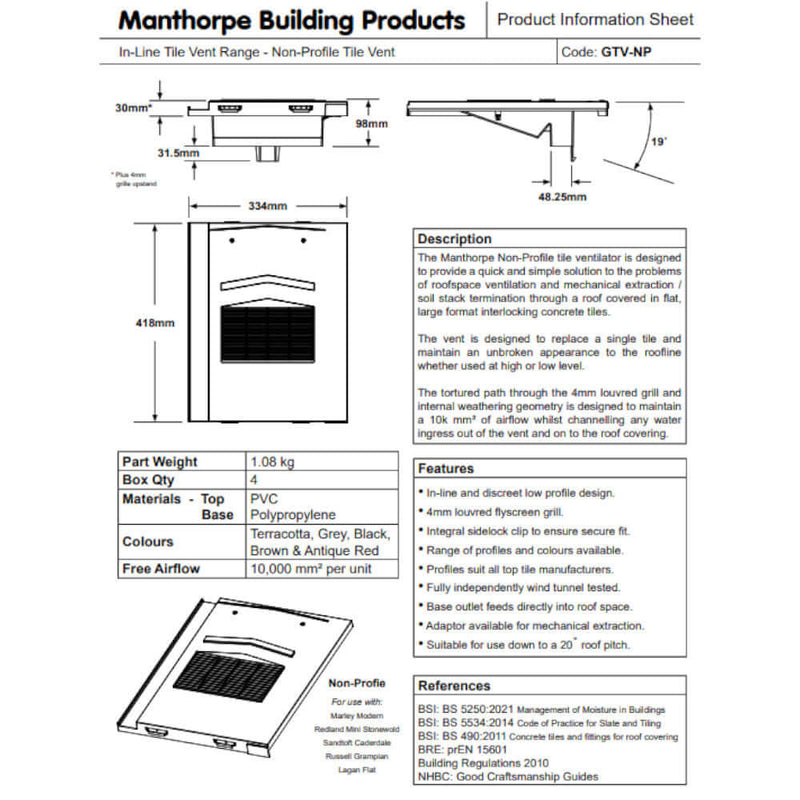

  • Size: 334mm x 418mm.
  • Air Flow: 10,000mm2.

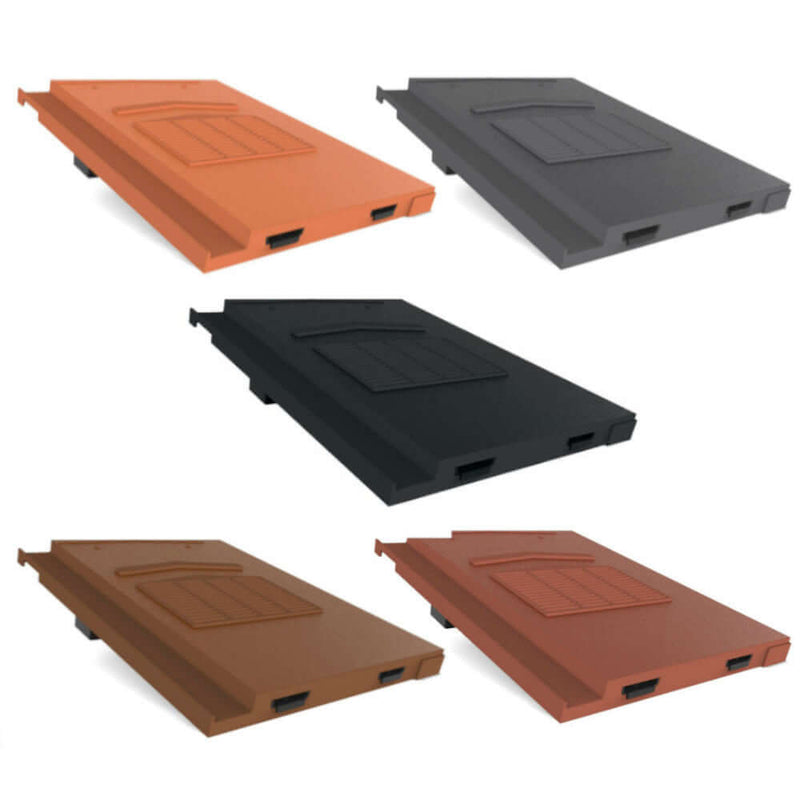

  • Colour: Slate Grey, Terracotta, Antique Red, and Dark Brown.
  • Weight: 1.08kg per tile.
  • Standards: BS 5250, BS 5534, BS 490, BRE: prEN 15601, Building Regulations 2010, NHBC: Good Craftsmanship Guides.
  • Recyclable.

Buyer's notes:
This Manthorpe Non-Profile Vent can be adapted for soil stack ventilation or mechanical extraction or please choose the option to add an adaptor and /or flexi-pipe.
