McCann Thin Leading Edge Tile

by McCann
SKU MCN/THLEAD/ANTH
Original price £1.50 - Original price £1.50
Original price
£1.50
£1.50 - £1.50
Current price £1.50
Availability:
in stock, ready to be shipped
Request a quote

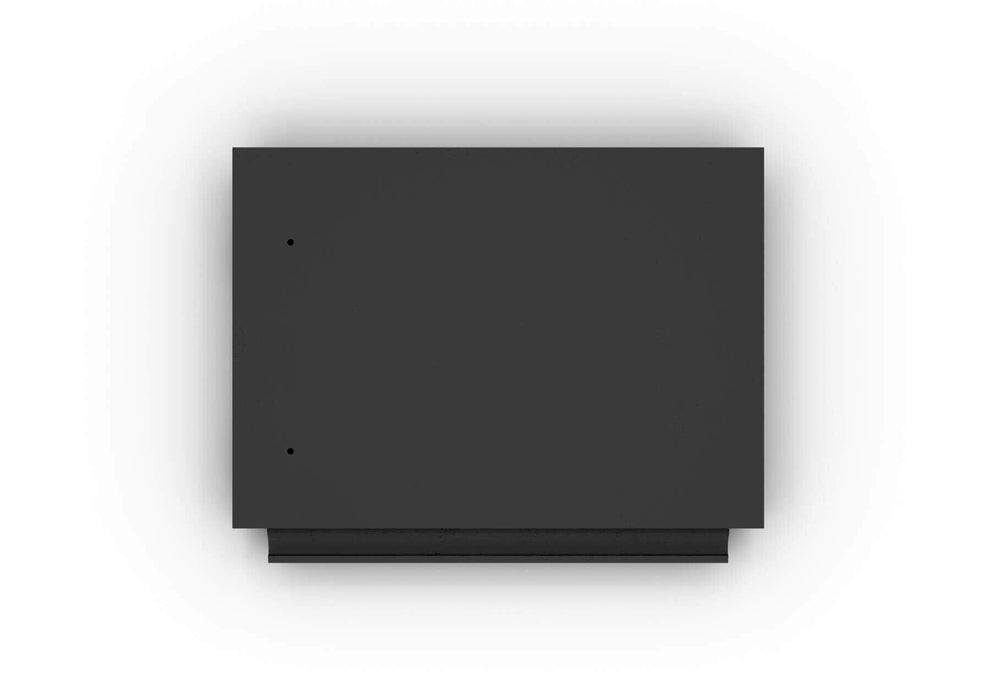

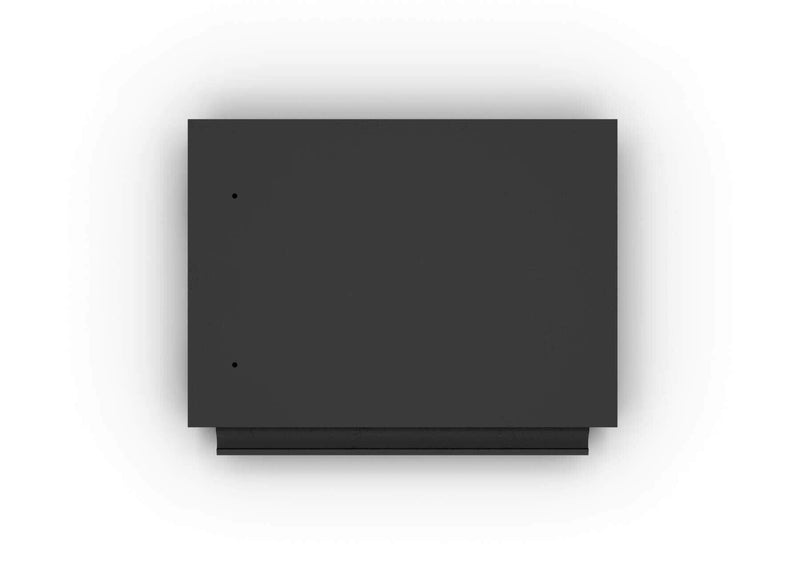

McCann Thin Leading Edge Tile

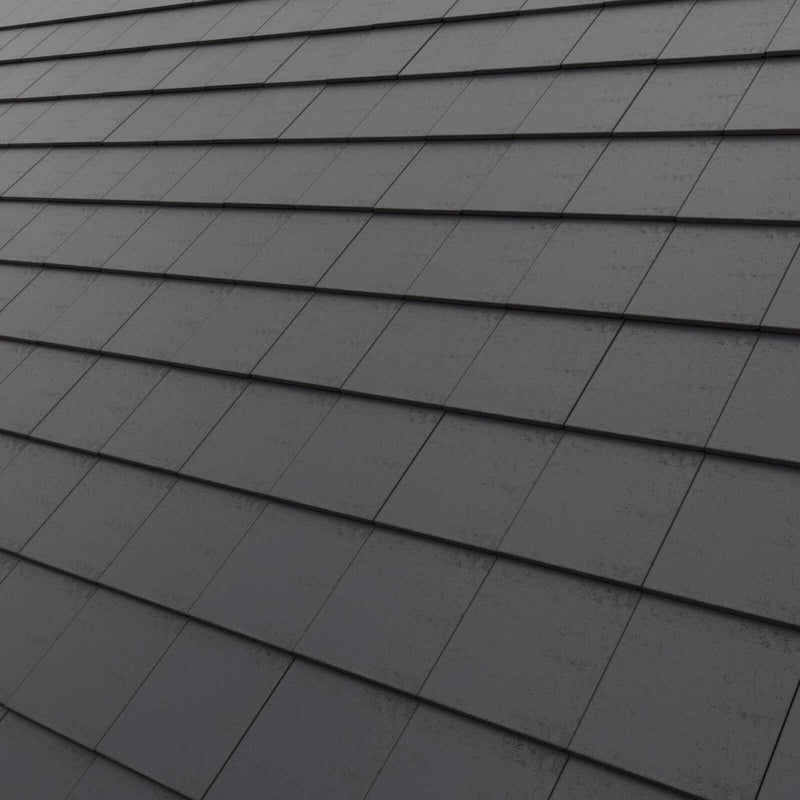

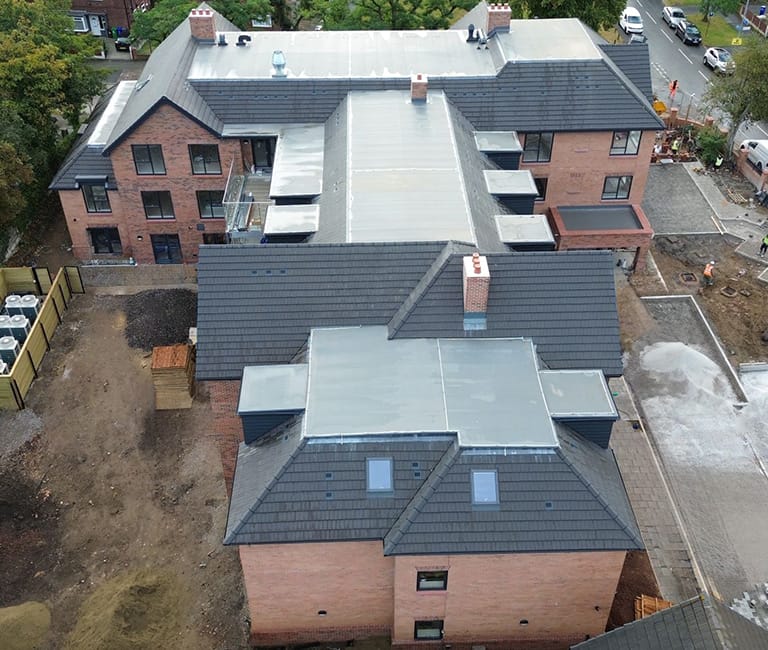

A thinner leading edge interlocking concrete roof tile which gives a slate appearance when laid half broken bonded.

Details:

  • Size – 420 x 334mm
  • Weight – 4.7kg
  • Thickness – 19.5mm
  • Tiles Per Pallet – 228
  • Tiles Per Band – 38
  • Weight of Pallet – 1086kg

Technical Information:

  • Minimum Headlap – 75mm
  • Maximum Gauge – 345mm
  • Minimum Pitch – 22.5° (75mm Headlap) 17.5° (100mm Headlap)
  • Cover Width – 305mm
  • Nail Size – 40mm x 3.35mm Slate Nails
  • Batten Size – 50 x 25mm for rafters not exceeding 600mm
  • Covering Capacity – 75mm headlap – 9.7 Tiles /m² (Tiles /m²) 100mm headlap – 10.5 Tiles /m²

Datasheets:

Thin Flat Tile

}
