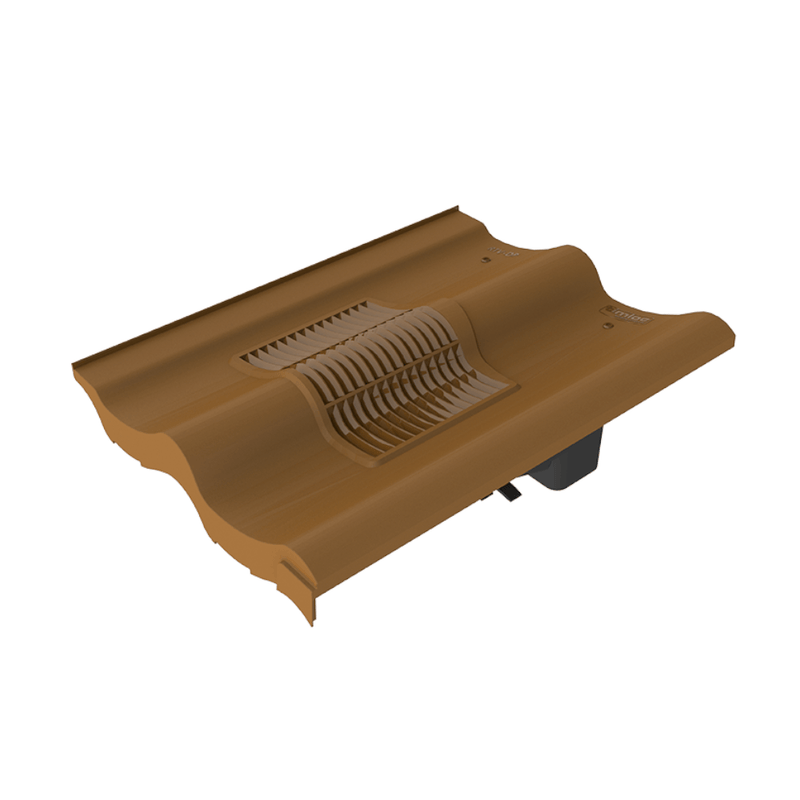

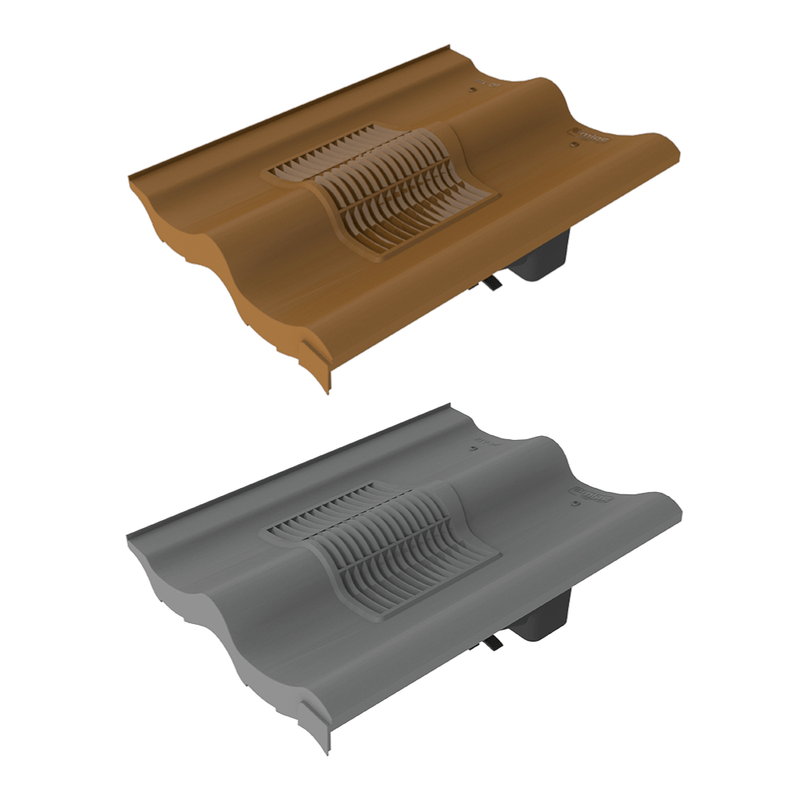

Timloc Double Pantile Tile Vent

Timloc Double Pantile Tile Vent

Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Uses

• On roofs with Double Pantile profile roof tiles

• Enables ventilation directly into a roof space

• Can also be connected to a ducted ventilation system inside the building

Features and Benefits

• Suitable for roofs with a minimum pitch of 20°

• Free ventilation area of 10,000mm2

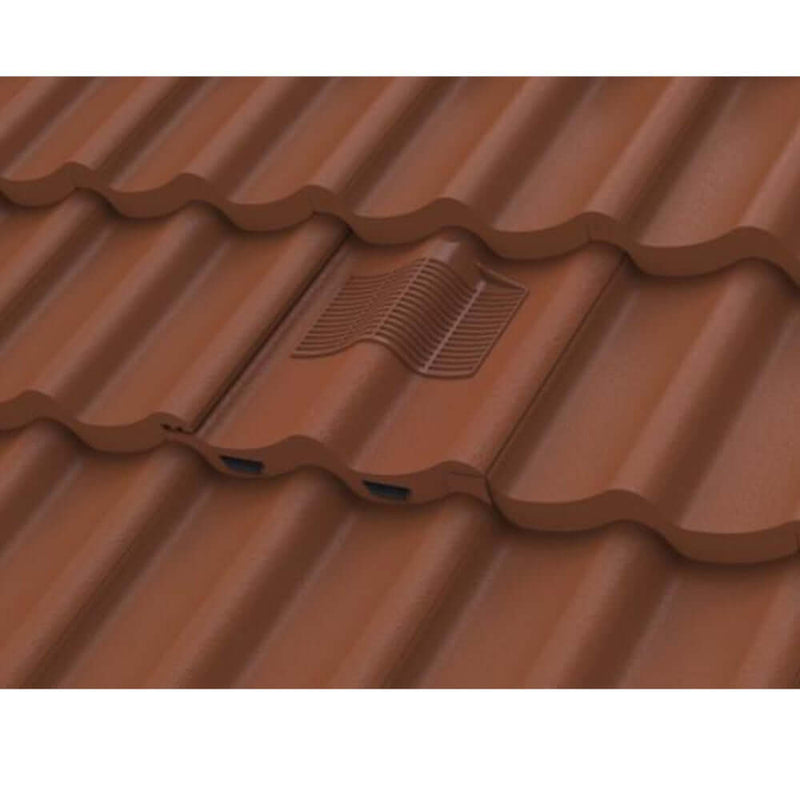

• Sized to replace one Double Pantile tile to provide a continuous visual appearance
• along the roof when viewed at all levels

• Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening

• 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris

• Integrated clips to ensure a secure fit to surrounding roof tiles

• UV stabilised top for continuous exposure to sunlight

• Lightweight and easy to handle

• Size - Length 422mm - Width 332mm - Depths 96mm / 145mm

Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding product specifications (+A1:2017)

• BS 5250: 2021 Management of moisture in buildings Code of practice

• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018)

• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015

• Complies with all relevant sections of the Building Regulations 2010

• Satisfies all relevant NHBC requirements

Datasheets:

Double Pantile Roof Vent
