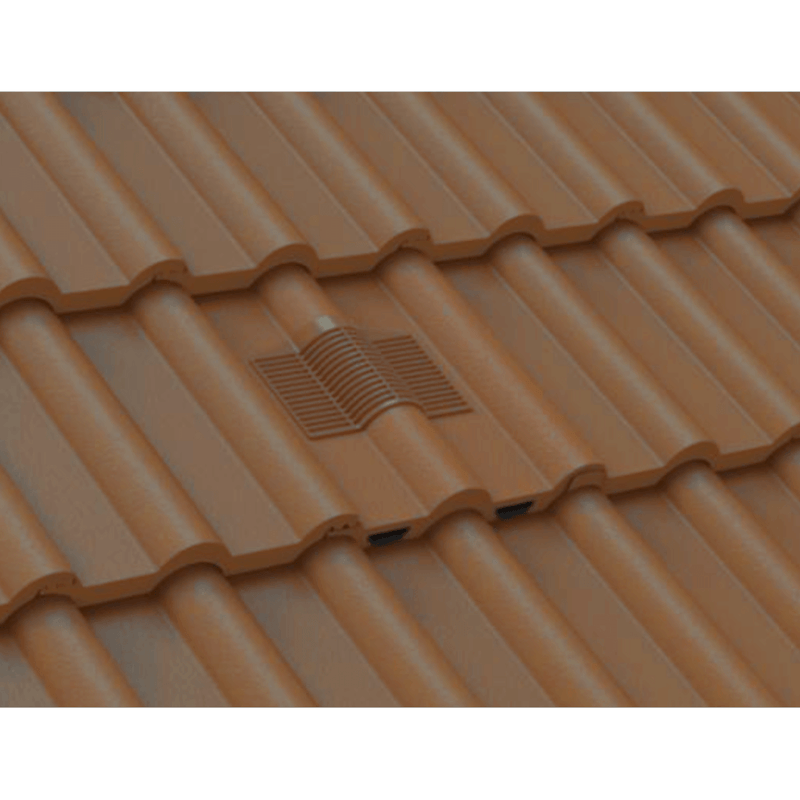

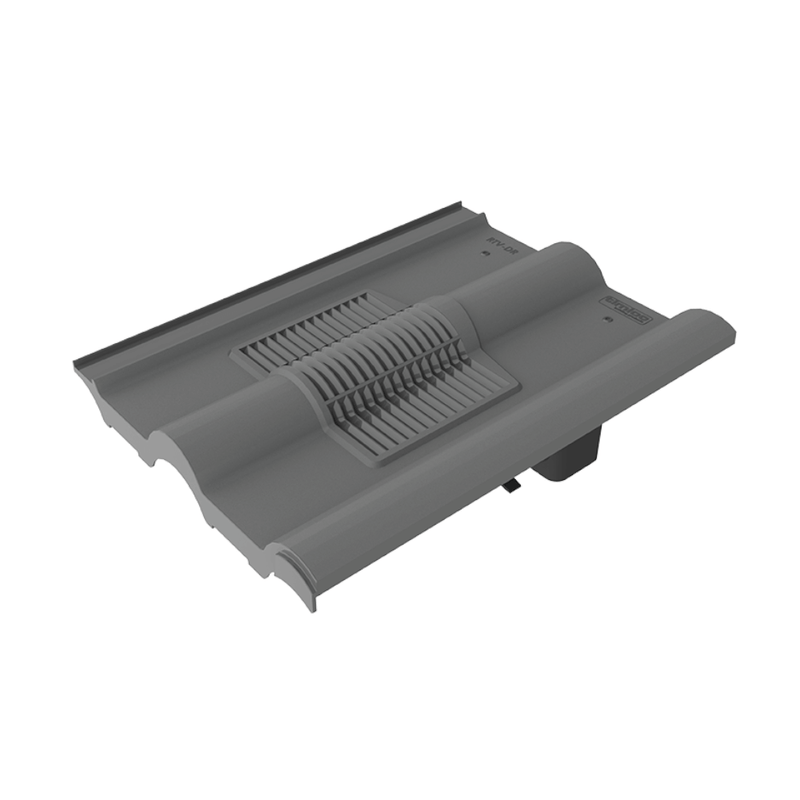

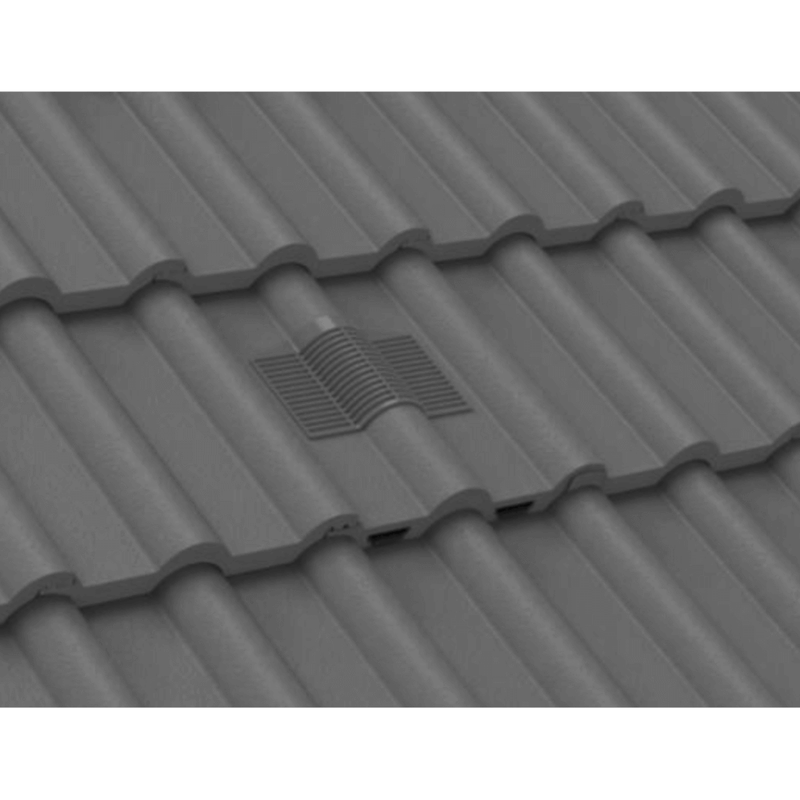

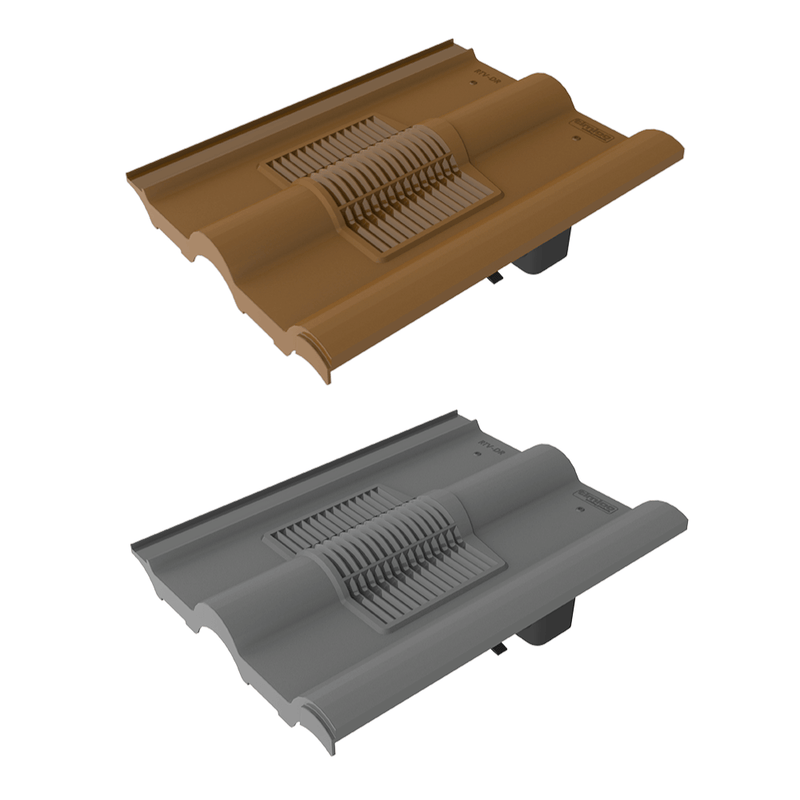

Timloc Double Roman Tile Vent
Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.
Uses
- On roofs with Double Roman profile roof tiles
- Enables ventilation directly into a roof space
- Can also be connected to a ducted ventilation system inside the building
Features & Benefits:
- Suitable for roofs with a minimum pitch of 20 °
- Free ventilation area of 10,000mm2
- Sized to replace one Double Roman tile to provide a continuous visual appearance along the roof when viewed at all levels
- Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
- 4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris Integrated clips to ensure a secure fit to surrounding roof tiles
- UV stabilised top for continuous exposure to sunlight Lightweight and easy to handle
Relevant Standards
- BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding product specifications (+A1:2017)
- BS 5250: 2021 Management of moisture in buildings Code of practice
- BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018) Manufactured to
- BS EN ISO 9001:2015 and BS EN ISO 14001:2015 Complies with all relevant sections of the Building Regulations 2010
- Satisfies all relevant NHBC requirements
Compatibility
Double Roman large format tiles from all major manufacturers including:
Marley Double Roman
Redland 50 Double Roman
Russell Double Roman
Sandtoft Double Roman
Logan Double Roll
Marley Double Roman
Redland 50 Double Roman
Russell Double Roman
Sandtoft Double Roman
Logan Double Roll
}
