Timloc Mini Castellated Tile Vent, Brown

by Timloc
Original price £25.74 - Original price £25.74
Original price
£25.74 - £25.74
Current price £25.74
in stock, ready to be shipped

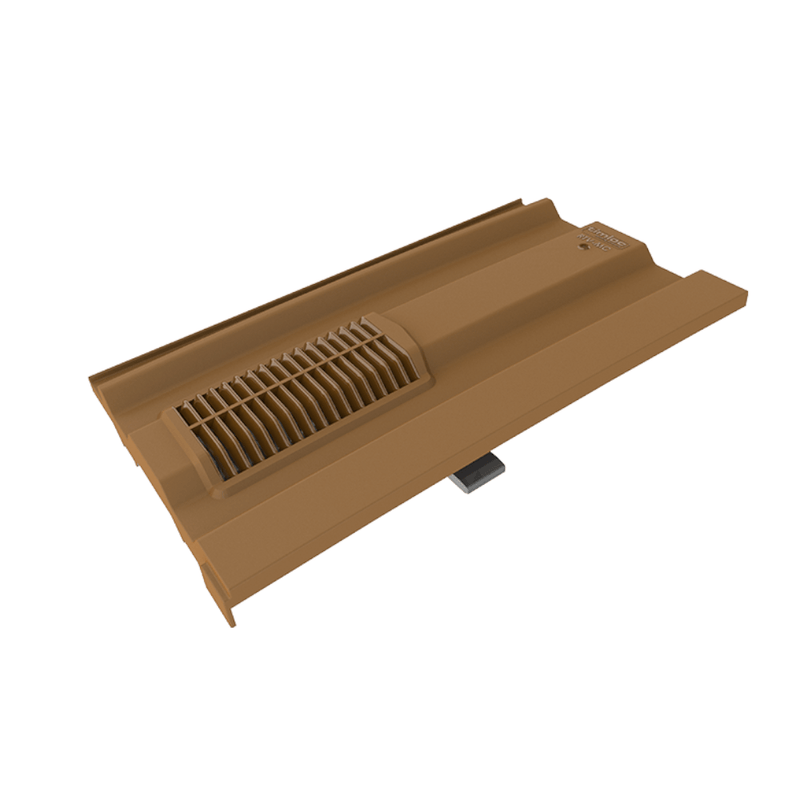

Timloc Mini Castellated Tile Vent, Brown

Profiled roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system Uses: On roofs with Mini Castellated roof tiles Enables ventilation directly into a roof space Can also be connected to a ducted ventilation system inside the building

Features & Benefits:
-Suitable for roofs with a minimum pitch of 17.5 °
-Free ventilation area of 5,000mm2
-Sized to replace one Mini Castellated tile to provide a continuous visual appearance along the roof when viewed at all levels Provides a 110mm duct connection as standard
-Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening
-4mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris
-Integrated clips to ensure a secure fit to surrounding roof tiles
-UV stabilised top for continuous exposure to sunlight
-Lightweight and easy to handle

Relevant Standards:
-BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding – product specifications (+A1:2017)
-BS 5250: 2021 Management of moisture in buildings Code of practice
-BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding code of practice (+A2:2018)
-Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
-Complies with all relevant sections of the Building Regulations 2010
-Satisfies all relevant NHBC requirements

-Mini Castellated small format tiles from all major manufacturers including:
-Marley Ludlow Plus
-Redland 49
-Sandtoft Standard Pattern
-Forticrete V2

Material & Colour:
-Top UV stabilised coloured injection moulded Polypropylene with textured finish
-Available in Terracotta, Brown, Grey, Red and Black Base – Black injection moulded Polypropylene

-The 110mm Flexipipe (RTV-KIT1) can be used to aid connection to ventilation duct or soil vent pipe
-Can be connected to 100/110/125/150mm duct sizes when combined with the multi adapter (RTV-ADMULTI)

Mini Castellated Tile Vent
