Timloc Roll Out Dry Fix Ventilated Ridge, Black: 6m or 10m

Timloc Roll Out Dry Fix Ventilated Ridge, Black: 6m or 10m

Convenient 1-pack mechanical fix solution for roof ridge installations. Designed for use with most types of slate, concrete or clay roof ridge tiles. Suitable for use on new build and existing roof applications.

Faster, cleaner, and generally safer alternative to traditional mortar installation methods.

Helps to meet BS5534 code of practice for slating and tiling and BS5250 code of practice for control of condensation in buildings.

Use

• Most types of slate, concrete or clay roof tiles
• Round or angled ridge tiles
• Most pitched roof types from 15-55°
• New build and retro-fit projects
• Fixing screws, washers and clamping plates
• Ridge union with integrated clips compatible with ridge tiles up to 18mm thickness
• Universal ridge batten strap for ease and flexibility
• Long lasting, reliable and virtually maintenance free
• Protects against wind uplift, water ingress and general deterioration
• Provides 5000mm²/m (5mm continuous) ridge ventilation
• Easy, fast, clean and generally safer mortar free installation
• Can be installed in virtually all wet and cold weather conditions
• Water resistant yet air permeable membrane roll
• Strong, malleable and corrosion resistant aluminium flashing secured to roll
• 55mm wide ridge union provides additional water bar protection
• Assurance of stainless steel clamping plates
• Maintains consistently smart appearance
• Not impacted by building settlement
• Helps prevent entry of large insects, birds and vermin into the roofline

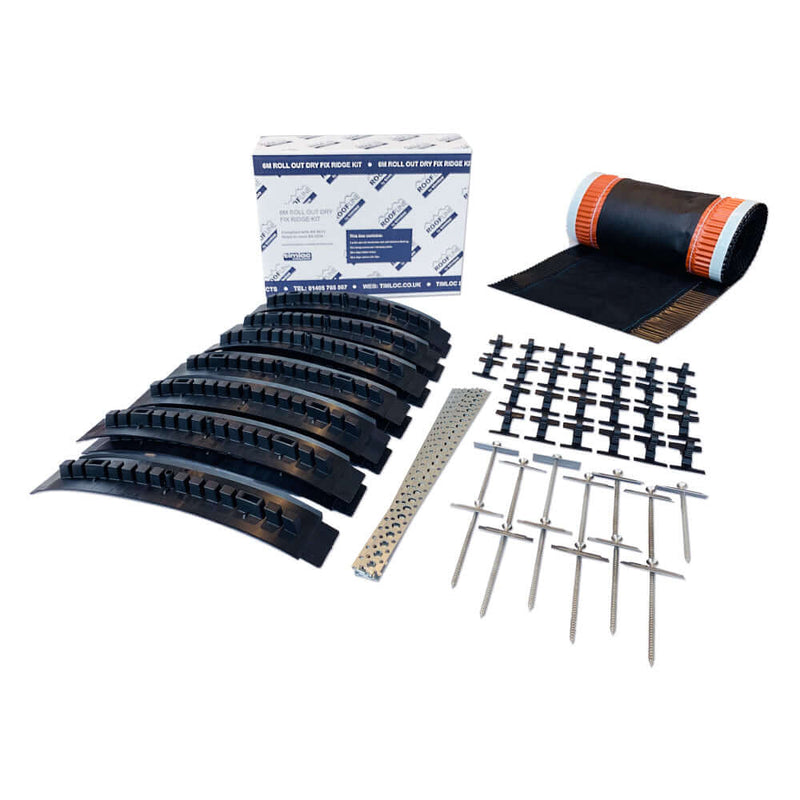

6m Integrated Dry Ridge Kit

• 1 x 6m vent roll membrane with self-adhesive flashing

• 13 x fixing screws, washers and clamping plates

• 13 x ridge unions with integrated clips

• 10 x ridge batten straps

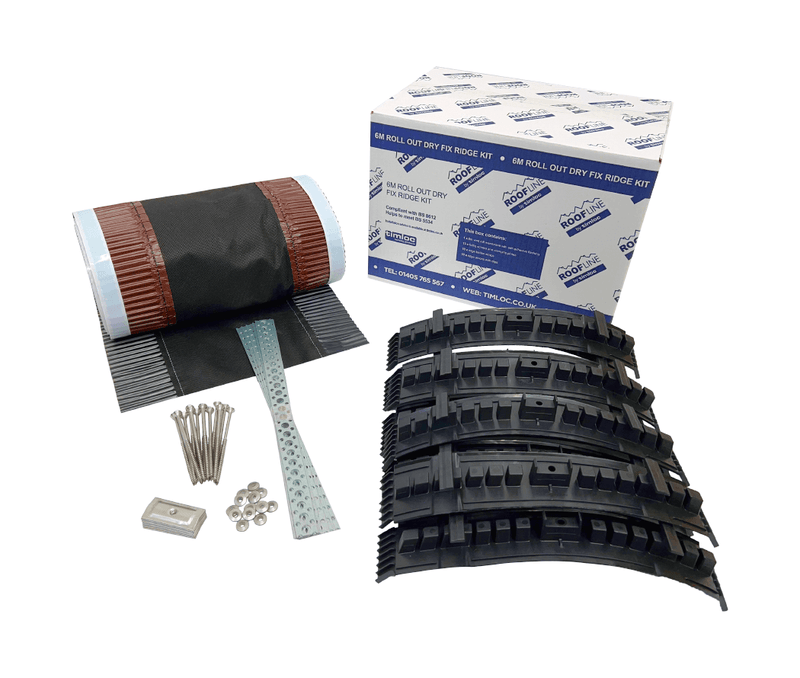

10m Integrated Dry Ridge Kit

• 1 x 10m vent roll membrane with self-adhesive flashing

• 26 x fixing screws, washers and clamping plates

• 26 x ridge unions with integrated clips

• 20 x ridge batten straps

Datasheet:

Timloc-Building-Products-Datasheet-3m-6m-10m-Integrated-Dry-Ridge-Kit.pdf
