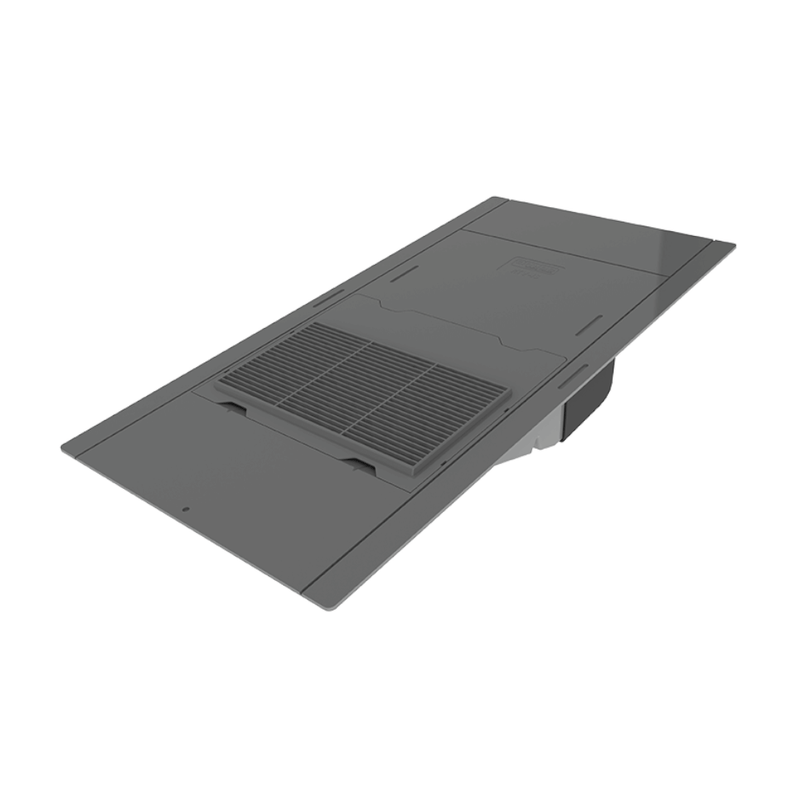

Timloc Inline Slate Vent, Black

Timloc Inline Slate Vent: Black

Inline Slate Vent to enable ventilation directly into a roof space or connect to a ducted ventilation system. Timloc Building Products has been serving the building industry for over 50 years. They are committed to sustainable manufacturing with 75% of products are made from recycled plastics. Their products are designed for use throughout the lifespan of a building and are recyclable at the end of the building life.

Features & Benefits

• Suitable for roofs with a minimum pitch of 22.5°

• Free ventilation area of 9,450mm2

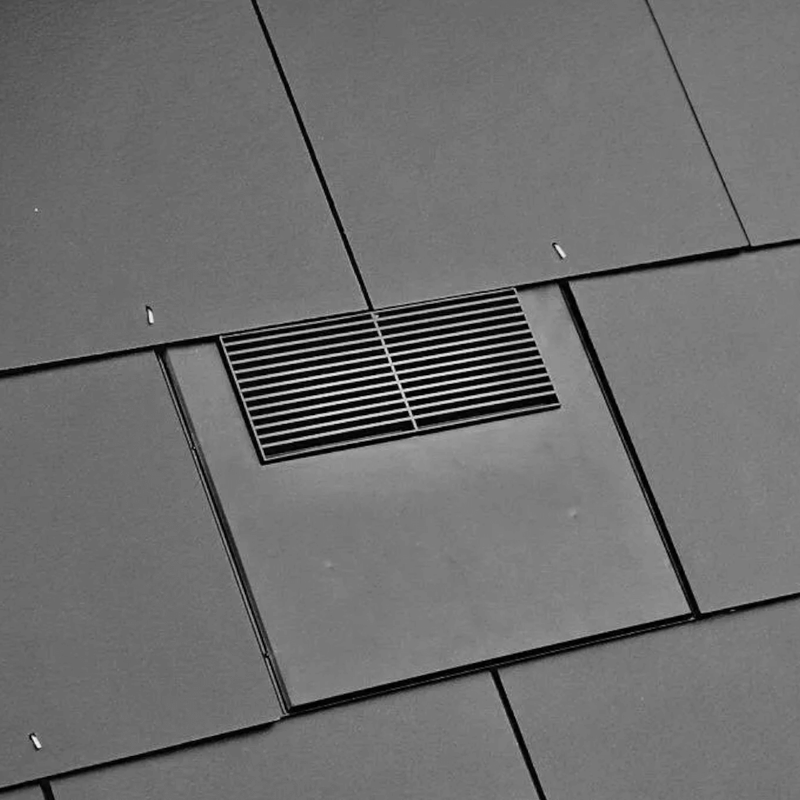

• Sized to replace one slate to provide a continuous visual appearance along the
  roof when viewed at all levels

• Shaped to manage and channel rainwater back down onto the roof tiles and
  away from the vent opening

• Provides a 110mm duct connection as standard with the optional RTV-ADIS
  duct adapter

• 4mm spaced external grille to prevent rainwater ingress and keep out large
  insects, vermin and debris

• Lightweight and easy to handle


Relevant Standards

• BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall
  cladding - product specifications (+A1:2017)

• BS 5250: 2021 Management of moisture in buildings – Code of practice

• BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code
  of practice (+A2:2018)

• Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015

• Complies with all relevant sections of the Building Regulations 2010

• Satisfies all relevant NHBC requirements


Compatibility

Natural or Synthetic slates in sizes 600mm x 300mm or 500mm x 250mm from
all major manufacturers.

Material and Colour Choice

• Injection moulded Polypropylene with textured finish

• Available in Black

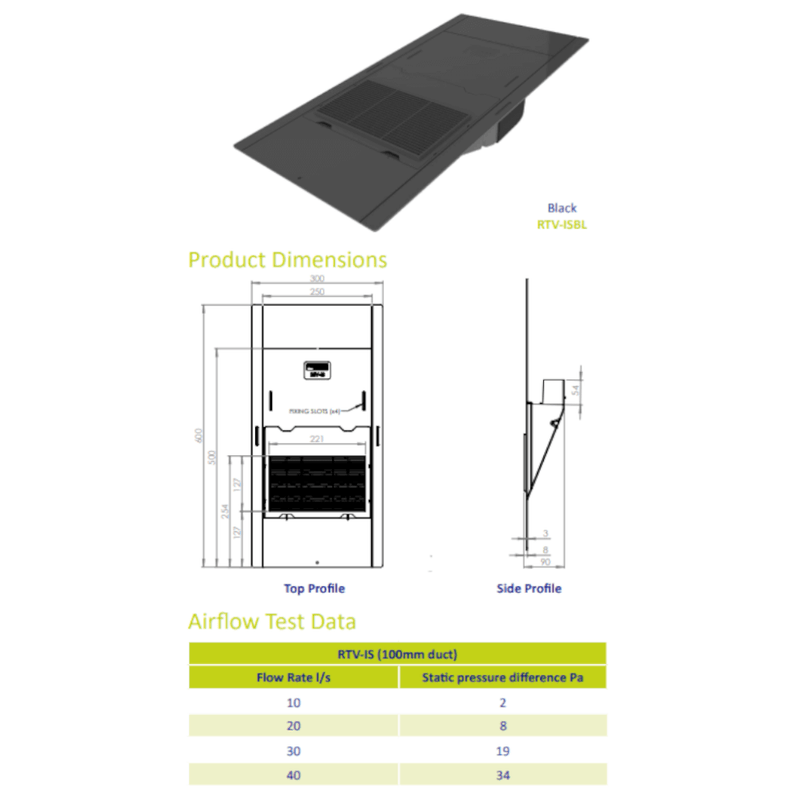

Datasheet

Timloc Sale Vent Inline
